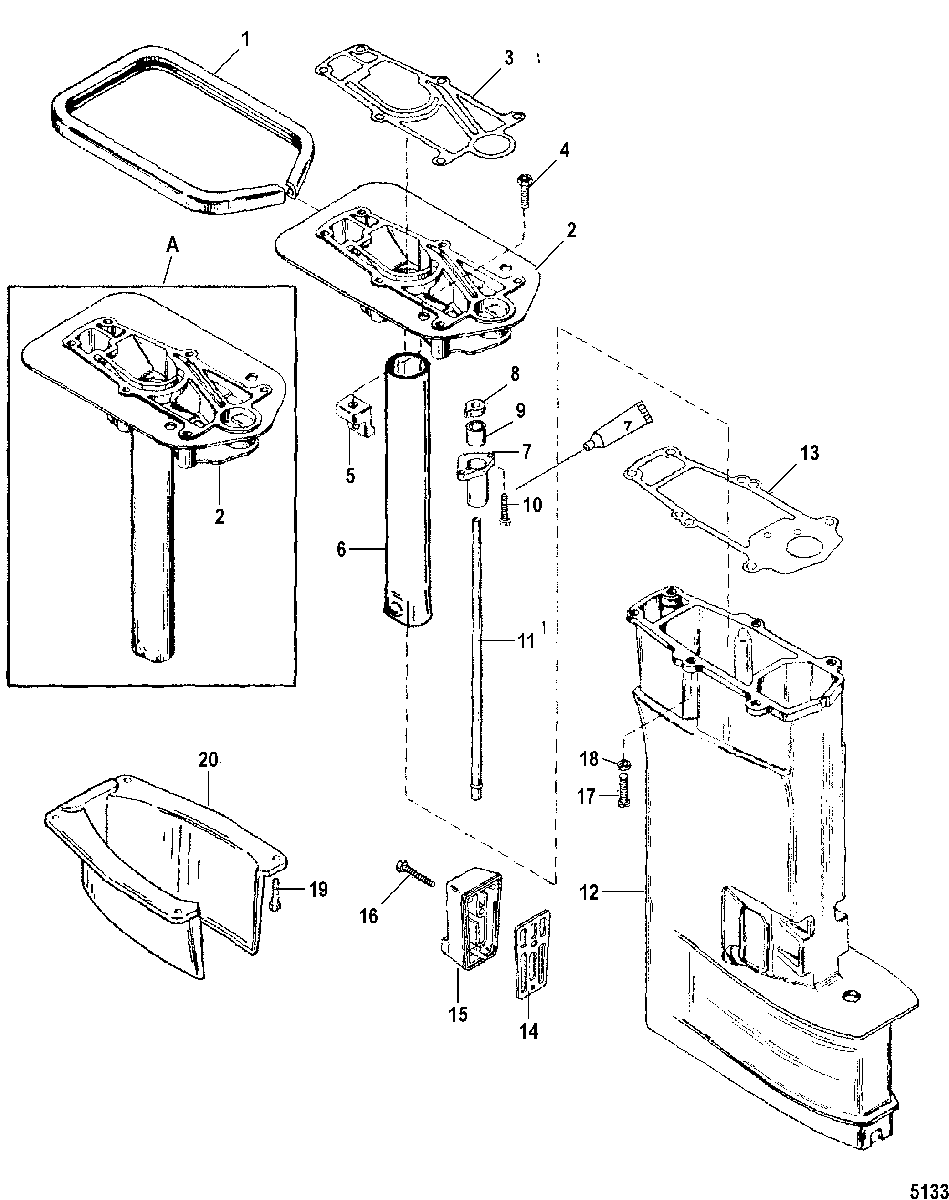

Driveshaft Housing Assembly для Mercury - 25 (2 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    158664 SEAL, Adaptor Plate
    SEAL, Adaptor Plate
  • 2
    99702A7 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 3
    27-41670006 GASKET, Adaptor Plate
    GASKET, Adaptor Plate
  • 4
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 5
    41211 BRACKET
    BRACKET
  • 6
    NSS NOT SOLD SEPARATE, Exhaust Tube
    NOT SOLD SEPARATE, Exhaust Tube
  • 7
    96248A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 8
    23-889715 SPACER, Water Tube
    SPACER, Water Tube
  • 9
    26-25329 SEAL
    SEAL
  • 10
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 11
    32-85116 TUBE, Water
    (Short Shaft)
    TUBE, Water
    (Short Shaft)
  • 11
    32-86292 TUBE, Water
    (Long Shaft)
    TUBE, Water
    (Long Shaft)
  • 11
    32-862921 TUBE, Water
    (Long Shaft)(Heavy Duty)
    TUBE, Water
    (Long Shaft)(Heavy Duty)
  • 12
    1588-9097T5 HOUSING ASSEMBLY, Driveshaft
    (Black-Short Shaft)
    HOUSING ASSEMBLY, Driveshaft
    (Black-Short Shaft)
  • 12
    1588-9098T5 HOUSING ASSEMBLY, Driveshaft
    (Black-Long Shaft)
    HOUSING ASSEMBLY, Driveshaft
    (Black-Long Shaft)
  • 13
    27-433374 GASKET, Drive Shaft Housing
    GASKET, Drive Shaft Housing
  • 14
    27-14621 GASKET
    GASKET
  • 15
    14534 COVER
    COVER
  • 16
    10-14742 SCREW, (.250-20 x 1.25)
    SCREW, (.250-20 x 1.25)
  • 17
    10-1993870 SCREW, (M8 x 70)
    SCREW, (M8 x 70)
  • 18
    12-4002317 WASHER
    WASHER
  • 19
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 20
    17258T TRIM COVER
    (Black)
    TRIM COVER
    (Black)
  • -
    27-41499A88 GASKET SET
    GASKET SET
  • -
    804946T02 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
