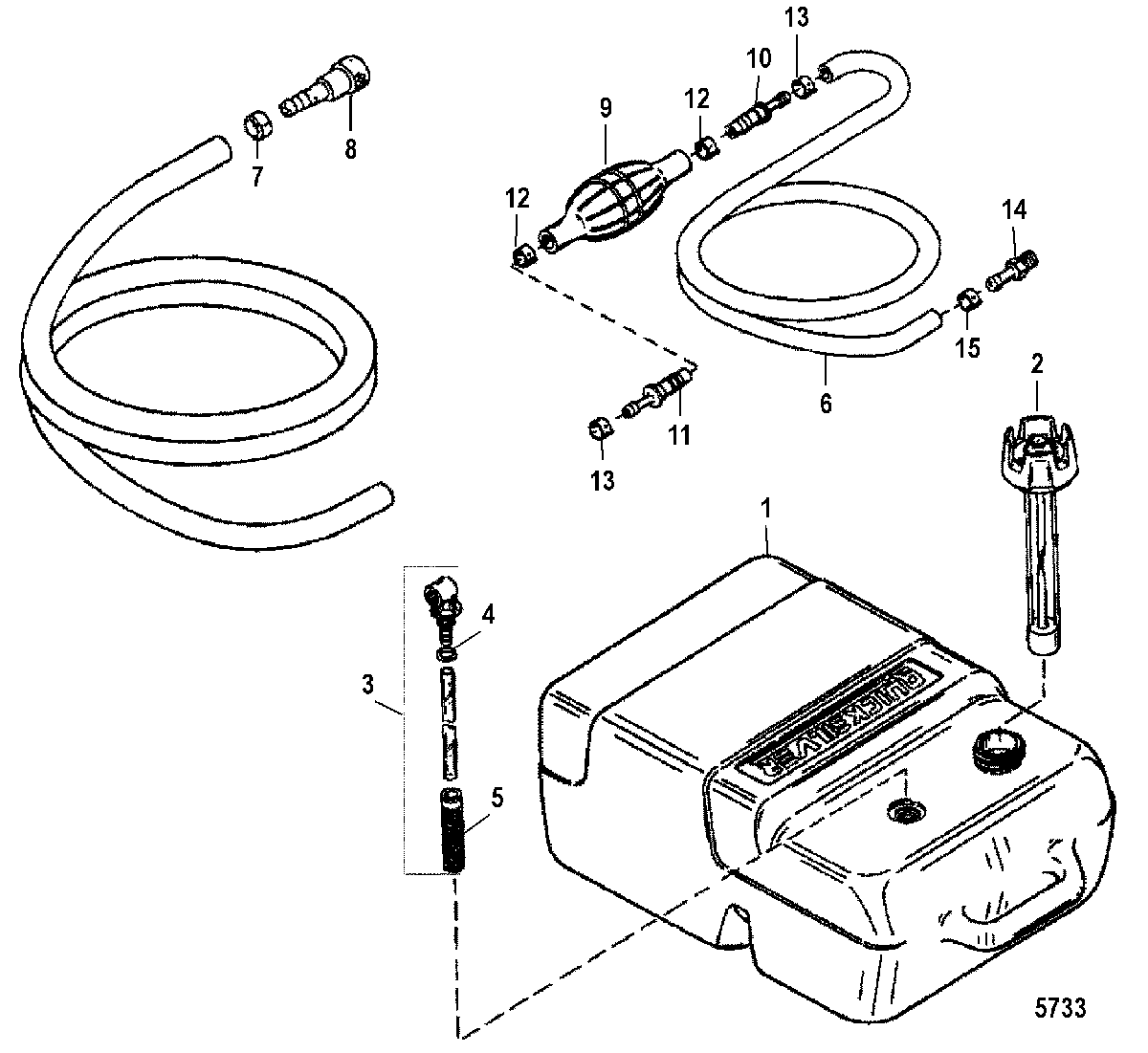

Fuel Tank(Plastic - 6.6 Gallon) для Mercury - 25 (2 CYL.) (International) 0N018456 THRU 0N055504

  • №
    Артикул
    Название
  • 1
    1259-859063A1 TANK ASSEMBLY, Fuel - Plastic 6.6 Gallon
    TANK ASSEMBLY, Fuel - Plastic 6.6 Gallon
  • 2
    823536 GAUGE/CAP ASSEMBLY
    GAUGE/CAP ASSEMBLY
  • 3
    22-823532A1 CONNECTOR KIT, Fuel
    CONNECTOR KIT, Fuel
  • 4
    25-823533 O-RING
    O-RING
  • 5
    35-823534 SCREEN
    SCREEN
  • 6
    32-8M0126969 FUEL LINE ASSEMBLY
    FUEL LINE ASSEMBLY
  • 7
    54-853798 CLAMP
    CLAMP
  • 8
    22-8M0120628 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 9
    13330Q07 BULB ASSEMBLY, Primer
    BULB ASSEMBLY, Primer
  • 10
    21-13331A3 CHECK VALVE ASSEMBLY (Inlet)
    CHECK VALVE ASSEMBLY (Inlet)
  • 11
    21-13331A4 CHECK VALVE ASSEMBLY (Outlet)
    CHECK VALVE ASSEMBLY (Outlet)
  • 12
    54-4158210 CLAMP, Nylon (Large)
    CLAMP, Nylon (Large)
  • 13
    54-41582Q7 CLAMP, Nylon (Small)
    CLAMP, Nylon (Small)
  • 14
    22-89771Q2 CONNECTOR, (.250-18)
    CONNECTOR, (.250-18)
  • 15
    54-41582Q7 CLAMP, Nylon
    CLAMP, Nylon
