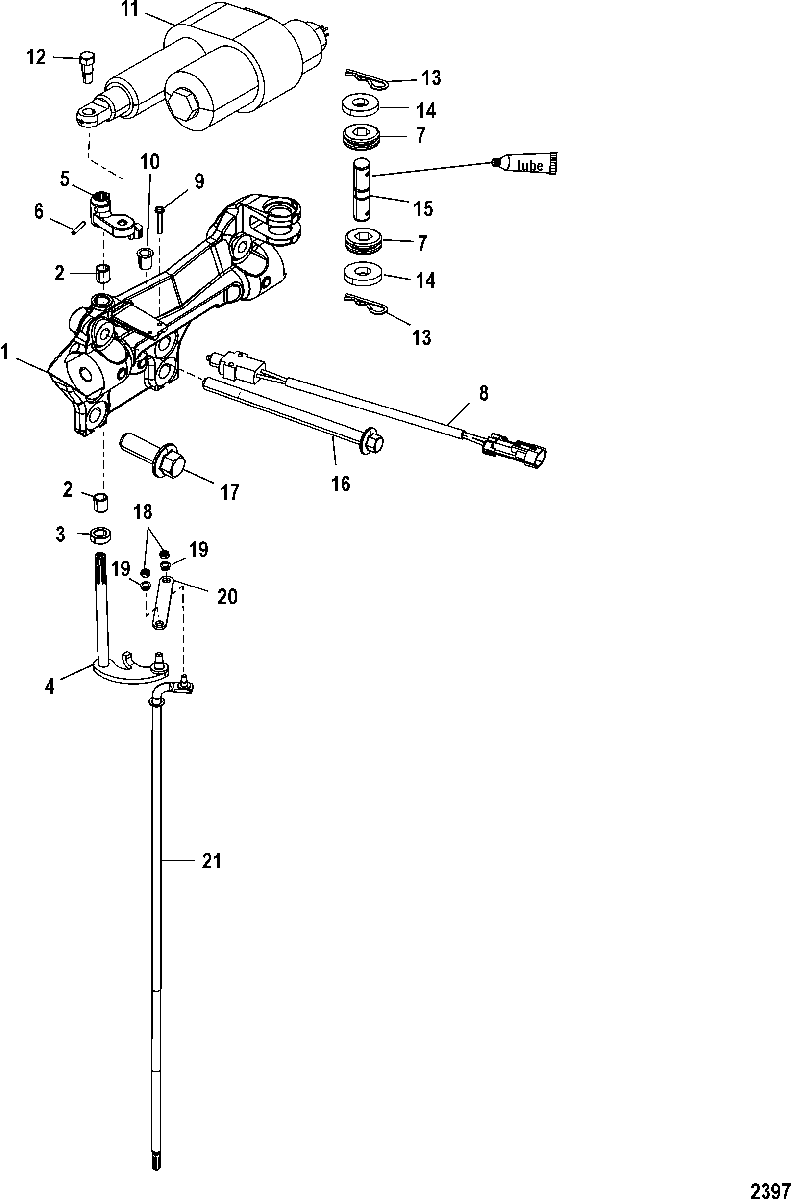

Upper Shift Components для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 0P520553 THRU 2B144122

  • №
    Артикул
    Название
  • -
    8M0103311 BRACKET ASSEMBLY, Front Mount
    BRACKET ASSEMBLY, Front Mount
  • 1
    NSS NOT SOLD SEPARATE, Bracket
    NOT SOLD SEPARATE, Bracket
  • 2
    23-892417 BUSHING
    BUSHING
  • 3
    23-8M0047763 SPACER
    SPACER
  • 4
    8M0047949 SHIFT SHAFT
    SHIFT SHAFT
  • 5
    889727001 BELL CRANK
    BELL CRANK
  • 6
    17-25319 PIN, (.125 x 0.75 Inches)
    PIN, (.125 x 0.75 Inches)
  • 7
    25-833155 GROMMET
    GROMMET
  • 8
    87-8M0052939 SWITCH
    SWITCH
  • 9
    10-88075020 SCREW, (M3 x 20)
    SCREW, (M3 x 20)
  • 10
    23-85999 BUSHING
    BUSHING
  • 11
    8M0124413 SHIFT ACTUATOR
    SHIFT ACTUATOR
  • 12
    10-8855091 SCREW
    SCREW
  • 13
    18-885512 COTTER PIN
    COTTER PIN
  • 14
    12-885511003 WASHER
    WASHER
  • 15
    17-895770 Pin, Pivot
    Pin, Pivot
  • 16
    10-895811155 SCREW, (M10 x 155)
    SCREW, (M10 x 155)
  • 17
    10-8M0103802 SCREW, (M14)
    SCREW, (M14)
  • 18
    11-8M0045046 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 19
    23-97896 BUSHING
    BUSHING
  • 20
    885505 LINK, Shift Shaft
    LINK, Shift Shaft
  • 21
    8M0048178 SHAFT, Shift (Long)
    (Long)
    SHAFT, Shift (Long)
    (Long)
  • 21
    8M0048179 SHIFT SHAFT, (X-Long)
    (X-Long) SN# 1B716259 & Below
    SHIFT SHAFT, (X-Long)
    (X-Long) SN# 1B716259 & Below
  • 21
    8M0048179 SHAFT, Shift (X-Long)
    (X-Long) SN# 1B716260 & Up
    SHAFT, Shift (X-Long)
    (X-Long) SN# 1B716260 & Up
  • 21
    8M0048180 SHIFT SHAFT, (XX-Long)
    (XX-Long) SN# 1B733306 & Below
    SHIFT SHAFT, (XX-Long)
    (XX-Long) SN# 1B733306 & Below
  • 21
    8M0048180 SHAFT, Shift (XX-Long)
    SN# 1B733307 & Up
    SHAFT, Shift (XX-Long)
    SN# 1B733307 & Up
