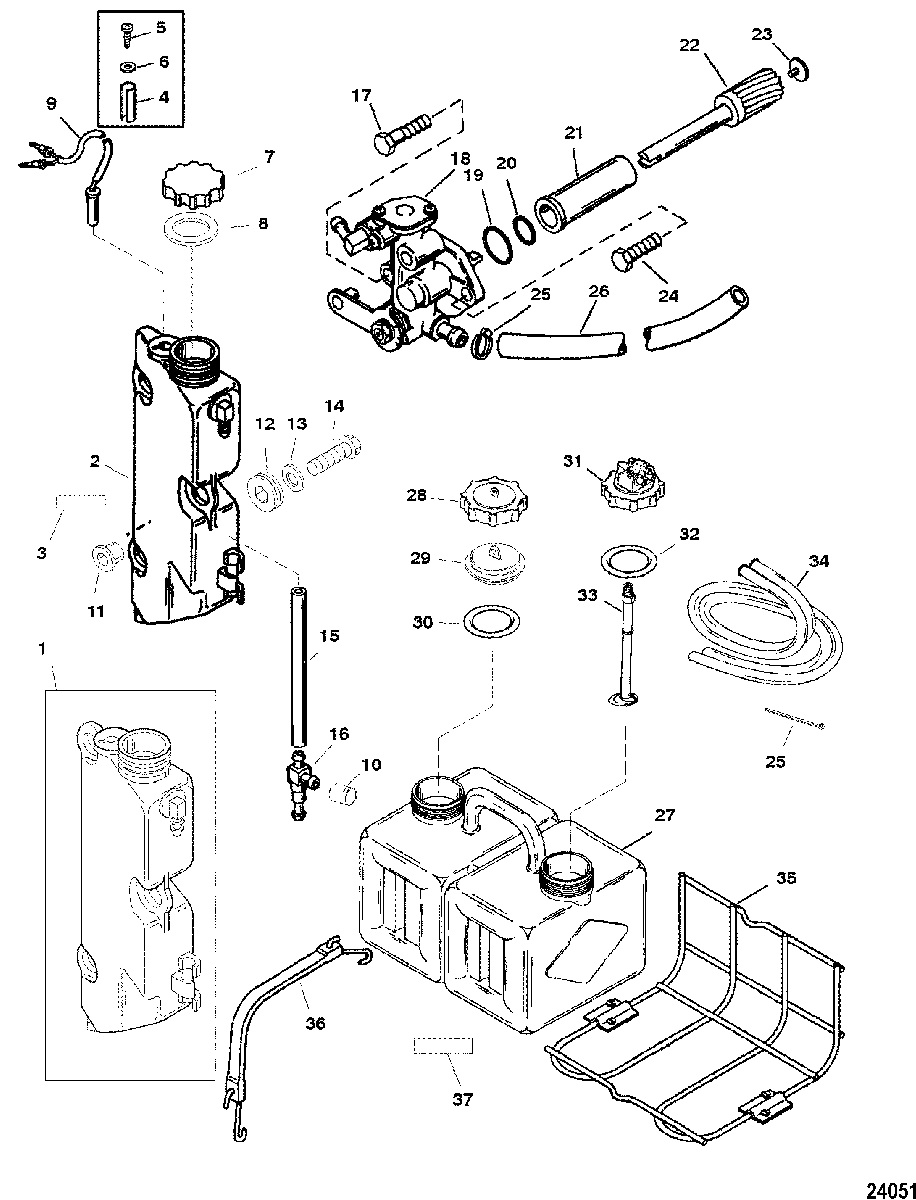

OIL INJECTION COMPONENTS для Mercury - 225 SEAPRO (3.0L CARB) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    1270-830889A1 TANK ASSEMBLY, Oil
    SN# 0G960499 & Below
    TANK ASSEMBLY, Oil
    SN# 0G960499 & Below
  • 2
    1270-818456A1 TANK ASSEMBLY, Oil
    SN# 0G960500 & Up
    TANK ASSEMBLY, Oil
    SN# 0G960500 & Up
  • 3
    NSS NOT SOLD SEPARATE, Decal-Oil Tank
    NOT SOLD SEPARATE, Decal-Oil Tank
  • 4
    23-8260841 SPACER
    SPACER
  • 5
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 6
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 7
    36-814449A3 CAP ASSEMBLY
    CAP ASSEMBLY
  • 8
    27-42999T GASKET
    GASKET
  • 9
    87-12886A7 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 10
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 11
    23-19064 BUSHING
    BUSHING
  • 12
    25-825380001 GROMMET
    GROMMET
  • 13
    12-49436 WASHER
    WASHER
  • 14
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 15
    32-8M0108355 HOSE, (57.00 Inches Bulk) (10 IN.)
    SN# 0G960500 & Up
    HOSE, (57.00 Inches Bulk) (10 IN.)
    SN# 0G960500 & Up
  • 15
    32-8M0108355 HOSE, (57.00 Inches Bulk) (8 IN.)
    SN# 0G960499 & Below
    HOSE, (57.00 Inches Bulk) (8 IN.)
    SN# 0G960499 & Below
  • 16
    22-424254 FITTING
    FITTING
  • 17
    10-82104530 SCREW (M5 X 30)
    SCREW (M5 X 30)
  • 18
    815536T1 PUMP, Oil
    PUMP, Oil
  • 19
    25-11379 O-RING
    O-RING
  • 20
    25-48462 O-RING, (.614 x .070)
    O-RING, (.614 x .070)
  • 21
    23-817631 BEARING, Driven Gear
    BEARING, Driven Gear
  • 22
    43-430204 GEAR, Driven
    GEAR, Driven
  • 23
    816974 BEARING, Thrust
    BEARING, Thrust
  • 24
    10-82104520 SCREW, (M5 x 20) (M5 X 20)
    SCREW, (M5 x 20) (M5 X 20)
  • 25
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 26
    32-82381455 TUBING, (25.00 Inches Bulk) (8-3/4 IN.)
    TUBING, (25.00 Inches Bulk) (8-3/4 IN.)
  • 27
    1257-87421 TANK
    TANK
  • 28
    36-43298A2 CAP ASSEMBLY
    CAP ASSEMBLY
  • 29
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 30
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 31
    816190A4 HOUSING ASSEMBLY, Adapter
    HOUSING ASSEMBLY, Adapter
  • 32
    25-11332 O-RING, (2.225 x .210)
    O-RING, (2.225 x .210)
  • 33
    32-99802 TUBE
    TUBE
  • 34
    32-99439 HOSE, (114.00 Inches)
    HOSE, (114.00 Inches)
  • 35
    12335A1 BRACKET KIT
    BRACKET KIT
  • 36
    12323A1 CORD/HOOK KIT
    CORD/HOOK KIT
  • 37
    NSS NOT SOLD SEPARATE, Decal-Caution Remote Tank
    NOT SOLD SEPARATE, Decal-Caution Remote Tank
