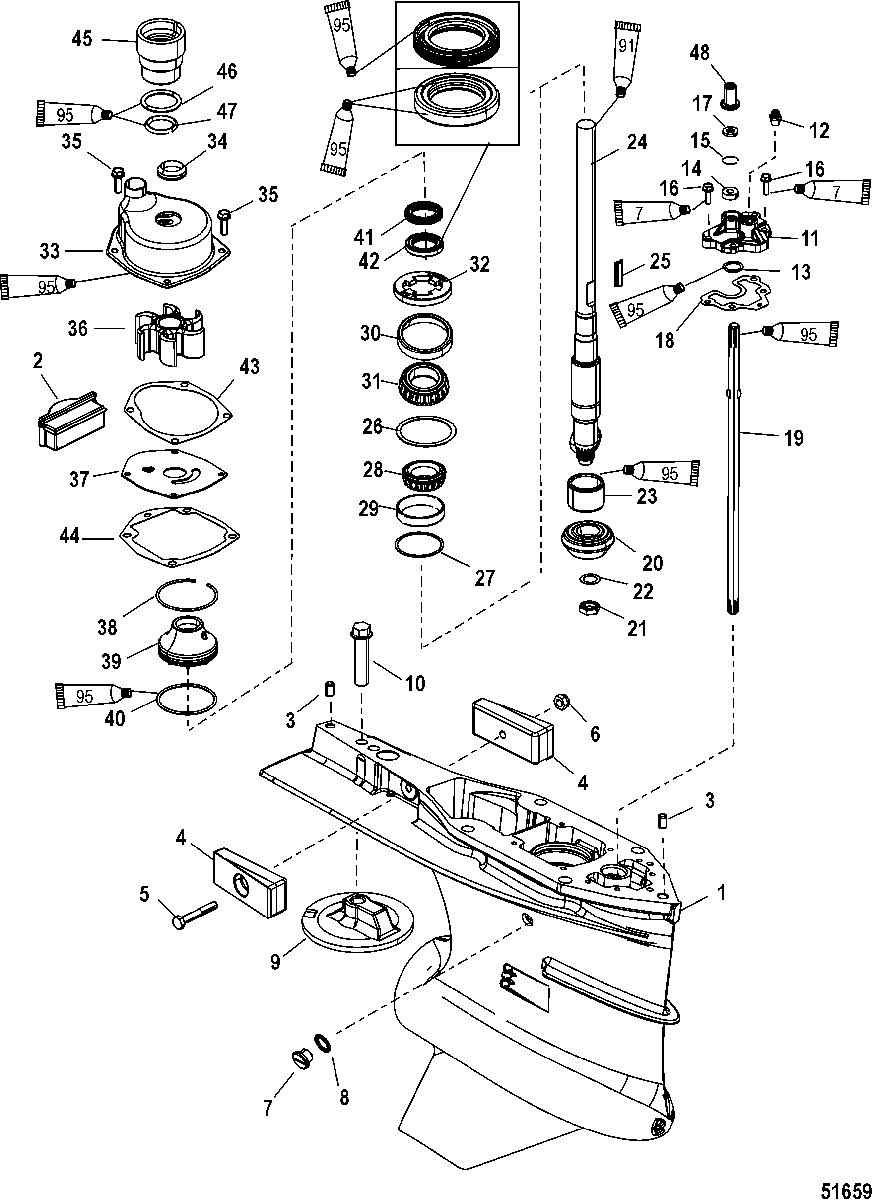

Gear Housing, Driveshaft, Torque Master 2, SN-1B97344 & up для Mercury - 225 PRO XS (3.0L DFI) 1B752547 & Up

  • №
    Артикул
    Название
  • -
    1600-8M0075782 GEAR HOUSING ASSEMBLY, Complete, Long
    GEAR HOUSING ASSEMBLY, Complete, Long
  • 1
    1600-8M0075791 GEAR HOUSING ASSEMBLY, Basic
    GEAR HOUSING ASSEMBLY, Basic
  • 2
    8M0010459 FILLER BLOCK
    FILLER BLOCK
  • 3
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    PIN, Dowel - Without Hole (.375 x .625)
  • 4
    97-826134Q ANODE
    ANODE
  • 5
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 6
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 7
    10-79953A04 PLUG ASSEMBLY, (.375-16 x .250)
    Vent
    PLUG ASSEMBLY, (.375-16 x .250)
    Vent
  • 8
    26-830749 SEAL
    SEAL
  • 9
    97-76214T5 ANODE KIT
    Mercury
    ANODE KIT
    Mercury
  • 9
    97-76214Q5 ANODE KIT
    Quicksilver
    ANODE KIT
    Quicksilver
  • 10
    10-806327 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 11
    8M0047129 COVER ASSEMBLY
    COVER ASSEMBLY
  • 12
    22-881866 FITTING
    FITTING
  • 13
    25-896522 O-RING, (799 x .103)
    O-RING, (799 x .103)
  • 14
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 15
    53-8M0046563 RETAINING RING
    RETAINING RING
  • 16
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 17
    12-77674 WASHER
    WASHER
  • 18
    27-880729 GASKET
    GASKET
  • 19
    824145 SHIFT SHAFT
    SHIFT SHAFT
  • 20
    NSS NOT SOLD SEPARATE, Pinion Gear
    Part of 43-892595A04
    NOT SOLD SEPARATE, Pinion Gear
    Part of 43-892595A04
  • 21
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 22
    12-92721 WASHER
    WASHER
  • 23
    31-42647A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 24
    45-895079T DRIVESHAFT, Long
    DRIVESHAFT, Long
  • 25
    28-8M0032833 KEY, Also a Component of Water Pump Housing
    KEY, Also a Component of Water Pump Housing
  • 26
    15-8M0063267 SHIM SET
    SHIM SET
  • 27
    15-8M0063268 SHIM SET
    SHIM SET
  • 28
    31-48939A2 BEARING, Tapered Roller
    BEARING, Tapered Roller
  • 29
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 30
    31-36387A1 BEARING ASSEMBLY, Roller/Cup
    BEARING ASSEMBLY, Roller/Cup
  • 31
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 32
    8245191 RETAINER
    RETAINER
  • 33
    817275A09 HOUSING, Water Pump-Complete
    HOUSING, Water Pump-Complete
  • 34
    26-861415A1 SEAL KIT
    SEAL KIT
  • 35
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 36
    47-43026T2 IMPELLER
    IMPELLER
  • 37
    8172761 FACEPLATE
    FACEPLATE
  • 38
    53-880719 RING, Retaining
    RING, Retaining
  • 39
    8M0007131 CARRIER ASSEMBLY, Oil Seal
    CARRIER ASSEMBLY, Oil Seal
  • 40
    25-896523 O-RING, (2.175 x .103)
    O-RING, (2.175 x .103)
  • 41
    NSS NOT SOLD SEPARATE, Oil Seal
    NOT SOLD SEPARATE, Oil Seal
  • 42
    NSS NOT SOLD SEPARATE, Oil Seal
    NOT SOLD SEPARATE, Oil Seal
  • 43
    27-8172771 GASKET
    GASKET
  • 44
    27-8M0112903 GASKET
    GASKET
  • 45
    832942A1 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 46
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 47
    25-21836 O-RING, (.796 x .139)
    O-RING, (.796 x .139)
  • 48
    43585 COUPLING
    COUPLING
  • -
    26-8M0077244 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
  • -
    817275A08 REPAIR KIT, Water Pump-Upper
    REPAIR KIT, Water Pump-Upper
