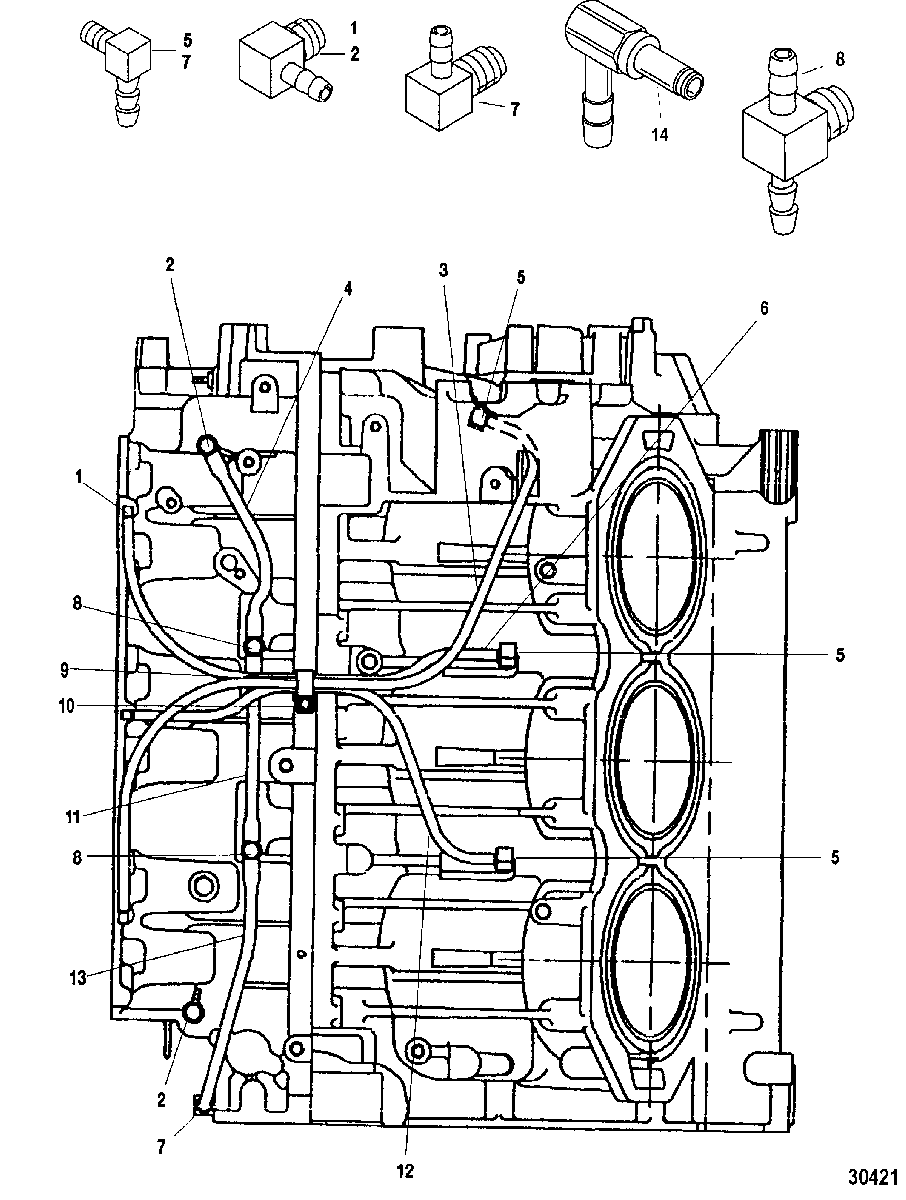

PORT CENTER MAIN OILING SYSTEM для Mercury - 225 (DFI) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    SN# 0T409000 & Up
    FITTING, Elbow 90 Degree (.0625-27)
    SN# 0T409000 & Up
  • 2
    22-887801 FITTING, Elbow 90 Degree (.0625-27)
    FITTING, Elbow 90 Degree (.0625-27)
  • 3
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 20-1/2 IN.
    TUBING, (36.00 Inches Bulk), Cut to 20-1/2 IN.
  • 4
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 5 IN.
    TUBING, (36.00 Inches Bulk), Cut to 5 IN.
  • 5
    21-8592352 CHECK VALVE, 90 Degree (.0625-27)
    CHECK VALVE, 90 Degree (.0625-27)
  • 6
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 13 IN.
    TUBING, (36.00 Inches Bulk), Cut to 13 IN.
  • 7
    21-8282182 CHECK VALVE
    CHECK VALVE
  • 8
    21-8582362 CHECK VALVE
    CHECK VALVE
  • 9
    54-23567 CLIP
    CLIP
  • 10
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 11
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 4-3/4 IN.
    TUBING, (36.00 Inches Bulk), Cut to 4-3/4 IN.
  • 12
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 11 IN.
    TUBING, (36.00 Inches Bulk), Cut to 11 IN.
  • 13
    32-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 9 IN.
    TUBING, (36.00 Inches Bulk), Cut to 9 IN.
  • 14
    22-151333 FITTING
    SN# 0T408999 & Below
    FITTING
    SN# 0T408999 & Below
  • -
    877869A01 POWERHEAD ASSEMBLY
    (225)
    POWERHEAD ASSEMBLY
    (225)
  • -
    854198R01 POWERHEAD ASSEMBLY
    (200)
    POWERHEAD ASSEMBLY
    (200)
