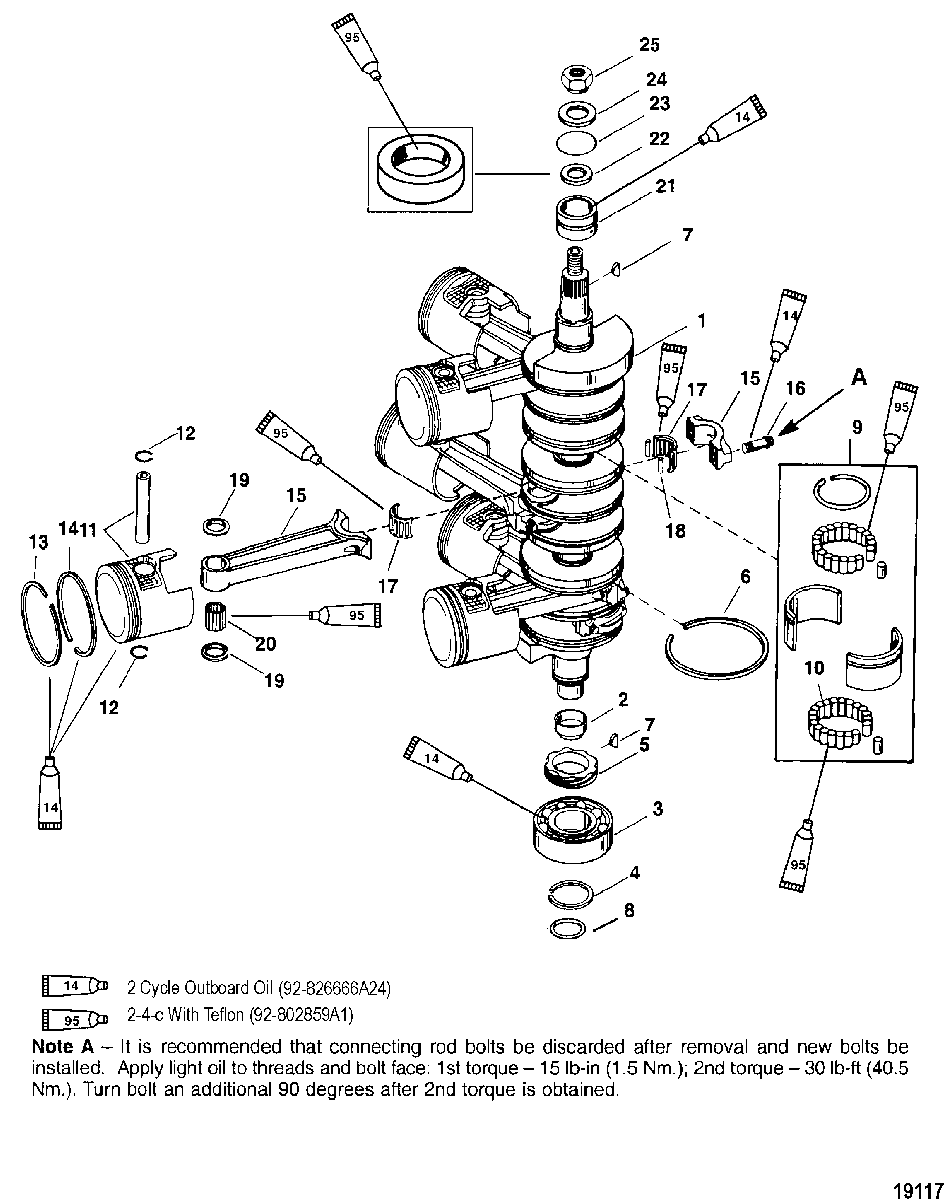

Crankshaft, Pistons and Connecting Rods для Mercury - 225 (3.0L EFI) 0G760300 THRU 0T408999

№

Артикул

Название
1

482-9784A4 CRANKSHAFT
SN# 0T325116 & Below

CRANKSHAFT
SN# 0T325116 & Below
1

482-9784A11 CRANKSHAFT ASSEMBLY
SN# 0T325117 & Up

CRANKSHAFT ASSEMBLY
SN# 0T325117 & Up
2

NSS NOT SOLD SEPARATE, Wear Sleeve

NOT SOLD SEPARATE, Wear Sleeve
3

30-67923T BEARING, Ball (LOWER)

BEARING, Ball (LOWER)
4

53-67446 RING

RING
5

43-19301 GEAR

GEAR
6

39-843198T01 RING

RING
7

28-91800 KEY, Woodruff

KEY, Woodruff
8

25-35126 O-RING, (.859 x .139)

O-RING, (.859 x .139)
9

31-88270A02 RACE ASSEMBLY
SN# 0T325117 & Up

RACE ASSEMBLY
SN# 0T325117 & Up
10

NSS NOT SOLD SEPARATE, Needle Bearing
SN# 0T325117 & Up

NOT SOLD SEPARATE, Needle Bearing
SN# 0T325117 & Up
9

8M0113288 RACE ASSEMBLY, Bearing
SN# 0T325116 & Below

RACE ASSEMBLY, Bearing
SN# 0T325116 & Below
10

NSS NOT SOLD SEPARATE, Roller
SN# 0T325116 & Below

NOT SOLD SEPARATE, Roller
SN# 0T325116 & Below
11

700-858295T14 PISTON
(STBD-STANDARD)

PISTON
(STBD-STANDARD)
11

700-858294T14 PISTON
(PORT-STANDARD)

PISTON
(PORT-STANDARD)
11

700-878572A2 PISTON ASSEMBLY
(STBD -.015 O/S)

PISTON ASSEMBLY
(STBD -.015 O/S)
11

700-878574A2 PISTON ASSEMBLY
(STBD -.030 O/S)

PISTON ASSEMBLY
(STBD -.030 O/S)
11

700-878571A2 PISTON ASSEMBLY
(PORT -.015 O/S)

PISTON ASSEMBLY
(PORT -.015 O/S)
11

700-878573A2 PISTON ASSEMBLY
(PORT -.030 O/S)

PISTON ASSEMBLY
(PORT -.030 O/S)
12

53-8320811 LOCK RING

LOCK RING
13

39-827179A12 RING SET, Piston, With 12 Common Rings
(Standard) SN# 0G960499 & Below

RING SET, Piston, With 12 Common Rings
(Standard) SN# 0G960499 & Below
13

39-875252A12 RING SET, Piston, With 12 Common Rings
(.015 Oversize) SN# 0G960499 & Below

RING SET, Piston, With 12 Common Rings
(.015 Oversize) SN# 0G960499 & Below
13

39-875257A12 RING SET, Piston, With 12 Common Rings
(.030 Oversize) SN# 0G960499 & Below

RING SET, Piston, With 12 Common Rings
(.030 Oversize) SN# 0G960499 & Below
13

39-858772A12 RING SET, Piston, With 6 Each Top and Bottom Rings
(Standard) SN# 0G960500 & Up

RING SET, Piston, With 6 Each Top and Bottom Rings
(Standard) SN# 0G960500 & Up
13

39-875252A12 RING SET, Piston, With 6 Each Top and Bottom Rings
(.015 Oversize) SN# 0G960500 & Up

RING SET, Piston, With 6 Each Top and Bottom Rings
(.015 Oversize) SN# 0G960500 & Up
13

39-875257A12 RING SET, Piston, With 6 Each Top and Bottom Rings
(.030 Oversize) SN# 0G960500 & Up

RING SET, Piston, With 6 Each Top and Bottom Rings
(.030 Oversize) SN# 0G960500 & Up
14

NSS NOT SOLD SEPARATE, Piston Ring (SECOND)

NOT SOLD SEPARATE, Piston Ring (SECOND)
15

600-8M0125869 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY
16

10-94320 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)
17

31-844338A01 BEARING/CAGE KIT

BEARING/CAGE KIT
18

NSS NOT SOLD SEPARATE, Bearing

NOT SOLD SEPARATE, Bearing
19

12-88263 THRUST WASHER

THRUST WASHER
20

29-88258001 NEEDLE, Roller Bearing

NEEDLE, Roller Bearing
21

31-816773A2 BEARING ASSEMBLY (UPPER)

BEARING ASSEMBLY (UPPER)
22

26-859093 SEAL

SEAL
23

25-823683 O-RING, (1.989 x .070)

O-RING, (1.989 x .070)
24

12-33001 WASHER, (.641 x 1.250 x .190)

WASHER, (.641 x 1.250 x .190)
25

11-42979 NUT, (M16)

NUT, (M16)
-

27-814195A93 GASKET SET

GASKET SET
-

809794R97 POWERHEAD ASSEMBLY
(225/250) SN# 0G960499 & Below

POWERHEAD ASSEMBLY
(225/250) SN# 0G960499 & Below
-

804799A00 POWERHEAD ASSEMBLY
(225) SN# 0G960500 & Up

POWERHEAD ASSEMBLY
(225) SN# 0G960500 & Up
-

804800R00 POWERHEAD ASSEMBLY
(250) SN# 0G960500 & Up

POWERHEAD ASSEMBLY
(250) SN# 0G960500 & Up
