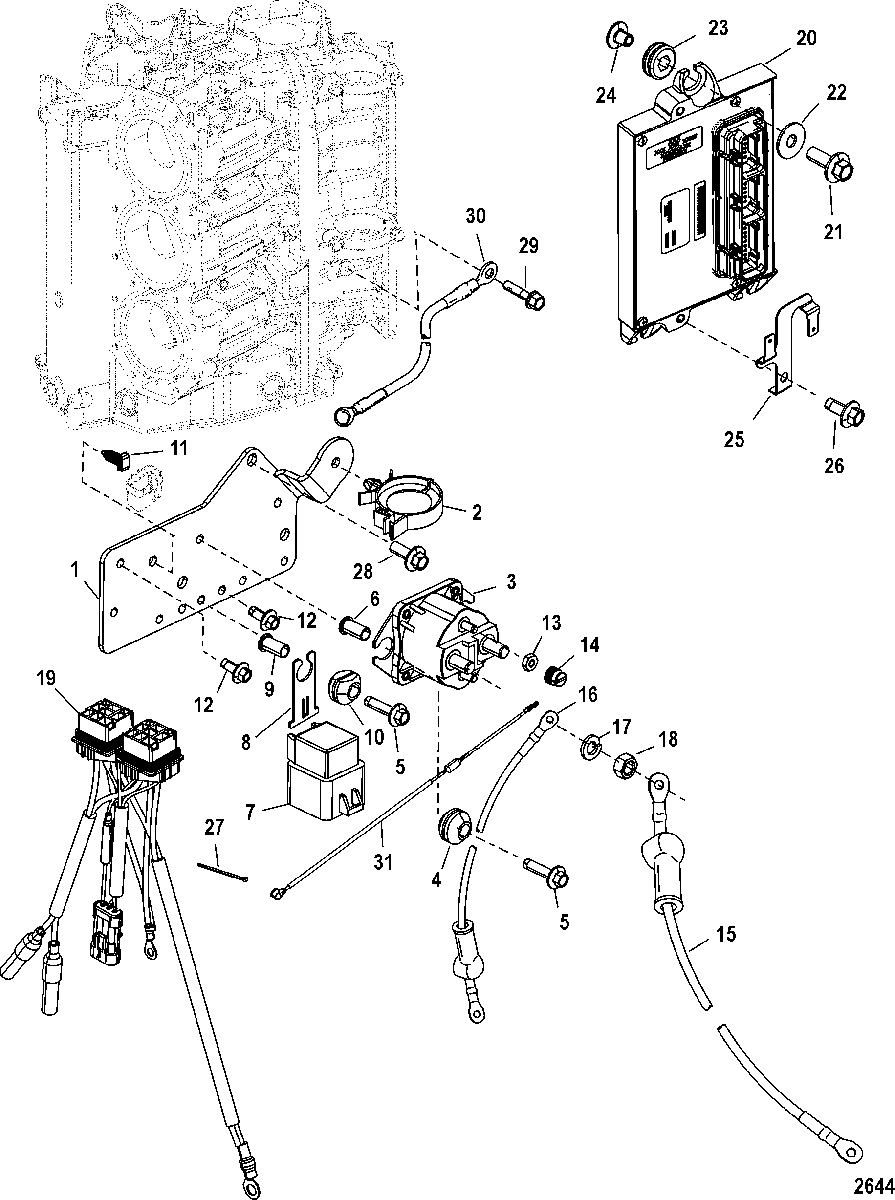

Solenoid Plate для Mercury - 225 (3.0L-DFI)(DTS) 1B417702 THRU 1B504988

  • №
    Артикул
    Название
  • 1
    858366T2 PLATE
    PLATE
  • 2
    54-858755 CLIP, (1.00)
    CLIP, (1.00)
  • 3
    89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
    SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
  • 4
    25-822179 GROMMET
    GROMMET
  • 5
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 6
    23-818968 BUSHING
    BUSHING
  • 7
    882751A1 RELAY ASSEMBLY
    RELAY ASSEMBLY
  • 8
    828102 BRACKET
    BRACKET
  • 9
    23-818968 BUSHING
    BUSHING
  • 10
    25-818967 GROMMET
    GROMMET
  • 11
    54-828991T CLIP
    CLIP
  • 12
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 13
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 14
    11-813938 CAP NUT, (#10-32)
    CAP NUT, (#10-32)
  • 15
    84-88439A46 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 16
    84-882829A1 CABLE ASSEMBLY, Starter
    CABLE ASSEMBLY, Starter
  • 17
    13-53166 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 18
    11-68292 NUT, (.312-18)
    NUT, (.312-18)
  • 19
    84-819514A22 HARNESS ASSEMBLY, Trim
    HARNESS ASSEMBLY, Trim
  • 20
    89790701T PCM, Propulsion Control Module
    (200)
    PCM, Propulsion Control Module
    (200)
  • 20
    89790702T PCM, Propulsion Control Module
    (225)
    PCM, Propulsion Control Module
    (225)
  • 21
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 22
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 23
    25-834985 GROMMET
    GROMMET
  • 24
    23-856954 BUSHING
    BUSHING
  • 25
    54-891520001 CLIP
    CLIP
  • 26
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 27
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 28
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 29
    10-81893420 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 30
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 31
    84-878231A6 HARNESS ASSEMBLY, Fuse - 100 Ampere
    HARNESS ASSEMBLY, Fuse - 100 Ampere
