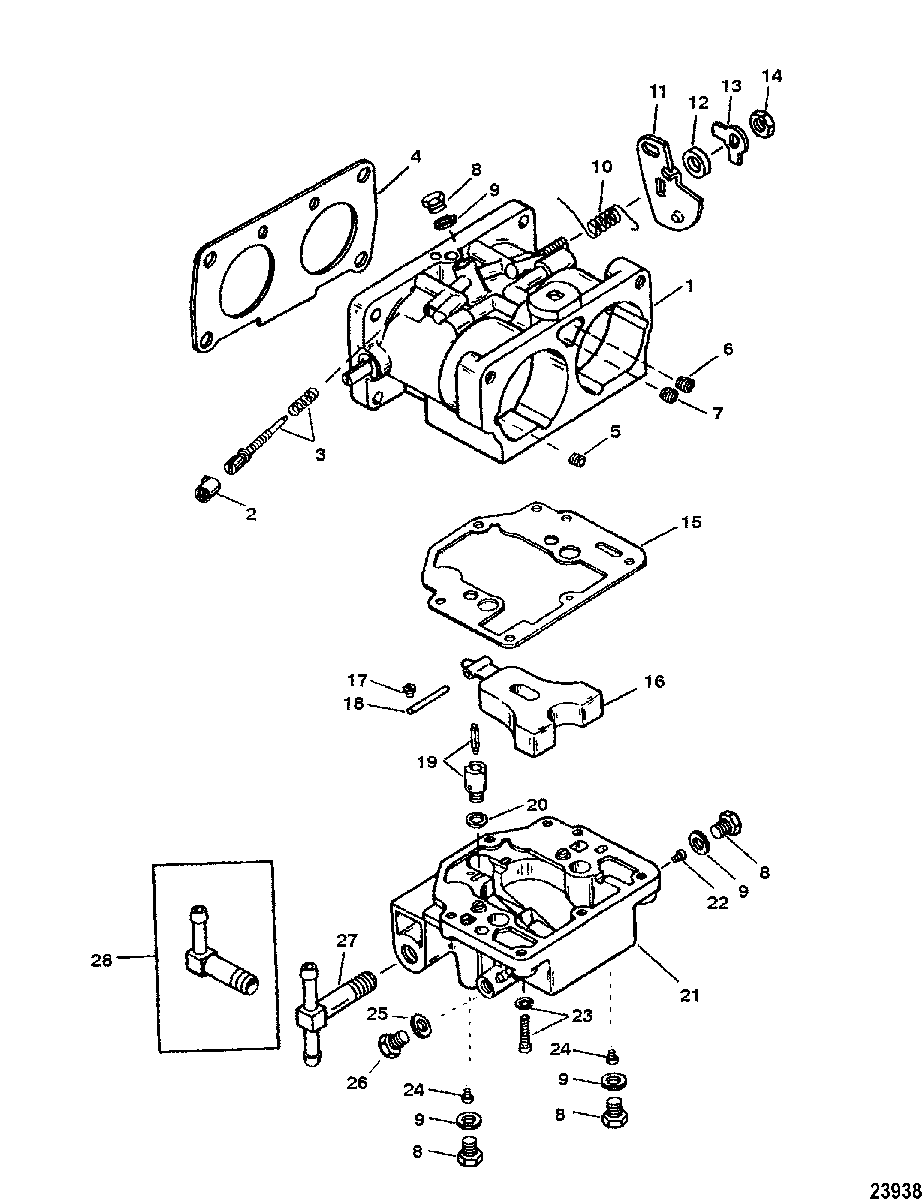

CARBURETOR(SEAPRO/MARATHON) (S/N-0G303045 & BELOW) для Mercury - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
13311-818650A74 CARBURETOR
(TOP)CARBURETOR
(TOP) -
13311-818650A75 CARBURETOR
(CENTER)CARBURETOR
(CENTER) -
13311-818650A76 CARBURETOR
(BOTTOM)CARBURETOR
(BOTTOM) -
2810779 CAPCAP
-
3NSS NOT SOLD SEPARATE, Idle Needle/SpringNOT SOLD SEPARATE, Idle Needle/Spring
-
427-677511 GASKETGASKET
-
5810741 JET, (.030)
(TOP)JET, (.030)
(TOP) -
51399-7570 JET, .040
(CENTER/BOTTOM)JET, .040
(CENTER/BOTTOM) -
61395-6207 JET, (.072)JET, (.072)
-
71395-6359 JET, (.052)
(TOP)JET, (.052)
(TOP) -
71399-5225 JET, Main (.054)
(CENTER/BOTTOM)JET, Main (.054)
(CENTER/BOTTOM) -
81395-811694 PLUGPLUG
-
9NSS NOT SOLD SEPARATE, Gasket-PlugNOT SOLD SEPARATE, Gasket-Plug
-
10NSS NOT SOLD SEPARATE, Spring-Valve ReturnNOT SOLD SEPARATE, Spring-Valve Return
-
11810721 LEVER, Throttle
(TOP/BOTTOM)LEVER, Throttle
(TOP/BOTTOM) -
118107221 LEVER, Throttle
(CENTER)LEVER, Throttle
(CENTER) -
121395-811284 SPACERSPACER
-
1312-810745 WASHERWASHER
-
1411-810744 NUTNUT
-
15NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
16810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
17NSS NOT SOLD SEPARATE, Screw-Float PinNOT SOLD SEPARATE, Screw-Float Pin
-
18F10064 SHAFTSHAFT
-
191395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
20NSS NOT SOLD SEPARATE, Gasket-Vavle SeatNOT SOLD SEPARATE, Gasket-Vavle Seat
-
211395-823628 BOWL, Fuel
(TOP)BOWL, Fuel
(TOP) -
211395-823624 BOWL, Fuel
(CENTER/BOTTOM)BOWL, Fuel
(CENTER/BOTTOM) -
221395-6030 JET, (.070)JET, (.070)
-
231395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
241395-823626 POWER JETPOWER JET
-
25NSS NOT SOLD SEPARATE, Seal-Bowl Drain PlugNOT SOLD SEPARATE, Seal-Bowl Drain Plug
-
2695961 PLUG, Bowl DrainPLUG, Bowl Drain
-
271395-7900 TEE FITTING
(TOP/CENTER)TEE FITTING
(TOP/CENTER) -
281395-7901 ELBOW
(BOTTOM)ELBOW
(BOTTOM) -
-1395-8116912 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
-
-8107492 GASKET KIT, CarburetorGASKET KIT, Carburetor
-
-27-814195A93 GASKET SETGASKET SET
