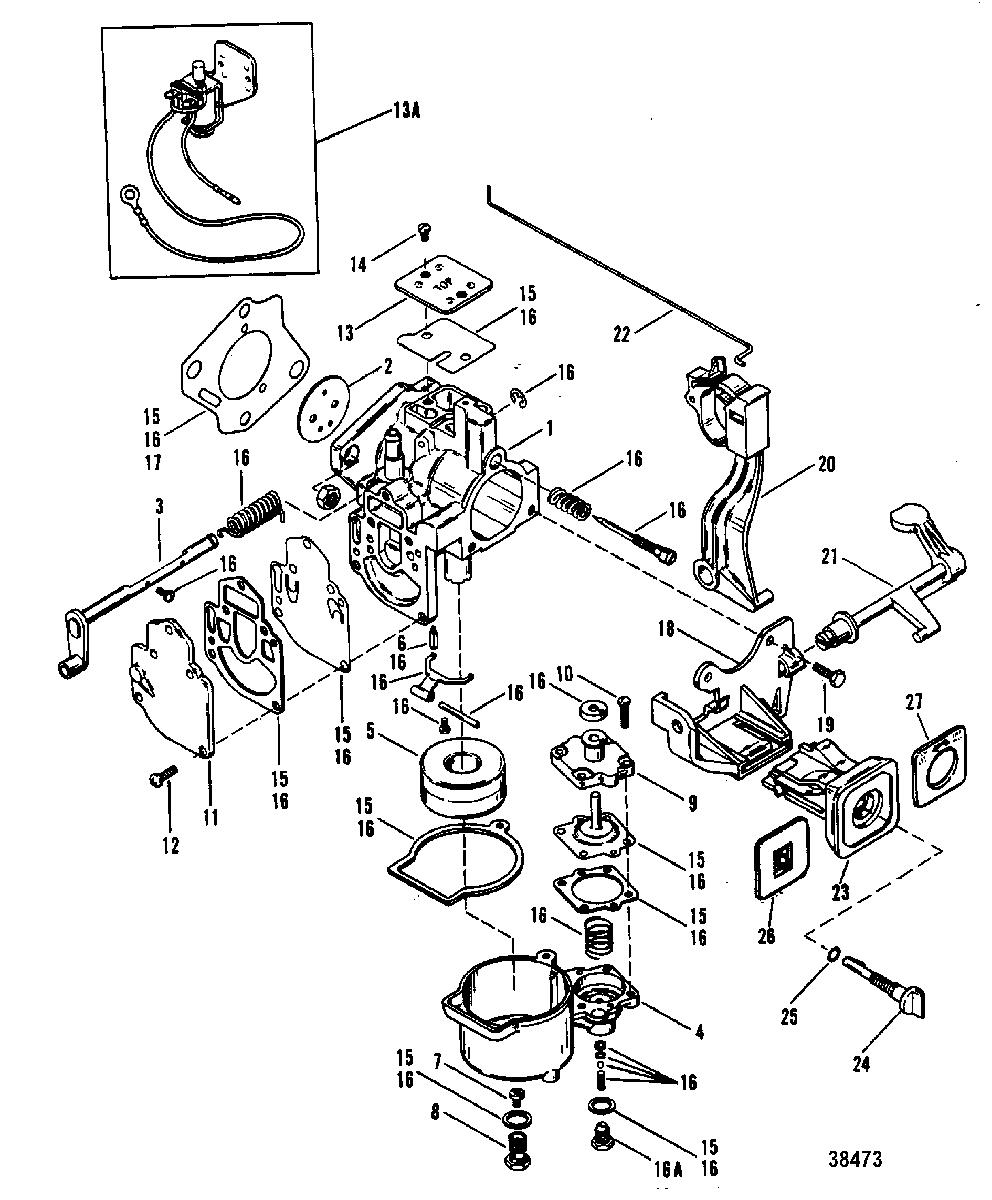

CARBURETOR(WMC-9/10/11/12/24/25/26/27) для Mercury - 20XD (2 CYL.) 7209533 THRU 0A730006

  • №
    Артикул
    Название
  • 1
    1390-8888A16 CARBURETOR
    (18/20-MANUAL-WMC-24)
    CARBURETOR
    (18/20-MANUAL-WMC-24)
  • 1
    1390-8888A16 CARBURETOR
    (18/20-ELECTRIC-WMC-10)
    CARBURETOR
    (18/20-ELECTRIC-WMC-10)
  • 1
    1390-8889A20 CARBURETOR
    (25-MANUAL-WMC-11)
    CARBURETOR
    (25-MANUAL-WMC-11)
  • 1
    1390-8889A20 CARBURETOR
    (25-MANUAL-WMC-26)
    CARBURETOR
    (25-MANUAL-WMC-26)
  • 1
    1390-8677A11 CARBURETOR
    (25-ELECTRIC-WMC-12)
    CARBURETOR
    (25-ELECTRIC-WMC-12)
  • 1
    1390-8677A11 CARBURETOR
    (25-ELECTRIC-WMC-27)
    CARBURETOR
    (25-ELECTRIC-WMC-27)
  • 2
    1395-9168 VALVE, Throttle
    (18/20-WMC-9/10)
    VALVE, Throttle
    (18/20-WMC-9/10)
  • 2
    1395-9640 VALVE, Throttle
    (18/20-WMC-24/25)
    VALVE, Throttle
    (18/20-WMC-24/25)
  • 2
    1395-9180 VALVE, Throttle
    (25-WMC-11/12)
    VALVE, Throttle
    (25-WMC-11/12)
  • 2
    1395-9646 VALVE, Throttle
    (25-WMC-26/27)
    VALVE, Throttle
    (25-WMC-26/27)
  • 3
    1395-9695 SHAFT, Throttle
    SHAFT, Throttle
  • 4
    1395-9164 BOWL, Fuel
    BOWL, Fuel
  • 5
    1395-91691 FLOAT
    FLOAT
  • 6
    1395-803861 VALVE, INLET NEEDLE
    VALVE, INLET NEEDLE
  • 7
    1399-5317 JET, (.046), MAIN FUEL
    (18/20)
    JET, (.046), MAIN FUEL
    (18/20)
  • 7
    1395-6201 JET, (.080)
    (25)
    JET, (.080)
    (25)
  • 8
    1395-9171 PLUG, JET RETAINER
    PLUG, JET RETAINER
  • 9
    813618 COVER, DIPHRAGM
    COVER, DIPHRAGM
  • 10
    1395-9697 SCREW, DIAPRAGM COVER
    SCREW, DIAPRAGM COVER
  • 11
    1395-9702 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 12
    1395-9173 SCREW, FUEL PUMP COVER
    SCREW, FUEL PUMP COVER
  • 13
    1395-9177 PLATE, COVER (MANUAL)
    PLATE, COVER (MANUAL)
  • 13A
    1395-823433 CHOKE, Electric
    CHOKE, Electric
  • 14
    1395-9696 SCREW, COVER PLATE
    SCREW, COVER PLATE
  • 15
    1395-97611 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 16
    1395-96481 REPAIR KIT
    (WMC-9/10/11/12)
    REPAIR KIT
    (WMC-9/10/11/12)
  • 16
    1395-8237072 REPAIR PARTS KIT
    (WMC-24/25/26/27)
    REPAIR PARTS KIT
    (WMC-24/25/26/27)
  • 16A
    1395-879194017 PLUG
    PLUG
  • 17
    27-192061 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 18
    41717T BRACKET, PRIMER
    BRACKET, PRIMER
  • 19
    10-400018 SCREW, (M5 x 12), BRACKET TO CARBURETOR
    SCREW, (M5 x 12), BRACKET TO CARBURETOR
  • 20
    42515A1 LEVER ASSEMBLY, FAST IDLE
    LEVER ASSEMBLY, FAST IDLE
  • 21
    41703 LEVER, PRIMER
    LEVER, PRIMER
  • 22
    12733 IDLE WIRE
    IDLE WIRE
  • 23
    110241 ACTUATOR, PRIMER
    ACTUATOR, PRIMER
  • 24
    11043 KNOB, FAST IDLE - EARLY MARINER MODELS
    KNOB, FAST IDLE - EARLY MARINER MODELS
  • 25
    25-627021 O-RING, (.301 x .070)
    EARLY MARINIER MODELS
    O-RING, (.301 x .070)
    EARLY MARINIER MODELS
  • 26
    12654 INSTRUCTION PLATE
    (MERCURY)
    INSTRUCTION PLATE
    (MERCURY)
  • 27
    12653 INSTRUCTION PLATE
    (MARINER)
    INSTRUCTION PLATE
    (MARINER)
  • -
    27-41499A88 GASKET SET
    GASKET SET
