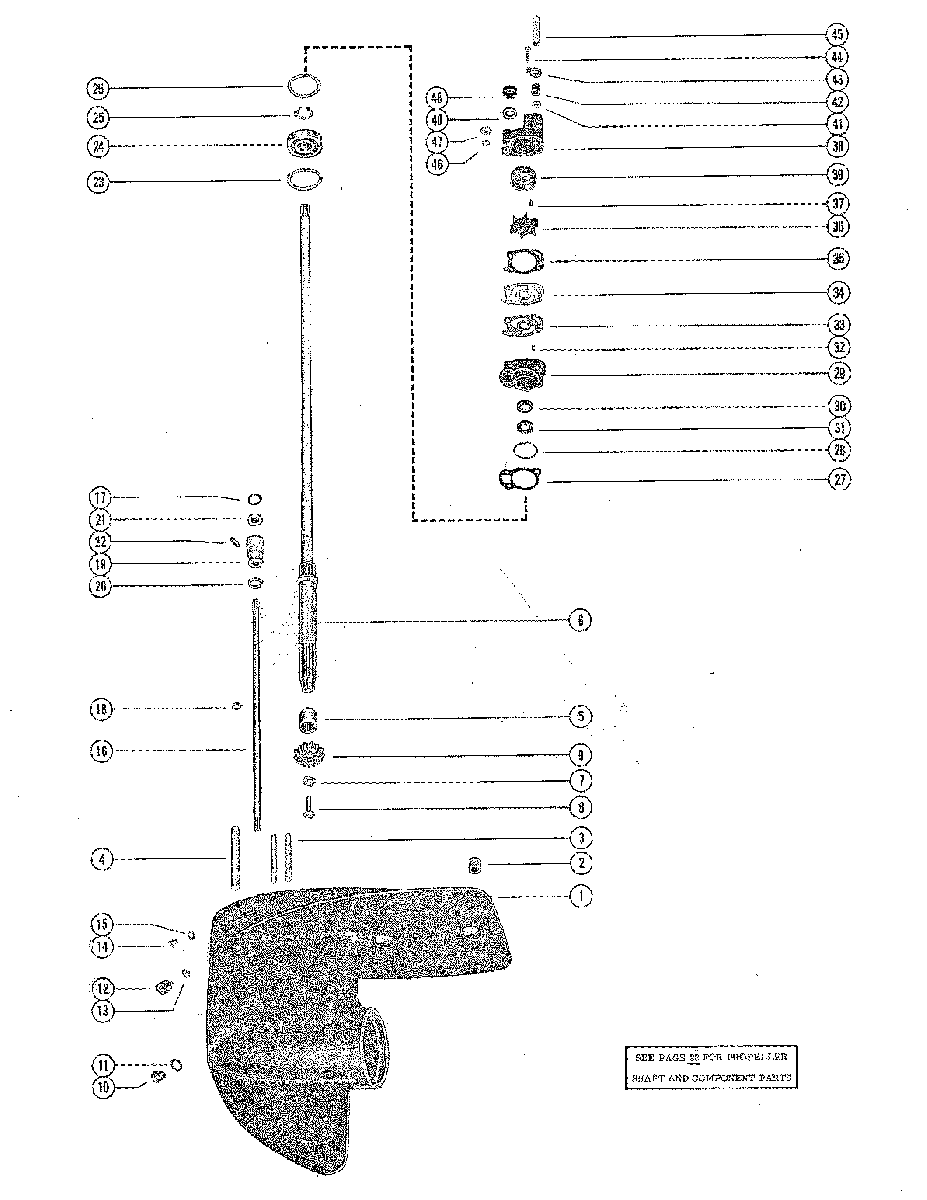

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1) для Mercury - 200 3537531 THRU 4709592

  • №
    Артикул
    Название
  • -
    1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(SHOFT SHAFT)
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
  • -
    1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE(LONG SHAFT)
    UNITED STATES 4102789 AND BELOW
    AUSTRALIA 8026164 AND BELOW
    BELGIUM 9070128 AND BELOW
    CANADA 7044782 AND BELOW
  • -
    1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
  • -
    1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    UNITED STATES 4102790 THRU 4351589
    AUSTRALIA 8026165 THRU 8036049
    BELGIUM 9070129 THRU 9104813
    CANADA 7044783 THRU 7067847
  • -
    1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
  • -
    1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
  • 1
    1627-6006A5 GEAR HOUSING ASSEMBLY
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
  • 1
    1627-6006A5 GEAR HOUSING ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    GEAR HOUSING ASSEMBLY
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
  • 2
    17-20201 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
    PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 3
    16-58137 STUD, WATER PUMP TO GEAR HOUSING (3 1/8")
    STUD, WATER PUMP TO GEAR HOUSING (3 1/8")
  • 4
    16-58135 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (4 13/16")
  • 5
    31-28157 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 6
    45-93300A1 DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    DRIVE SHAFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
  • 6
    45-93301A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
  • 6
    45-93300A1 DRIVE SAHFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    DRIVE SAHFT ASSEMBLY (SHORT SHAFT)
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
  • 6
    45-93301A1 DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    DRIVE SHAFT ASSEMBLY (LONG SHAFT)
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
  • 7
    14-49911 TAB WASHER, PINION GEAR SCREW
    TAB WASHER, PINION GEAR SCREW
  • 8
    10-49908 SCREW, PINION GEAR TO DRIVE SHAFT SCREW (3/4")
    SCREW, PINION GEAR TO DRIVE SHAFT SCREW (3/4")
  • 9
    43-45189 GEAR, PINION
    GEAR, PINION
  • 10
    10-79953Q04 SCREW, GREASE FILLER (1/4")
    SCREW, GREASE FILLER (1/4")
  • 11
    12-191833 WASHER, GREASE FILLER SCREW
    WASHER, GREASE FILLER SCREW
  • 12
    19-48750 PLUG, GEAR HOUSING FLUSHING
    PLUG, GEAR HOUSING FLUSHING
  • 13
    12-49221 WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG
    WASHER, NEOPRENE - GEAR HOUSING FLUSHING PLUG
  • 14
    10-28653 SCREW, GREASE VENT (1/4")
    SCREW, GREASE VENT (1/4")
  • 15
    19643 WASHER, GREASE VENT SCREW
    WASHER, GREASE VENT SCREW
  • 16
    56829A1 SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)
    SHAFT ASSEMBLY, SHIFT - LOWER (SHORT SHAFT)
  • 16
    56830A1 SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT - LOWER (LONG SHAFT)
  • 17
    25-38933 "O" RING, LOWER SHIFT SHAFT
    "O" RING, LOWER SHIFT SHAFT
  • 18
    53-22899 RING, RETAINING - SHIFT SHAFT
    RING, RETAINING - SHIFT SHAFT
  • 19
    23-30676A1 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 20
    25-26802 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 21
    26-30696 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 22
    10-39149 SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")
    SCREW, SHIFT SHAFT BUSHING RETAINER (1/2")
  • 23
    15-20804A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
  • 24
    30-69389 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 25
    53-33463 RING, RETAINING - BALL BEARING
    RING, RETAINING - BALL BEARING
  • 26
    15-20804A1 SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)
    SHIM, GEAR HOUSING TO WATER PUMP BASE (.002-3-5-10)
  • 27
    27-39626 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 28
    25-33466 "O" RING, WATER PUMP BASE
    "O" RING, WATER PUMP BASE
  • 29
    46-48744A1 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 30
    26-20070 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 31
    26-897154 OIL SEAL, WATER PUMP BASE (SPRING LOADED)
    OIL SEAL, WATER PUMP BASE (SPRING LOADED)
  • 32
    17-8M0084627 PIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODY
    PIN, DOWEL - WATER PUMP BASE TO WATER PUMP BODY
  • 33
    27-39625 GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
    GASKET, WATER PUMP BASE TO FACE PLATE (LOWER)
  • 34
    39624 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
  • 35
    27-396231 GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)
    GASKET, FACE PLATE TO WATER PUMP BODY (UPPER)
  • 36
    47-89982 IMPELLER, WATER PUMP - PART OF DRIVE SHAFT ASSEMBLY
    IMPELLER, WATER PUMP - PART OF DRIVE SHAFT ASSEMBLY
  • 37
    28-56661 KEY, IMPELLER DRIVE - PART OF DRIVE SHAFT ASSEMBLY
    KEY, IMPELLER DRIVE - PART OF DRIVE SHAFT ASSEMBLY
  • 38
    46-87458A2 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 39
    48754 INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 40
    26-20070 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 41
    23-86215 WASHER, NYLON - WATER PUMP BODY
    WASHER, NYLON - WATER PUMP BODY
  • 42
    26-25329 SEAL, WATER PUMP BODY
    SEAL, WATER PUMP BODY
  • 43
    45010 RETAINER, WATER PUMP BODY SEAL
    RETAINER, WATER PUMP BODY SEAL
  • 44
    10-455611 SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
    SCREW, SEAL RETAINER TO WATER PUMP BODY (1 1/8")
  • 45
    23-45170 SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 46
    12-36001 WASHER, WATER PUMP STUDS
    WASHER, WATER PUMP STUDS
  • 47
    11-826709111 NUT, WATER PUMP STUDS
    NUT, WATER PUMP STUDS
  • 48
    12-20684 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
