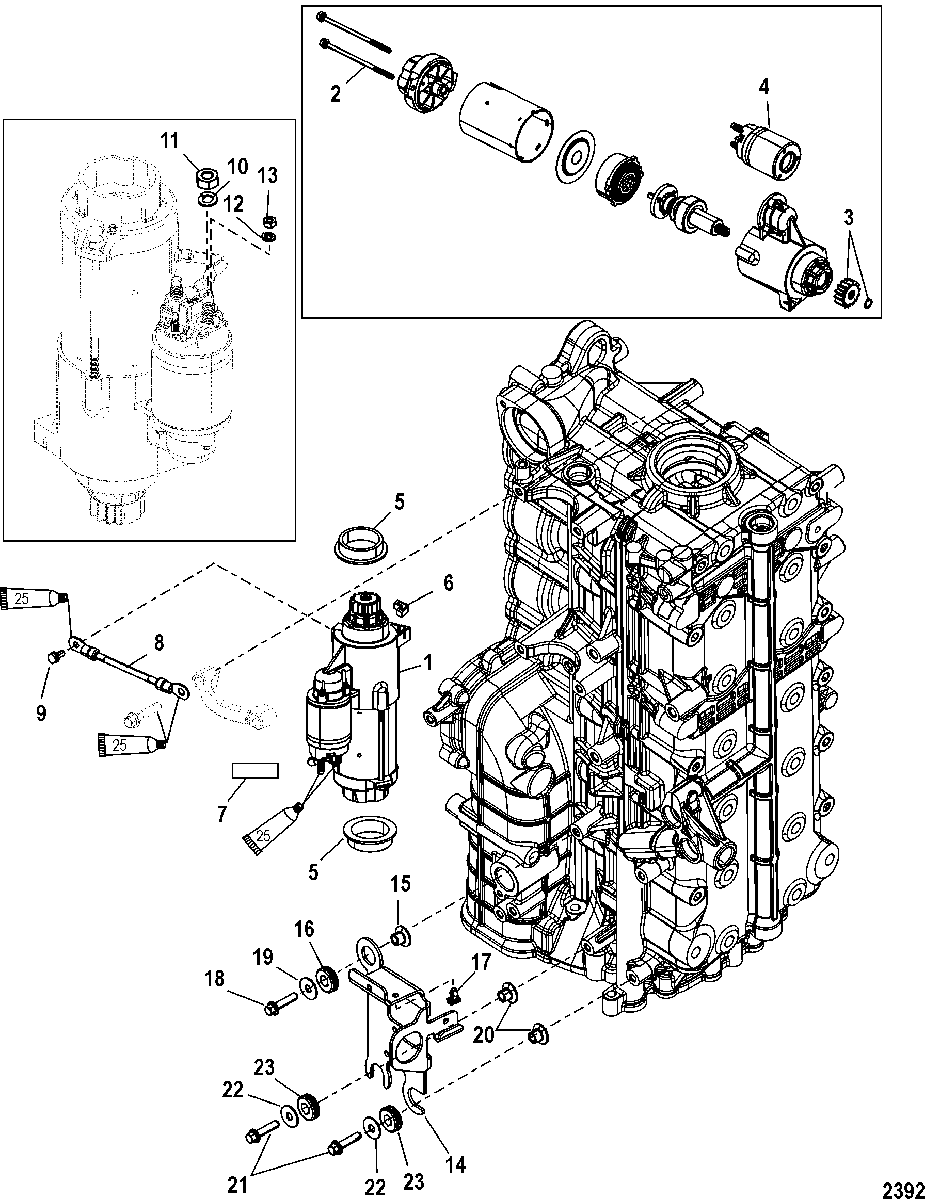

Starter Motor/Electrical Cable Bracket Mounting для Mercury - 200 VERADO (4-STROKE)(6 CYL.) 1B227000 THRU 1B381711

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Starter Motor Assembly
    NOT SOLD SEPARATE, Starter Motor Assembly
  • 1
    50-892339T01 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 3
    43-880805A1 GEAR KIT
    GEAR KIT
  • 4
    809463A1 SOLENOID KIT
    SOLENOID KIT
  • 5
    23-8M0034918 COLLAR
    COLLAR
  • 6
    8M0043276 STOP
    STOP
  • 7
    NSS NOT SOLD SEPARATE, Decal-Waring-High Voltage
    NOT SOLD SEPARATE, Decal-Waring-High Voltage
  • 8
    84-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black
    CABLE ASSEMBLY, (6.00 Inches) Black
  • 9
    10-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
    SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
  • 10
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 11
    11-400213 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 12
    13-400255 LOCKWASHER, (M5)
    LOCKWASHER, (M5)
  • 13
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 14
    889666A01 BRACKET, Electrical Cable
    BRACKET, Electrical Cable
  • 15
    23-8502341 BUSHING
    BUSHING
  • 16
    25-833155 GROMMET
    GROMMET
  • 17
    54-879962 CLIP
    CLIP
  • 18
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 19
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 20
    23-8502341 BUSHING
    BUSHING
  • 21
    10-8M0103814 SCREW, (M8 x 35 MM)
    SCREW, (M8 x 35 MM)
  • 22
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 23
    25-833155 GROMMET
    GROMMET
  • -
    61-895247R06 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
