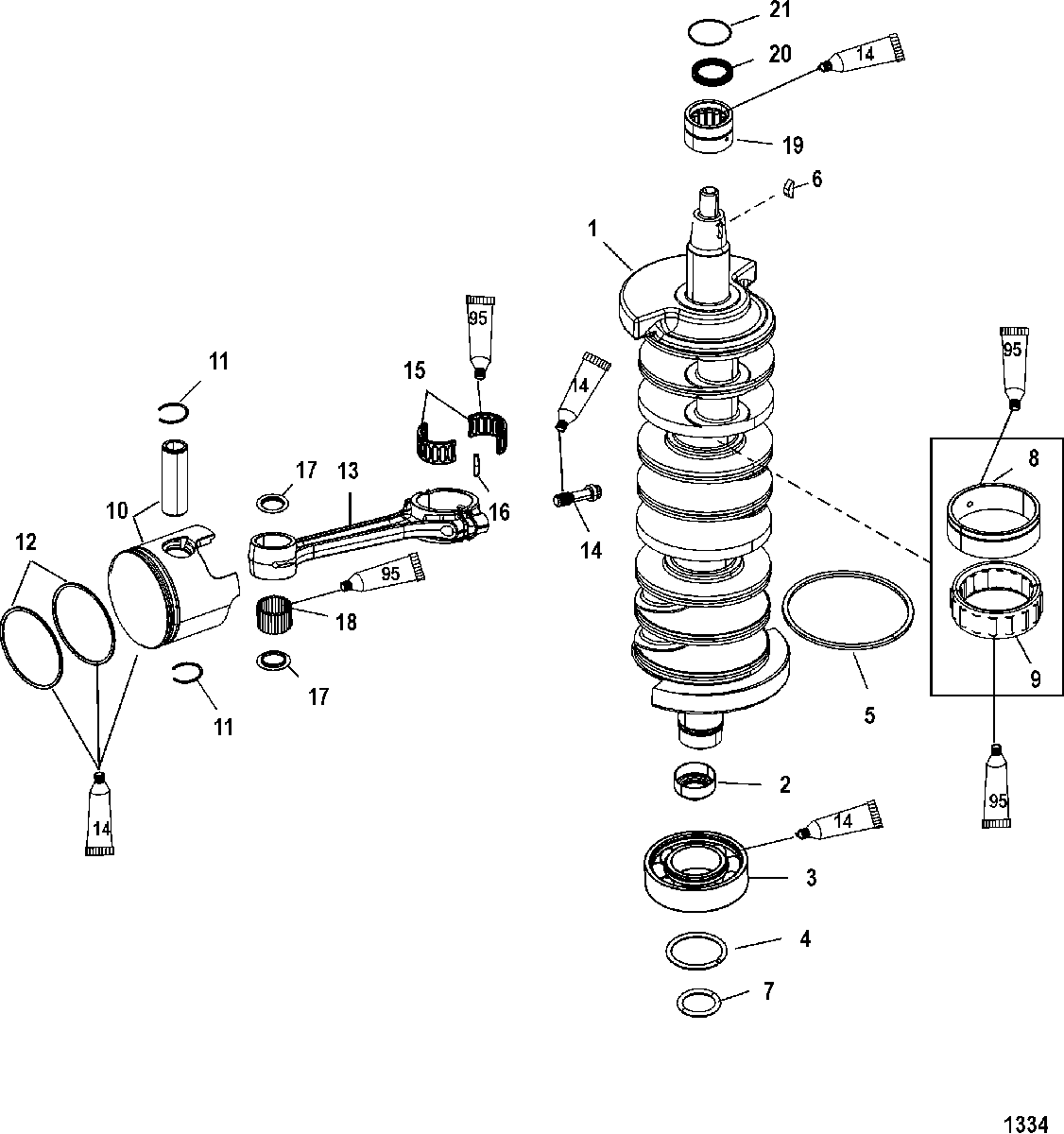

Crankshaft, Pistons and Connecting Rods для Mercury - 200 PRO XS (DFI) 3.0L 1B912786 & Up
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2830882 WEAR SLEEVEWEAR SLEEVE
-
330-67923T BEARING, Ball, LowerBEARING, Ball, Lower
-
453-67446 RINGRING
-
539-843198T01 RING, SealRING, Seal
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 BEARING/RACE KITBEARING/RACE KIT
-
9NSS NOT SOLD SEPARATE, Needle RollerNOT SOLD SEPARATE, Needle Roller
-
102720-881055T10 PISTON ASSEMBLY, Standard - StarboardPISTON ASSEMBLY, Standard - Starboard
-
102720-889640A02 PISTON ASSEMBLY
Starboard - .015 OversizePISTON ASSEMBLY
Starboard - .015 Oversize -
102720-889642A02 PISTON ASSEMBLY
Starboard - .030 OversizePISTON ASSEMBLY
Starboard - .030 Oversize -
102720-881054T10 PISTON ASSEMBLY, Standard - PortPISTON ASSEMBLY, Standard - Port
-
102720-889639A02 PISTON ASSEMBLY
Port - .015 OversizePISTON ASSEMBLY
Port - .015 Oversize -
102720-889641A02 PISTON ASSEMBLY
Port - .030 OversizePISTON ASSEMBLY
Port - .030 Oversize -
1140-841202 RINGRING
-
1239-827179A12 RING SET, Piston
StandardRING SET, Piston
Standard -
1239-875252A12 RING SET, Piston
.015 OversizeRING SET, Piston
.015 Oversize -
1239-875257A12 RING SET, Piston
.030 OversizeRING SET, Piston
.030 Oversize -
13600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1531-844338A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
16NSS NOT SOLD SEPARATE, Needle Roller BearingNOT SOLD SEPARATE, Needle Roller Bearing
-
1712-88263 THRUST WASHERTHRUST WASHER
-
1829-88258001 BEARING, NeedleBEARING, Needle
-
1931-816773A2 BEARING ASSEMBLY, UpperBEARING ASSEMBLY, Upper
-
2026-859093 SEALSEAL
-
2125-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
