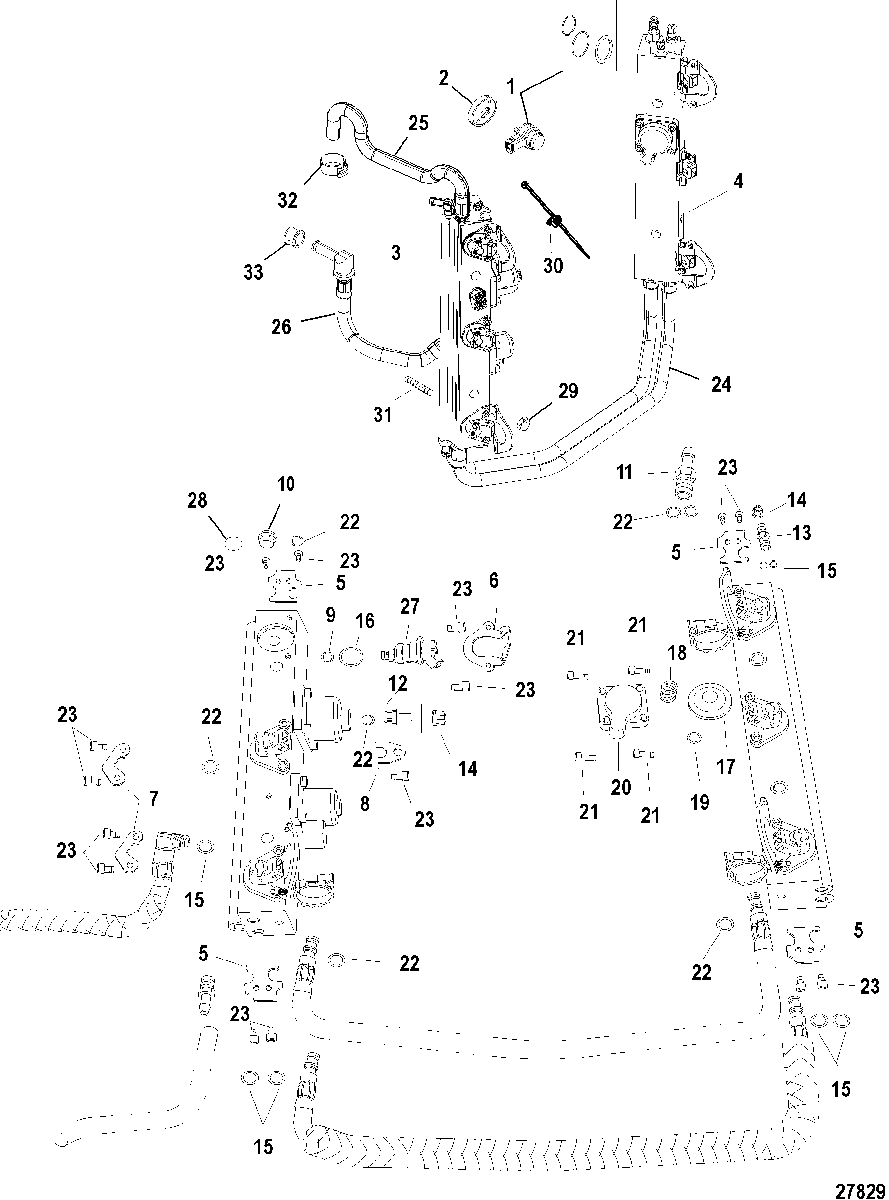

Fuel Rails 200/225/200 Pro XS для Mercury - 200 PRO XS (DFI) 3.0L 1B504989 THRU 1B912785

  • №
    Артикул
    Название
  • 1
    8M6001743 INJECTOR KIT, Air
    INJECTOR KIT, Air
  • -
    26-804875 SEAL KIT
    SEAL KIT
  • 2
    12-828694A1 WASHER ASSEMBLY, Cupped
    WASHER ASSEMBLY, Cupped
  • -
    8M0135409 FUEL RAIL ASSEMBLY, Complete
    FUEL RAIL ASSEMBLY, Complete
  • 3
    NSS NOT SOLD SEPARATE, Fuel Rail - Port
    NOT SOLD SEPARATE, Fuel Rail - Port
  • 4
    NSS NOT SOLD SEPARATE, Fuel Rail - Starboard
    NOT SOLD SEPARATE, Fuel Rail - Starboard
  • 5
    54-804830 CLAMP
    CLAMP
  • 6
    54-8048311 CLAMP
    CLAMP
  • 7
    54-804832 CLAMP
    CLAMP
  • 8
    8M0041097 CLAMP
    CLAMP
  • 9
    25-804529 O-RING KIT
    O-RING KIT
  • 10
    19-804835 PLUG
    PLUG
  • 11
    22-804836 FITTING
    FITTING
  • 12
    804837 VALVE ASSEMBLY, (.5 Inch Diameter)
    VALVE ASSEMBLY, (.5 Inch Diameter)
  • 13
    8M0047053 VALVE ASSEMBLY, (.375 Inch Diameter)
    VALVE ASSEMBLY, (.375 Inch Diameter)
  • 14
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 15
    25-804840 O-RING KIT
    O-RING KIT
  • 16
    25-804530 O-RING KIT
    O-RING KIT
  • 17
    804533 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 18
    24-804534 SPRING
    SPRING
  • 19
    25-804536 O-RING
    O-RING
  • 20
    804535001 COVER
    COVER
  • 21
    804526 SCREW PACKAGE, (M5 x 16) (2 Per)
    SCREW PACKAGE, (M5 x 16) (2 Per)
  • 22
    804532 O-RING KIT, 16 per kit
    O-RING KIT, 16 per kit
  • 23
    10-8M0041100 SCREW PACKAGE, (2 Per)(M5 x 10)
    SCREW PACKAGE, (2 Per)(M5 x 10)
  • 24
    32-8M6005520 HOSE, Fuel Balance
    HOSE, Fuel Balance
  • 25
    8M6003283 HOSE, Fuel Supply, To Vapor Separator
    HOSE, Fuel Supply, To Vapor Separator
  • 26
    32-8M6001363 HOSE, Fuel By Pass
    HOSE, Fuel By Pass
  • 27
    804528 INJECTOR, Fuel
    INJECTOR, Fuel
  • 28
    804532 O-RING KIT
    O-RING KIT
  • 29
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 30
    54-899145 CLIP, Tie Strap
    CLIP, Tie Strap
  • 31
    16-8M0063255 STUD, (M10 x 91)
    STUD, (M10 x 91)
  • 32
    54-856880 CLAMP, Hose (15.3)
    CLAMP, Hose (15.3)
  • 33
    26-888852 SEAL, Fuel Director
    SEAL, Fuel Director
  • -
    854198A07 POWERHEAD ASSEMBLY
    200/200 Pro XS
    POWERHEAD ASSEMBLY
    200/200 Pro XS
  • -
    877869A07 POWERHEAD ASSEMBLY
    225
    POWERHEAD ASSEMBLY
    225
