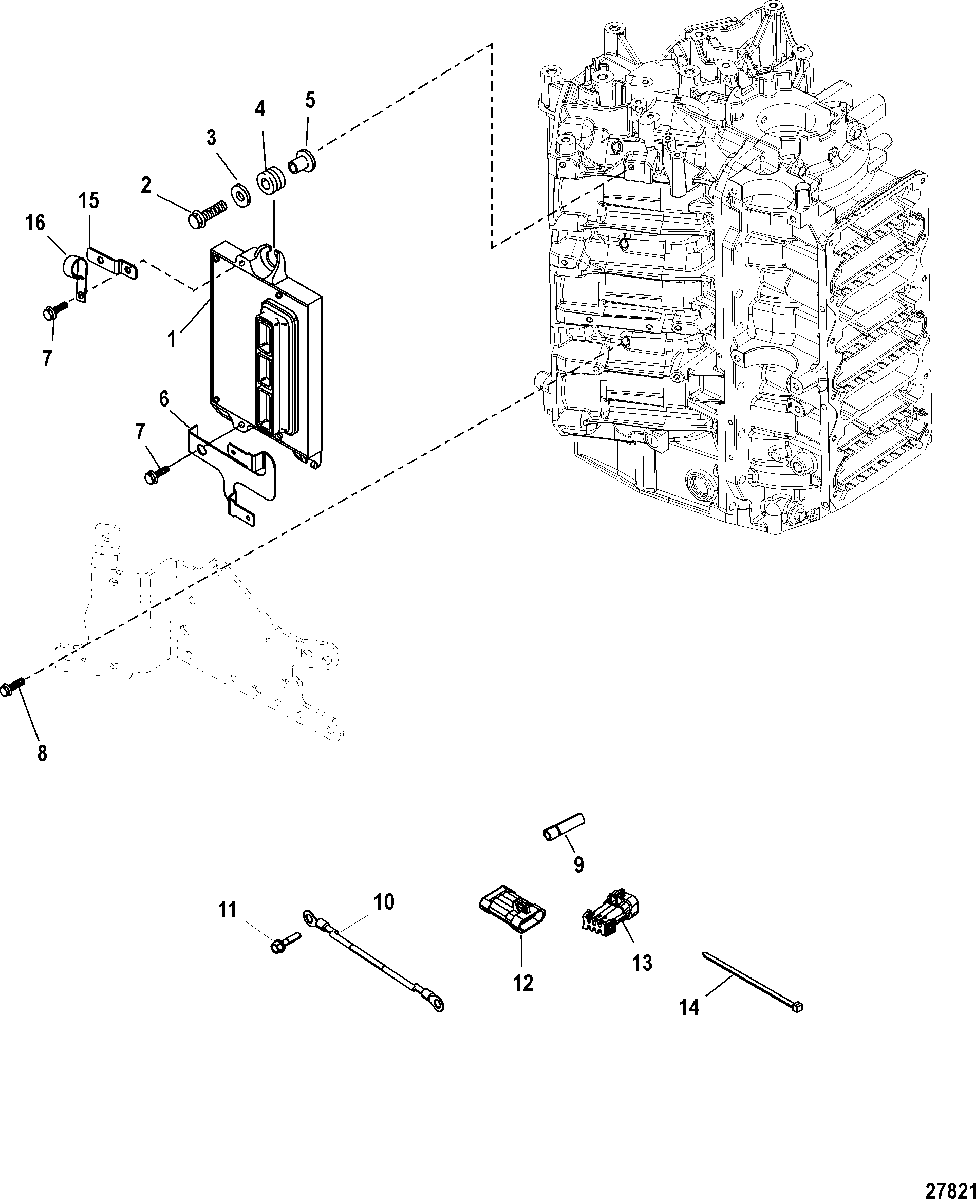

PCM Mounting для Mercury - 200 (DFI) 3.0L 1B912786 & Up

  • №
    Артикул
    Название
  • 1
    8M0063455 PROPULSION CONTROL MODULE
    PROPULSION CONTROL MODULE
  • 2
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 3
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 4
    25-834985 GROMMET
    GROMMET
  • 5
    23-856954 BUSHING
    BUSHING
  • 6
    54-891520001 CLIP
    CLIP
  • 7
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 8
    10-82130012 SCREW, (M6 x 12)
    SCREW, (M6 x 12)
  • 9
    13540 CAP, Female
    CAP, Female
  • 10
    84-88439A26 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 11
    10-81893420 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 12
    830796A04 CONNECTOR ASSEMBLY, Weather Cap - Male
    CONNECTOR ASSEMBLY, Weather Cap - Male
  • 13
    877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin
    CONNECTOR ASSEMBLY, Weather Cap 6 Pin
  • 14
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 15
    858953 BRACKET
    BRACKET
  • 16
    54-65292 J CLIP
    J CLIP
