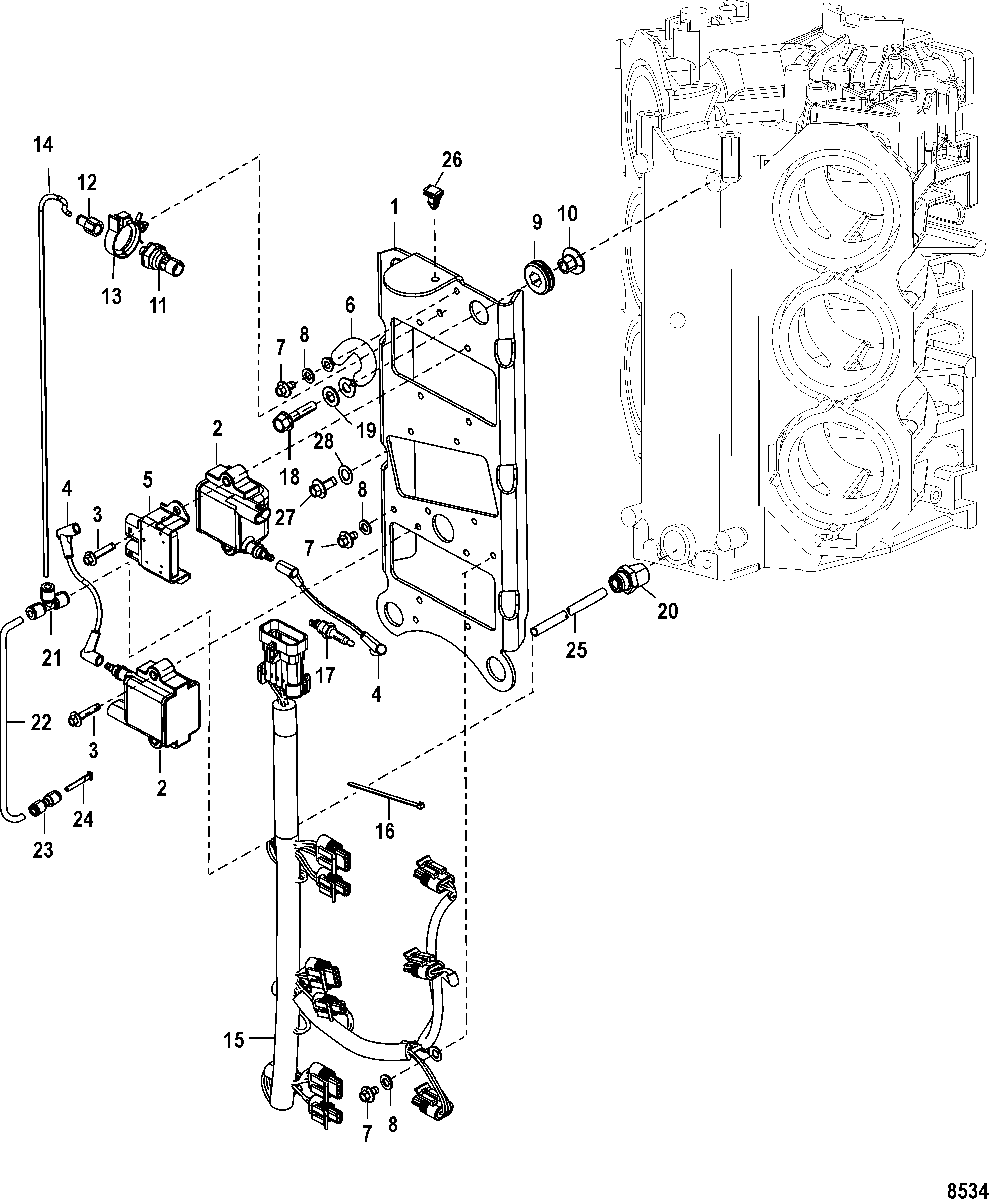

Coil Plate(Serial Number 1B227000 & Up) для Mercury - 200 (DFI) 3.0L 0T801000 THRU 1B417701

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Coil Mounting Plate-Complete
    NOT SOLD SEPARATE, Coil Mounting Plate-Complete
  • 1
    850295T4 PLATE
    PLATE
  • 2
    339-856991A1 COIL KIT
    COIL KIT
  • 3
    10-82129130 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 4
    84-881908T CABLE SET
    CABLE SET
  • 5
    859595T DRIVER, Dual Coil
    DRIVER, Dual Coil
  • 6
    84-858414A1 CABLE ASSEMBLY, Braided
    CABLE ASSEMBLY, Braided
  • 7
    10-82129110 SCREW, (M6 x 10)
    SCREW, (M6 x 10)
  • 8
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 9
    25-833155 GROMMET
    GROMMET
  • 10
    23-8502341 BUSHING
    BUSHING
  • 11
    881879A7 SENSOR KIT, (0-50 PSI)
    SENSOR KIT, (0-50 PSI)
  • 12
    22-892403 FITTING
    FITTING
  • 13
    54-883066 CLIP, (.865)
    CLIP, (.865)
  • 14
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 18 Inches)
  • 15
    84-892972T01 HARNESS ASSEMBLY, Coil
    HARNESS ASSEMBLY, Coil
  • 16
    54-859671 TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 17
    33-889597Q SPARK PLUG
    SPARK PLUG
  • 18
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 19
    12-4002318 WASHER
    WASHER
  • 20
    22-881866 FITTING
    FITTING
  • 21
    22-875207 TEE, Fitting
    TEE, Fitting
  • 22
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 44 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 44 Inches)
  • 23
    22-859747 COUPLER
    COUPLER
  • 24
    22-859732 PLUG
    PLUG
  • 25
    32-85978571 TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)
    TUBING, (52.00 Inches Bulk) (Cut to 5 Inches)
  • 26
    32-85944975 TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
    TUBING, (72.00 Inches Bulk) (Cut to 52 Inches)
  • 27
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 28
    12-36001 WASHER
    WASHER
