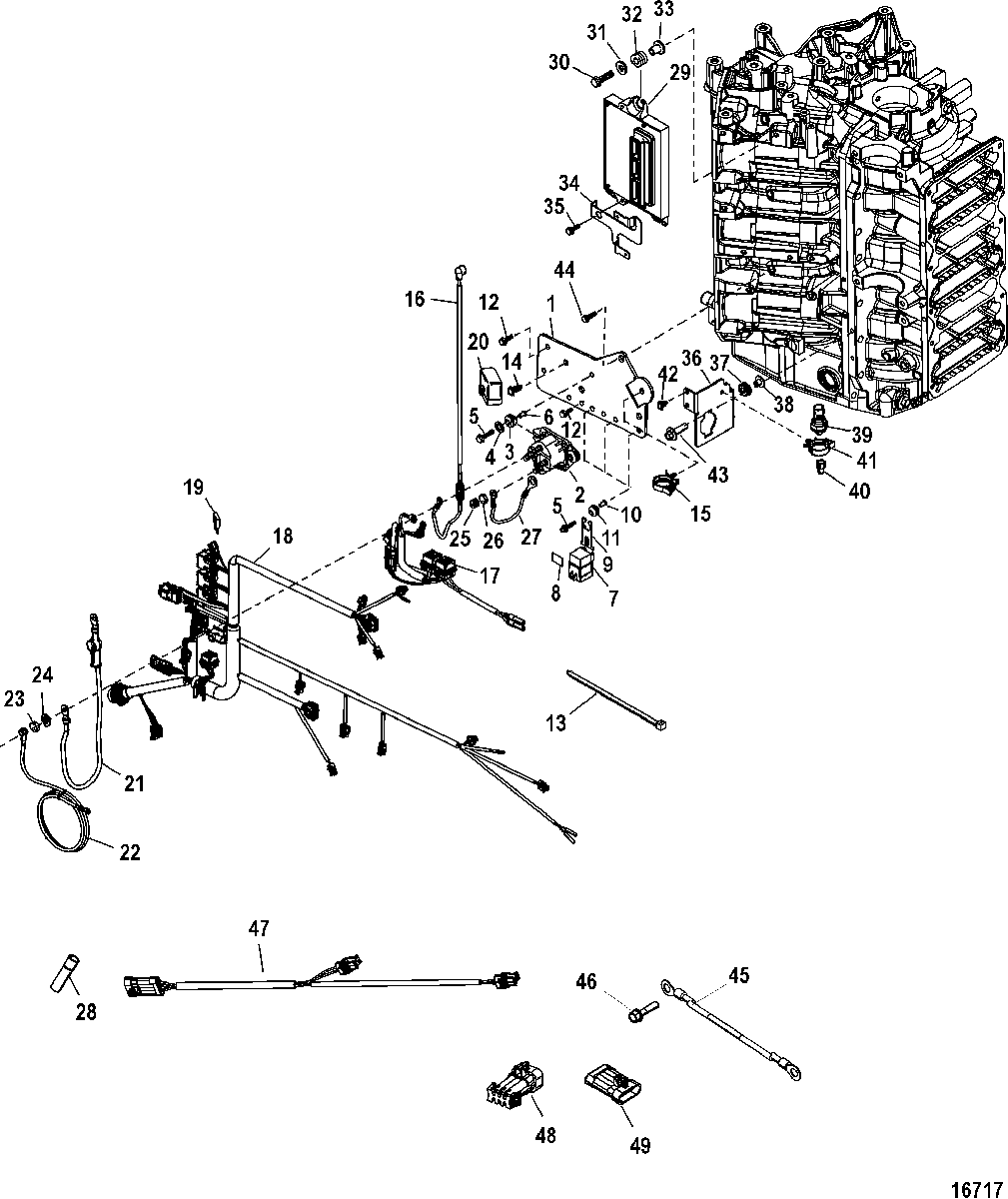

Solenoid Plate для Mercury - 200 (3.0L EFI) 1B417702 THRU 1B504988

№

Артикул

Название
-

NSS NOT SOLD SEPARATE, Electrical Plate Assembly-Complete

NOT SOLD SEPARATE, Electrical Plate Assembly-Complete
1

858366T2 PLATE

PLATE
2

89-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)

SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
3

25-822179 GROMMET

GROMMET
4

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel
5

10-82129125 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)
6

23-818968 BUSHING

BUSHING
7

882751A1 RELAY ASSEMBLY

RELAY ASSEMBLY
8

NSS NOT SOLD SEPARATE, Decal-Trim Relay

NOT SOLD SEPARATE, Decal-Trim Relay
9

828102 BRACKET

BRACKET
10

23-818968 BUSHING

BUSHING
11

25-818967 GROMMET

GROMMET
12

10-82129110 SCREW, (M6 x 10)

SCREW, (M6 x 10)
13

54-816311T TIE STRAP, (8.00 Inches)

TIE STRAP, (8.00 Inches)
14

54-828991T CLIP

CLIP
15

54-858755 CLIP, (1.00)

CLIP, (1.00)
16

84-878231A6 HARNESS ASSEMBLY, Fuse - 100 Ampere

HARNESS ASSEMBLY, Fuse - 100 Ampere
17

84-819514T21 HARNESS ASSEMBLY, Trim

HARNESS ASSEMBLY, Trim
18

84-892973T01 HARNESS ASSEMBLY, Engine

HARNESS ASSEMBLY, Engine
19

88-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)

FUSE, Mini - Yellow - 20 Ampere
(20 AMP)
19

88-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)

FUSE, Mini - Tan - 5 Ampere
(5 AMP)
20

858754 COVER, Fuse

COVER, Fuse
-

879346A41 HARNESS ASSEMBLY (TPS)

HARNESS ASSEMBLY (TPS)
-

879346A52 HARNESS ASSEMBLY, Encoder, Crank Position Sensor

HARNESS ASSEMBLY, Encoder, Crank Position Sensor
-

84-881262A2 HARNESS ASSEMBLY, Alternator, Alternator

HARNESS ASSEMBLY, Alternator, Alternator
21

84-882829A1 CABLE ASSEMBLY, Starter

CABLE ASSEMBLY, Starter
22

84-88439A46 CABLE ASSEMBLY, Battery - Positive

CABLE ASSEMBLY, Battery - Positive
23

11-68292 NUT, (.312-18)

NUT, (.312-18)
24

13-53166 LOCKWASHER, (.312)

LOCKWASHER, (.312)
25

11-813938 CAP NUT, (#10-32)

CAP NUT, (#10-32)
26

11-45076 NUT, (#10-32) Brass

NUT, (#10-32) Brass
27

84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black

CABLE ASSEMBLY, (4.00 Inches) Black
28

13540 CAP, Female

CAP, Female
28

13541 PLUG, Male

PLUG, Male
29

89790644T PCM, Propulsion Control Module
(200)

PCM, Propulsion Control Module
(200)
29

89790645T PCM, Propulsion Control Module
(225)

PCM, Propulsion Control Module
(225)
29

89790646T PCM, Propulsion Control Module
(250)

PCM, Propulsion Control Module
(250)
30

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
31

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel
32

25-834985 GROMMET

GROMMET
33

23-856954 BUSHING

BUSHING
34

54-891520001 CLIP

CLIP
35

10-82129114 SCREW, (M6 x 14)

SCREW, (M6 x 14)
36

892295F01 BRACKET

BRACKET
37

25-834985 GROMMET

GROMMET
38

23-822003 BUSHING

BUSHING
39

881879T11 SENSOR, Pressure (0 - 100 PSI)

SENSOR, Pressure (0 - 100 PSI)
40

22-892403 FITTING

FITTING
41

54-883066 CLIP, (.865)

CLIP, (.865)
42

54-879962 CLIP

CLIP
43

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
44

10-82130012 SCREW, (M6 x 12)

SCREW, (M6 x 12)
45

84-88439A26 CABLE ASSEMBLY, Battery - Negative

CABLE ASSEMBLY, Battery - Negative
46

10-81893420 SCREW, (M8 x 20)

SCREW, (M8 x 20)
47

84-882815A1 HARNESS ASSEMBLY (200/3.0L Work)

HARNESS ASSEMBLY (200/3.0L Work)
48

877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 Pin

CONNECTOR ASSEMBLY, Weather Cap 6 Pin
49

830796A04 CONNECTOR ASSEMBLY, Weather Cap - Male

CONNECTOR ASSEMBLY, Weather Cap - Male
