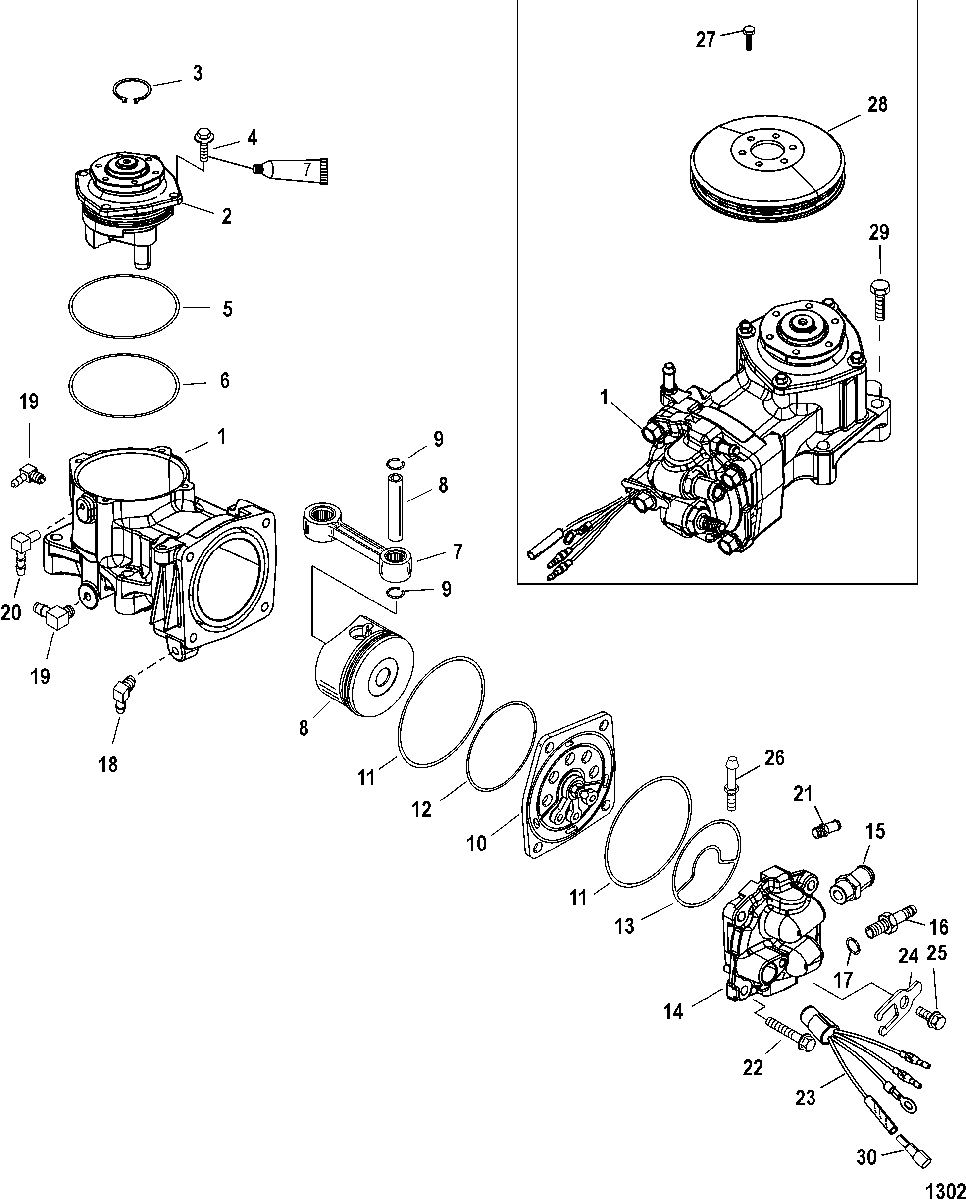

Air Compressor Components, SN# 1B885131 and below для Mercury - 200 (3.0L DFI)(DTS) 1B504989 & Up
-
№АртикулНазвание
-
18M0060052 COMPRESSOR ASSEMBLY, Air
UnpaintedCOMPRESSOR ASSEMBLY, Air
Unpainted -
21100-8M0050792 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3NSS NOT SOLD SEPARATE, Snap RingNOT SOLD SEPARATE, Snap Ring
-
410-85593920 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
525-67206001 O-RINGO-RING
-
625-67206001 O-RINGO-RING
-
7653-833146T06 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
8NSS NOT SOLD SEPARATE, Piston assemblyNOT SOLD SEPARATE, Piston assembly
-
953-8348101 RING, LockRING, Lock
-
10835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1125-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
1225-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
1326-828225 SEALSEAL
-
148M0073889 HEAD KIT, CompressorHEAD KIT, Compressor
-
1522-8812711 FITTINGFITTING
-
1622-856744 FITTINGFITTING
-
1725-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
1822-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
1921-428641 FITTING, Check ValveFITTING, Check Valve
-
2022-151331 FITTINGFITTING
-
2122-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
2210-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2313536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
24137151 RETAINERRETAINER
-
2510-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
268215832 PIN, Special (1.5 Inches)PIN, Special (1.5 Inches)
-
2710-85593912 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
288328233 PULLEYPULLEY
-
2910-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
3013541 PLUG, MalePLUG, Male
-
-25-832804A03 O-RING KITO-RING KIT
