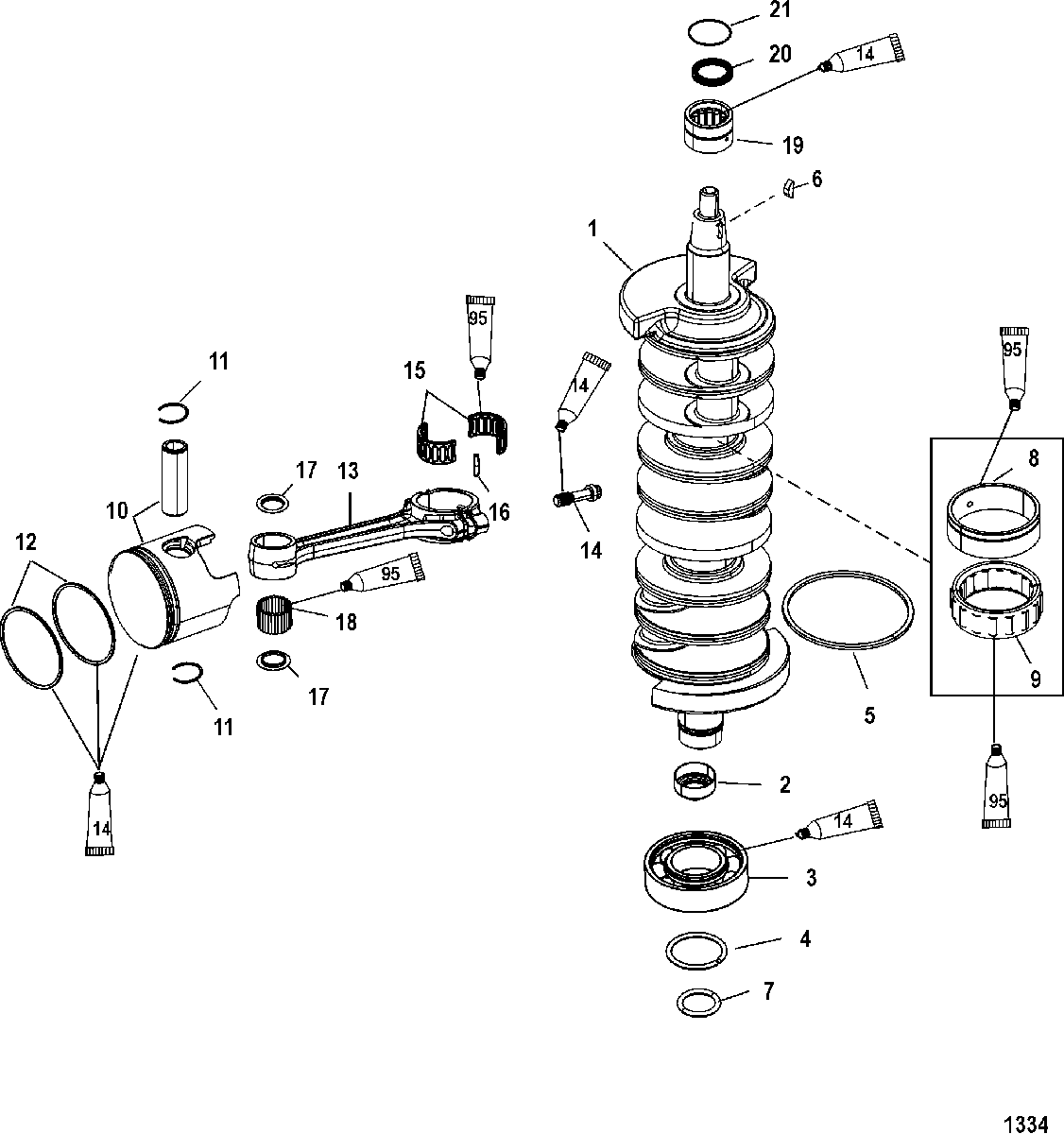

Crankshaft, Piston and Connecting Rods для Mercury - 200 (3.0L DFI)(DTS) 0T980000 THRU 1B417701
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2NSS NOT SOLD SEPARATE, Wear SleeveNOT SOLD SEPARATE, Wear Sleeve
-
330-67923T BEARING, Ball (Lower)BEARING, Ball (Lower)
-
453-67446 RINGRING
-
539-843198T01 RING
SN# 0T979999 & BelowRING
SN# 0T979999 & Below -
539-843198T01 RING, Seal
SN# 0T980000 & UpRING, Seal
SN# 0T980000 & Up -
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 RACE ASSEMBLYRACE ASSEMBLY
-
9NSS NOT SOLD SEPARATE, Needle RollerNOT SOLD SEPARATE, Needle Roller
-
102720-881055T10 PISTON ASSEMBLY
(Starboard-Standard)PISTON ASSEMBLY
(Starboard-Standard) -
102720-889640A02 PISTON ASSEMBLY
(Starboard - .015 Oversize)PISTON ASSEMBLY
(Starboard - .015 Oversize) -
102720-889642A02 PISTON ASSEMBLY
(Starboard - .030 Oversize)PISTON ASSEMBLY
(Starboard - .030 Oversize) -
102720-881054T10 PISTON ASSEMBLY
(Port-Standard)PISTON ASSEMBLY
(Port-Standard) -
102720-889639A02 PISTON ASSEMBLY
(Port - .015 Oversize)PISTON ASSEMBLY
(Port - .015 Oversize) -
102720-889641A02 PISTON ASSEMBLY
(Port - .030 Oversize)PISTON ASSEMBLY
(Port - .030 Oversize) -
1140-841202 RINGRING
-
1239-827179A12 RING SET, Piston
(Standard)RING SET, Piston
(Standard) -
1239-875252A12 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
1239-875257A12 RING SET, Piston
(.030 Oversize)RING SET, Piston
(.030 Oversize) -
13600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1410-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1531-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
16NSS NOT SOLD SEPARATE, Needle Roller BearingNOT SOLD SEPARATE, Needle Roller Bearing
-
1712-88263 THRUST WASHERTHRUST WASHER
-
1829-88258001 NEEDLE, Roller Bearing
SN# 0T800999 & BelowNEEDLE, Roller Bearing
SN# 0T800999 & Below -
1829-88258001 BEARING, Needle
SN# 0T801000 & UpBEARING, Needle
SN# 0T801000 & Up -
1931-816773A2 BEARING ASSEMBLY (Upper)BEARING ASSEMBLY (Upper)
-
2026-859093 SEALSEAL
-
2125-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-877869A07 POWERHEAD ASSEMBLY
SN# 0T800999 & BelowPOWERHEAD ASSEMBLY
SN# 0T800999 & Below -
-877869A07 POWERHEAD ASSEMBLY
SN# 0T801000 & UpPOWERHEAD ASSEMBLY
SN# 0T801000 & Up
