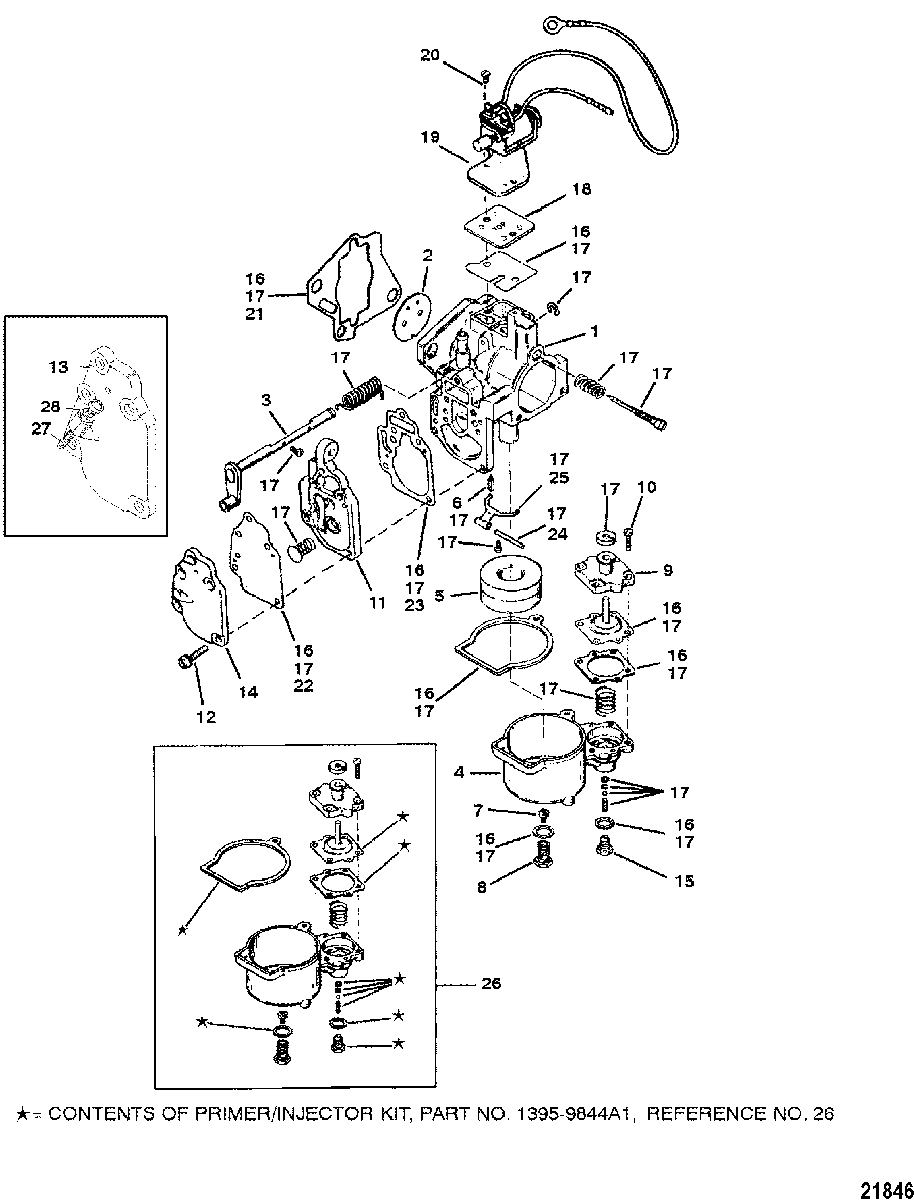

Carburetor(20/25/JET 20) для Mercury - 20 JET 9807909 THRU 0P016999
-
№АртикулНазвание
-
11392-823907T12 CARBURETOR
(WMC-52 - 20HP)CARBURETOR
(WMC-52 - 20HP) -
11390-817405T23 CARBURETOR
(WMC-53A - 25HP)CARBURETOR
(WMC-53A - 25HP) -
11390-8888T20 CARBURETOR
(WMC-44 - 20HP)CARBURETOR
(WMC-44 - 20HP) -
11390-8889T21 CARBURETOR
(WMC-45 - 25HP) (JET 20)CARBURETOR
(WMC-45 - 25HP) (JET 20) -
2815133 VALVE, Throttle
(20HP)VALVE, Throttle
(20HP) -
21395-96461 VALVE, Throttle
(25HP/JET 20)VALVE, Throttle
(25HP/JET 20) -
31395-803857 SHAFT, Throttle
(20-WMC-44)SHAFT, Throttle
(20-WMC-44) -
31395-9695 SHAFT, Throttle
(25-WMC-45) (JET 20)SHAFT, Throttle
(25-WMC-45) (JET 20) -
31395-96951 SHAFT, Throttle
(20/25HP)(WMC52/52A/53/53A)SHAFT, Throttle
(20/25HP)(WMC52/52A/53/53A) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
698551 VALVE, Inlet NeedleVALVE, Inlet Needle
-
71395-7394 JET, (.044)
(20HP)JET, (.044)
(20HP) -
71399-3796 JET, (.076)
(25HP/JET 20)JET, (.076)
(25HP/JET 20) -
81395-9171 PLUGPLUG
-
91395-823648 COVER, DiaphragmCOVER, Diaphragm
-
101395-9697 SCREWSCREW
-
111395-9702 BODYBODY
-
121395-9643 SCREWSCREW
-
131395-96371 COVER, Fuel PumpCOVER, Fuel Pump
-
141395-9637 COVER
(JET 20)COVER
(JET 20) -
151395-9762 PLUGPLUG
-
161395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
171395-8237072 REPAIR KITREPAIR KIT
-
181395-9699 PLATE (MANUAL)PLATE (MANUAL)
-
191395-823433 CHOKE, Electric (ELECTRIC)CHOKE, Electric (ELECTRIC)
-
201395-9696 SCREWSCREW
-
2127-192061 GASKET, CarburetorGASKET, Carburetor
-
221395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
231395-9633 GASKETGASKET
-
24F10064 SHAFTSHAFT
-
251395-824401 LEVER, FloatLEVER, Float
-
261395-9844A1 SERVICE KIT, Primer/Injector
(SEE ILLUSTRATION FOR CONTENTS)SERVICE KIT, Primer/Injector
(SEE ILLUSTRATION FOR CONTENTS) -
2710-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
2811-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
-27-41499A88 GASKET SETGASKET SET
-
-804946T01 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
