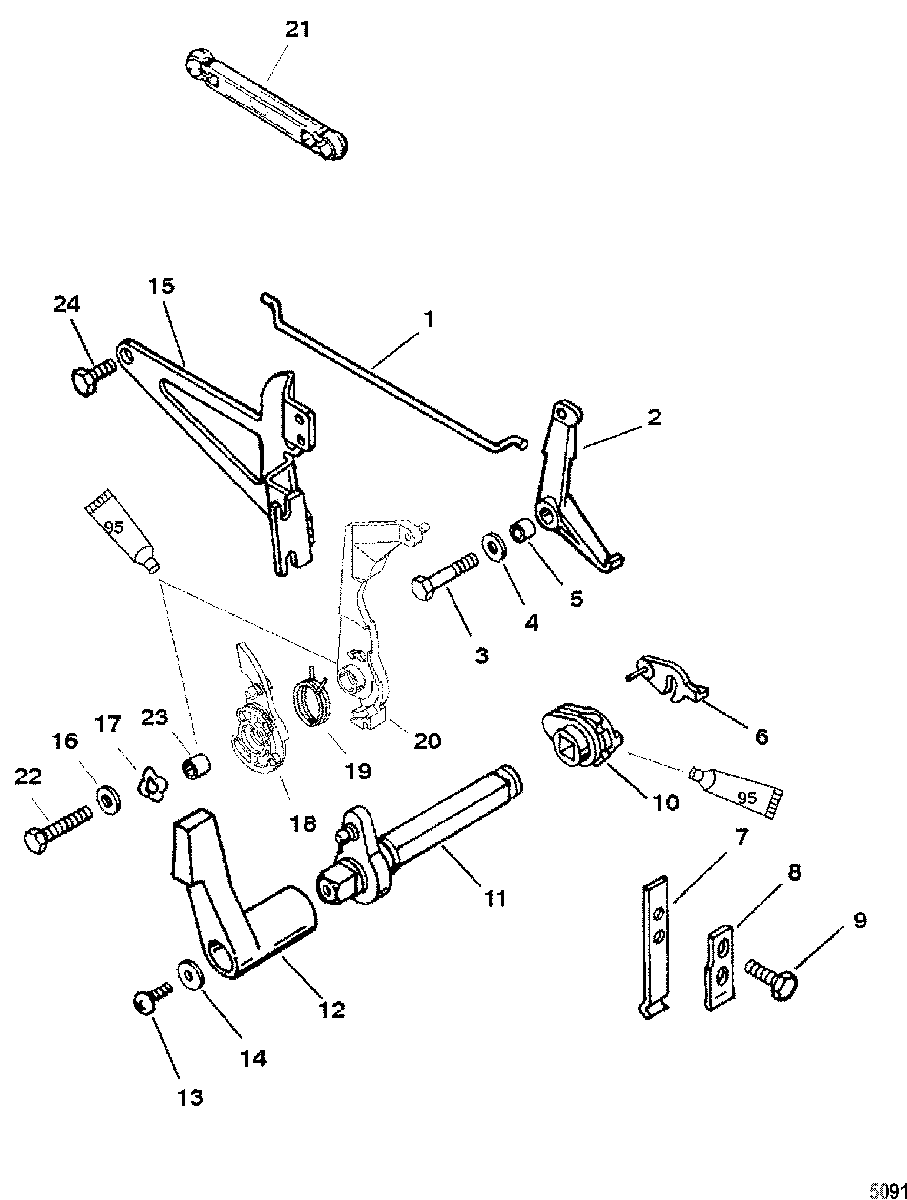

Throttle and Shift Linkage(Side Shift) для Mercury - 20 JET 0T980000 THRU 0T999999

  • №
    Артикул
    Название
  • 1
    42161 LINK INTERLOCK
    LINK INTERLOCK
  • 2
    8236103 LEVER, Interlock Control
    LEVER, Interlock Control
  • 3
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 4
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 5
    23-823806 BUSHING
    BUSHING
  • 6
    823862 LEVER, Backplate
    LEVER, Backplate
  • 7
    24-826077 SPRING, Detent
    SPRING, Detent
  • 8
    824994 SPRING, Plate
    SPRING, Plate
  • 9
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 10
    8238632 LEVER, Horizontal Shift Shaft, Port
    LEVER, Horizontal Shift Shaft, Port
  • 11
    8236011 SHIFT SHAFT, Horizontal
    SHIFT SHAFT, Horizontal
  • 12
    8239521 SHIFT HANDLE
    SHIFT HANDLE
  • 13
    10-40019108 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 14
    12-4002314 WASHER
    WASHER
  • 15
    8237582 BRACKET, Cable Anchor
    BRACKET, Cable Anchor
  • 16
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 17
    13-99611 WAVE WASHER
    WAVE WASHER
  • 18
    8319781 CAM, Throttle
    CAM, Throttle
  • 19
    24-42164 SPRING
    SPRING
  • 20
    888191 SPARK ARM
    SPARK ARM
  • 21
    8327471 TIMING LINK
    TIMING LINK
  • 22
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 23
    23-823806 BUSHING
    BUSHING
  • 24
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
