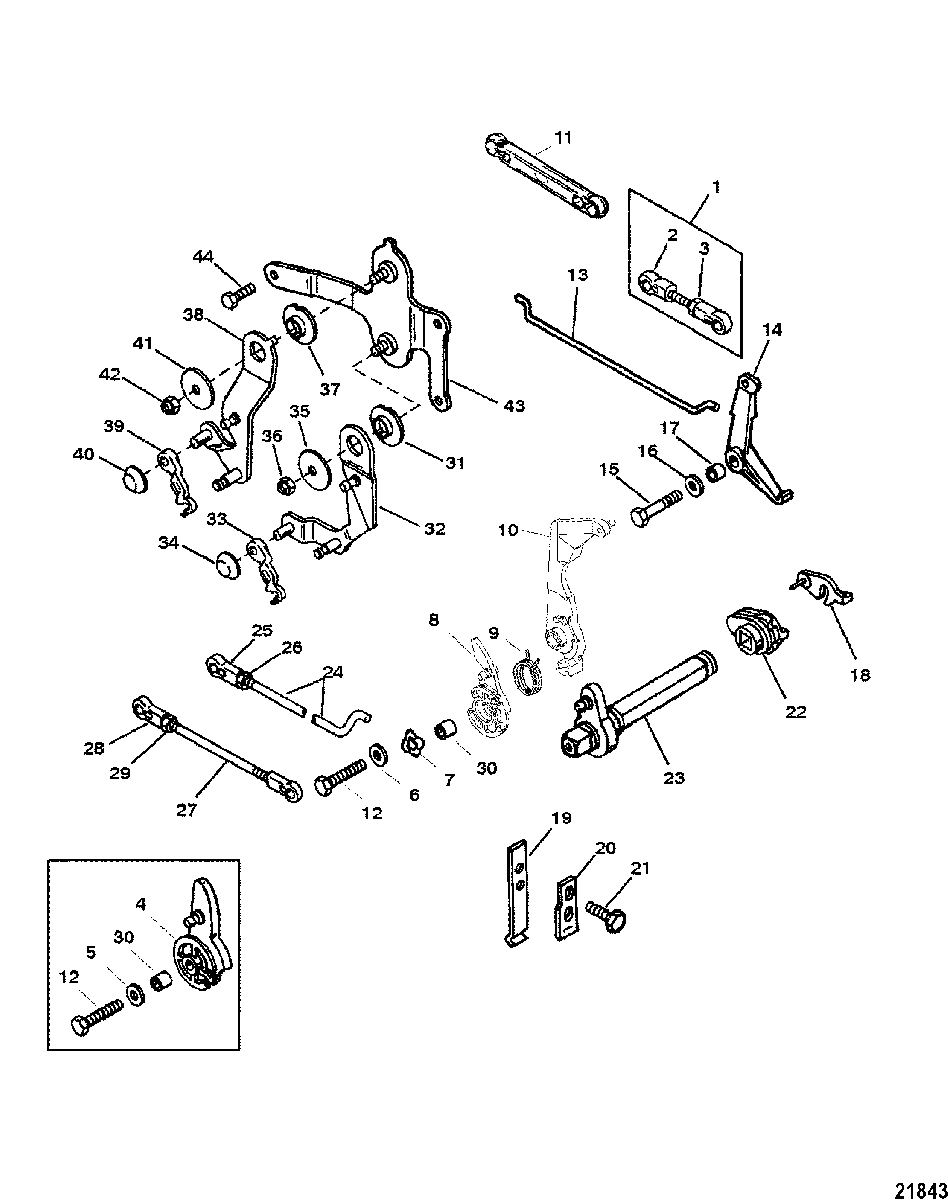

Throttle and Shift Linkage(Remote Control) для Mercury - 20 JET 0G044027 THRU 0G760299
-
№АртикулНазвание
-
1823857A1 LINK ASSEMBLY, Spark Adjustment
SN# USA-0G437999/BEL-9926999 & BelowLINK ASSEMBLY, Spark Adjustment
SN# USA-0G437999/BEL-9926999 & Below -
2817428 SOCKET
SN# USA-0G437999/BEL-9926999 & BelowSOCKET
SN# USA-0G437999/BEL-9926999 & Below -
311-45076 NUT, (#10-32) Brass
SN# USA-0G437999/BEL-9926999 & BelowNUT, (#10-32) Brass
SN# USA-0G437999/BEL-9926999 & Below -
48237571 CAM, Throttle
SN# USA-0G437999/BEL-9926999 & BelowCAM, Throttle
SN# USA-0G437999/BEL-9926999 & Below -
512-69056 WASHER, (.255 x .620 x .030) Stainless Steel
SN# USA-0G437999/BEL-9926999 & BelowWASHER, (.255 x .620 x .030) Stainless Steel
SN# USA-0G437999/BEL-9926999 & Below -
612-65567 WASHER, (.265 x .750 x .048) Stainless Steel
SN# USA-0G438000/BEL-9927000 & UpWASHER, (.265 x .750 x .048) Stainless Steel
SN# USA-0G438000/BEL-9927000 & Up -
713-99611 WAVE WASHER
SN# USA-0G438000/BEL-9927000 & UpWAVE WASHER
SN# USA-0G438000/BEL-9927000 & Up -
88319781 CAM, Throttle
SN# USA-0G438000/BEL-9927000 & UpCAM, Throttle
SN# USA-0G438000/BEL-9927000 & Up -
924-42164 SPRING
SN# USA-0G438000/BEL-9927000 & UpSPRING
SN# USA-0G438000/BEL-9927000 & Up -
10888191 SPARK ARM
SN# USA-0G438000/BEL-9927000 & UpSPARK ARM
SN# USA-0G438000/BEL-9927000 & Up -
118327471 TIMING LINK
SN# USA-0G438000/BEL-9927000 & UpTIMING LINK
SN# USA-0G438000/BEL-9927000 & Up -
1210-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1342161 LINK INTERLOCKLINK INTERLOCK
-
148236103 LEVER, Interlock ControlLEVER, Interlock Control
-
1510-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1612-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1723-823806 BUSHINGBUSHING
-
18823862 LEVER, BackplateLEVER, Backplate
-
1924-826077 SPRING, DetentSPRING, Detent
-
20824994 SPRING, PlateSPRING, Plate
-
2110-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
228238632 LEVER, Horizontal Shift Shaft (PORT)LEVER, Horizontal Shift Shaft (PORT)
-
238236011 SHIFT SHAFT (HORIZONTAL)SHIFT SHAFT (HORIZONTAL)
-
24881228A1 SHIFT ROD ASSEMBLYSHIFT ROD ASSEMBLY
-
25817428 SOCKETSOCKET
-
2611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
27881227A3 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
28817428 SOCKETSOCKET
-
2911-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
3023-823806 BUSHINGBUSHING
-
3123-825319 NYLINERNYLINER
-
328251681 LEVER, ShiftLEVER, Shift
-
33822459 RETAINERRETAINER
-
3411-825677 PUSH NUTPUSH NUT
-
3512-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
3611-401386 NUT, (M6)NUT, (M6)
-
3723-825319 NYLINERNYLINER
-
38825169 LEVER, ThrottleLEVER, Throttle
-
39822459 RETAINERRETAINER
-
4011-825677 PUSH NUTPUSH NUT
-
4112-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
4211-401386 NUT, (M6)NUT, (M6)
-
438251701 BRACKET, MountingBRACKET, Mounting
-
4410-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
