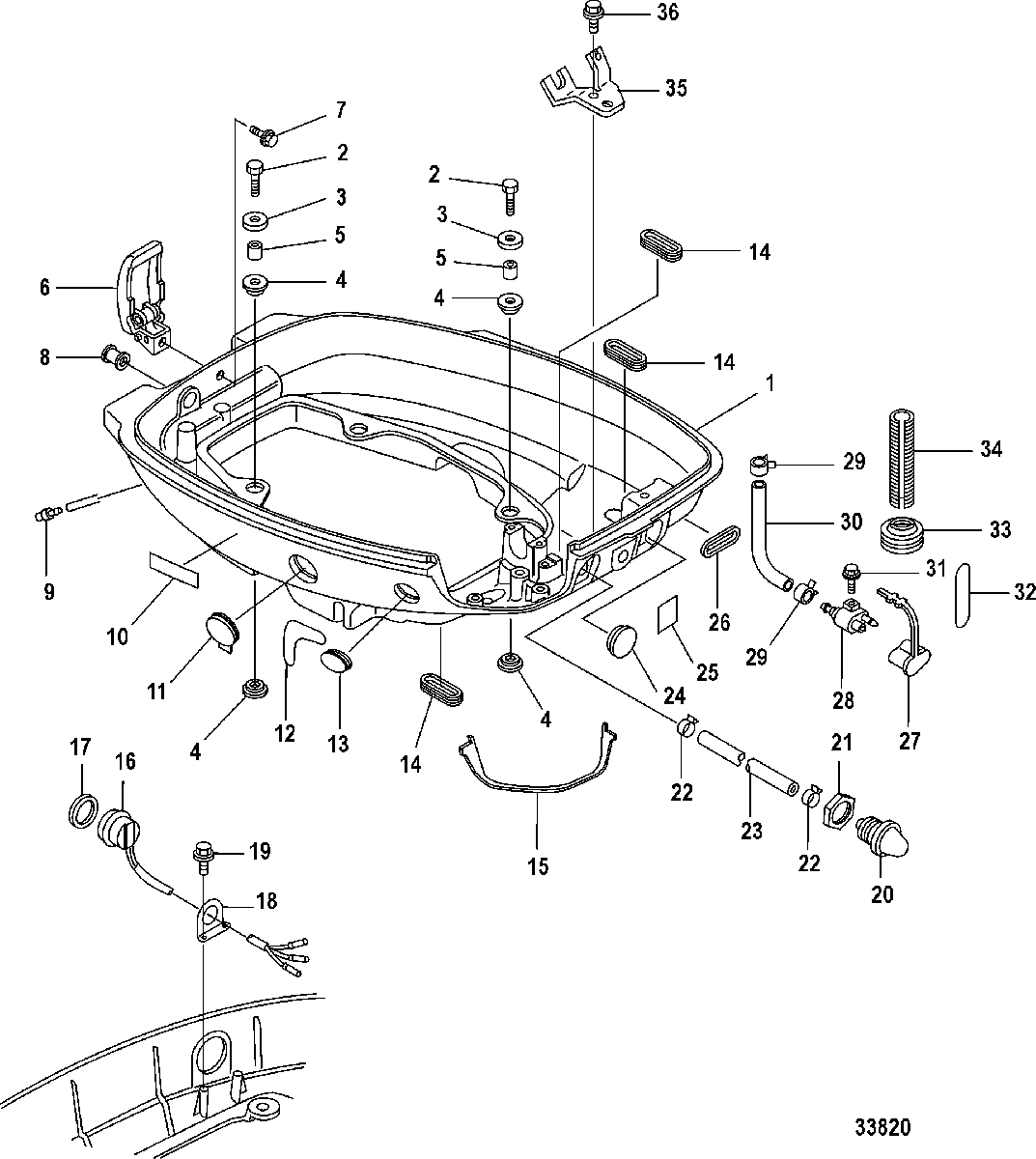

Bottom Cowl для Mercury - 20 Carb(2CYL)(4-STROKE) 0R235168 & Up

  • №
    Артикул
    Название
  • 1
    896113T02 BOTTOM COWL
    BOTTOM COWL
  • 2
    10-8M0124428 BOLT
    BOLT
  • 3
    12-898101960 WASHER, Rubber
    WASHER, Rubber
  • 4
    23-8537437 MOUNT, Rubber
    MOUNT, Rubber
  • 5
    23-8537154 SPACER
    SPACER
  • 6
    8M0063135 LATCH ASSEMBLY, Latch
    SN# 0R403398 & Below
    LATCH ASSEMBLY, Latch
    SN# 0R403398 & Below
  • 6
    8M0063135 COWL LATCH ASSEMBLY
    SN# 0R403399 & Up
    COWL LATCH ASSEMBLY
    SN# 0R403399 & Up
  • 7
    10-8230427 BOLT
    BOLT
  • 8
    25-162284 GROMMET
    GROMMET
  • 9
    22-898101961 NIPPLE, Water
    NIPPLE, Water
  • 10
    8M0076191 DECAL, Notice-This Side Up
    SN# 0R547439 & Below
    DECAL, Notice-This Side Up
    SN# 0R547439 & Below
  • 11
    25-898101963 GROMMET
    GROMMET
  • 12
    37-859278003 DECAL, Throttle Only
    Tiller Models
    DECAL, Throttle Only
    Tiller Models
  • 13
    25-898101939 GROMMET
    Remote Models
    GROMMET
    Remote Models
  • 13
    25-898101962 GROMMET
    Tiller Models
    GROMMET
    Tiller Models
  • 14
    25-853709007 GROMMET, Shift Rod
    GROMMET, Shift Rod
  • 15
    898103137 SEAL, Shift Lever Bracket
    SEAL, Shift Lever Bracket
  • 16
    87-898103011 SWITCH, PTT
    Power Tilt Models
    SWITCH, PTT
    Power Tilt Models
  • 17
    25-898101145 O-RING
    Power Tilt Models
    O-RING
    Power Tilt Models
  • 18
    896630 BRACKET, Switch
    Power Tilt Models
    BRACKET, Switch
    Power Tilt Models
  • 19
    10-8248324 BOLT
    Power Tilt Models
    BOLT
    Power Tilt Models
  • 20
    895124 PUMP ASSEMBLY, Priming
    Tiller Models
    PUMP ASSEMBLY, Priming
    Tiller Models
  • 21
    11-895177 NUT
    Tiller Models
    NUT
    Tiller Models
  • 22
    54-898101964 CLIP
    Tiller Models
    CLIP
    Tiller Models
  • 23
    32-879194473 HOSE, Rubber (300 mm)
    Tiller Models
    HOSE, Rubber (300 mm)
    Tiller Models
  • 24
    25-16226 GROMMET
    Electric Remote Models
    GROMMET
    Electric Remote Models
  • 25
    37-896854007 DECAL, Oil Pressure
    DECAL, Oil Pressure
  • 26
    25-853709008 GROMMET, Battery Cable
    GROMMET, Battery Cable
  • 27
    878311 CAP
    CAP
  • 28
    22-15781A5 CONNECTOR, Fuel - Brass
    CONNECTOR, Fuel - Brass
  • 29
    54-8M0129429 CLIP
    CLIP
  • 30
    32-8M0057113 HOSE, Rubber (400 mm)
    HOSE, Rubber (400 mm)
  • 31
    10-8248324 BOLT
    BOLT
  • 32
    37-859278004 DECAL, Start
    Electric Tiller Models
    DECAL, Start
    Electric Tiller Models
  • 33
    25-162262 GROMMET
    GROMMET
  • 34
    32-895108006 SLEEVE, Protective
    SLEEVE, Protective
  • 35
    853817003 BRACKET, Neutral Switch
    BRACKET, Neutral Switch
  • 36
    10-8248324 BOLT
    BOLT
  • -
    50-8M0071380 START KIT, Electric
    START KIT, Electric
  • -
    37-8M0081456 DECAL SET, Mercury, Lower Cowl
    SN# 0R547440 & Up
    DECAL SET, Mercury, Lower Cowl
    SN# 0R547440 & Up
