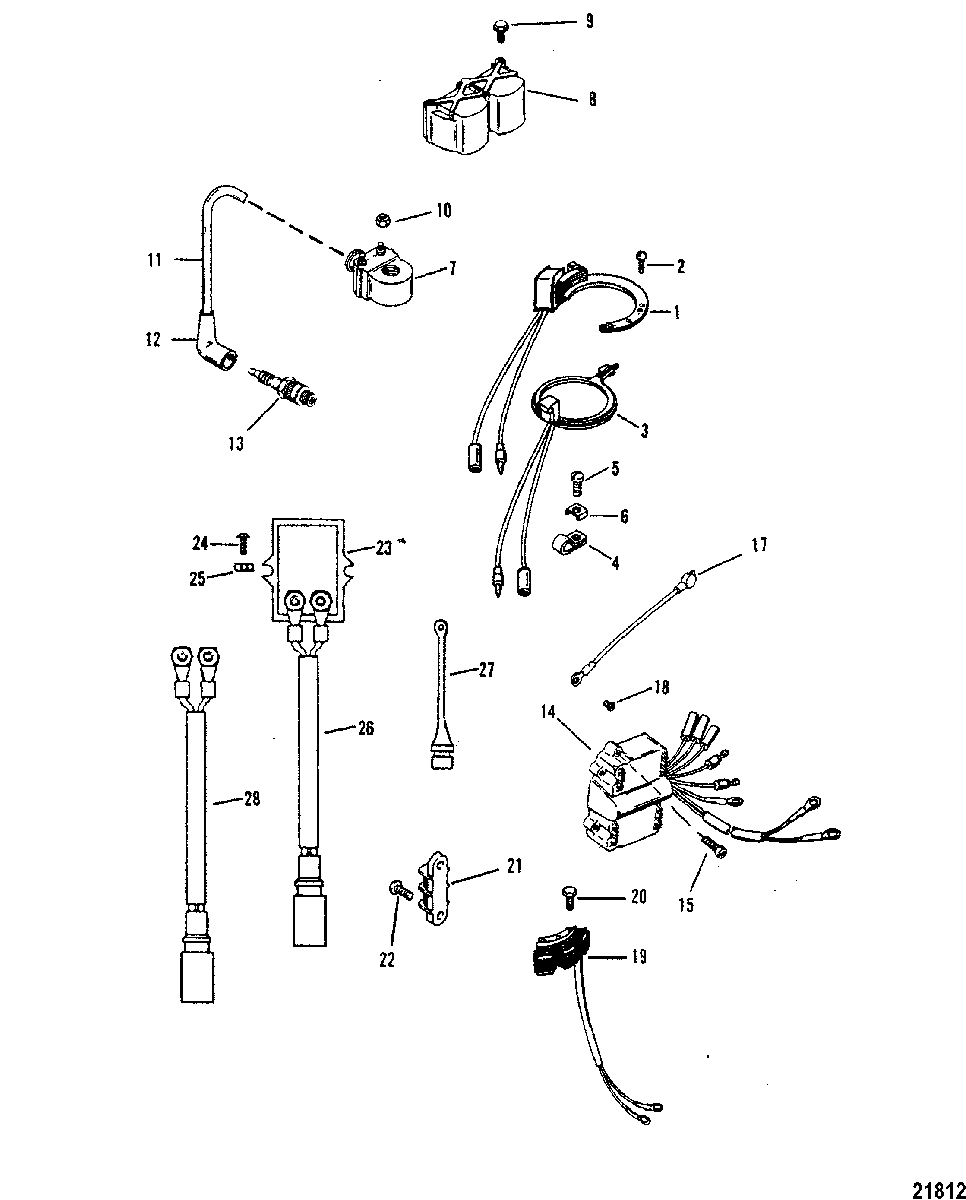

Ignition/Electrical Components для Mercury - 20 (2 CYL.) 9507381 THRU 9807908

  • №
    Артикул
    Название
  • 1
    86617A20 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 2
    10-4000120 SCREW, (M5 x 25)
    SCREW, (M5 x 25)
  • 2
    10-400015 SCREW, (M5 x 10), STATOR ATTACHING
    SCREW, (M5 x 10), STATOR ATTACHING
  • 3
    98450A10 TRIGGER ASSEMBLY
    TRIGGER ASSEMBLY
  • 4
    54-24836 CLIP, TRIGGER LEADS
    (Manual)
    CLIP, TRIGGER LEADS
    (Manual)
  • 4
    54-22740 CLIP, TRIGGER LEADS
    (Electric/Manual Alternator)
    CLIP, TRIGGER LEADS
    (Electric/Manual Alternator)
  • 5
    10-48408 SCREW, (#10-16 x .500), CLIP TO CRANKCASE
    SCREW, (#10-16 x .500), CLIP TO CRANKCASE
  • 6
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 7
    339-832757A4 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 8
    997621 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 9
    10-1994155 SCREW, (M5 x 55) Stainless Steel, IGNITION COIL COVER
    SCREW, (M5 x 55) Stainless Steel, IGNITION COIL COVER
  • 10
    11-45076 NUT, (#10-32) Brass, COIL TERMINAL
    NUT, (#10-32) Brass, COIL TERMINAL
  • 11
    84-813715A2 HIGH TENSION LEADS
    HIGH TENSION LEADS
  • 11
    84-813715A2 CABLE SET, High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)
    CABLE SET, High Tension (5 and 8.25 Inch) (COMMERCIAL ENGINES)
  • 12
    85-63709A1 BOOT/TERMINAL KIT, SPARK PLUG
    BOOT/TERMINAL KIT, SPARK PLUG
  • 13
    33-97180Q SPARK PLUG (NGK #BUZHW)
    (See Service Bulletin 91-36)
    SPARK PLUG (NGK #BUZHW)
    (See Service Bulletin 91-36)
  • 13
    33-14103Q SPARK PLUG (NGK #BUZHW-2)
    (See Service Bulletin 91-36)
    SPARK PLUG (NGK #BUZHW-2)
    (See Service Bulletin 91-36)
  • 13
    33-13686Q SPARK PLUG (NGK #BU8H)
    (See Service Bulletin 91-36)
    SPARK PLUG (NGK #BU8H)
    (See Service Bulletin 91-36)
  • 13
    33-816737Q SPARK PLUG (NGK #BP8H-N-10)
    (See Service Bulletin 91-36)
    SPARK PLUG (NGK #BP8H-N-10)
    (See Service Bulletin 91-36)
  • 13
    33-816837Q SPARK PLUG (NGK #BPZ8H-N-10)
    (See Service Bulletin 91-36)
    SPARK PLUG (NGK #BPZ8H-N-10)
    (See Service Bulletin 91-36)
  • 14
    339-7452A19 SWITCHBOX ASSEMBLY
    SWITCHBOX ASSEMBLY
  • 15
    10-40019108 SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
    SCREW, (M5 x 20), SWITCH BOX TO CYLINDER BLOCK
  • 17
    84-88807A10 CABLE ASSEMBLY, AUXILIARY
    CABLE ASSEMBLY, AUXILIARY
  • 18
    10-48408 SCREW, (#10-16 x .500), GROUND WIRE
    SCREW, (#10-16 x .500), GROUND WIRE
  • 19
    86704A10 STATOR ASSEMBLY, AUXILIARY
    STATOR ASSEMBLY, AUXILIARY
  • 20
    10-4000123 SCREW, (M5 x 30), STATOR ATTACHING
    SCREW, (M5 x 30), STATOR ATTACHING
  • 21
    86-638131 TERMINAL BLOCK
    TERMINAL BLOCK
  • 22
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
    SCREW, (#10-16 x .625) Stainless Steel, TERMINAL BLOCK
  • 23
    95845T REGULATOR, Voltage
    REGULATOR, Voltage
  • 24
    10-92799 SCREW, (#10-16 x 1.12)
    SCREW, (#10-16 x 1.12)
  • 25
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 26
    84-74725A2 HARNESS ASSEMBLY (BLACK/RED)
    HARNESS ASSEMBLY (BLACK/RED)
  • 27
    71663 PLUG
    PLUG
  • 28
    84-65017A2 HARNESS ASSEMBLY (EXTERNAL)
    HARNESS ASSEMBLY (EXTERNAL)
