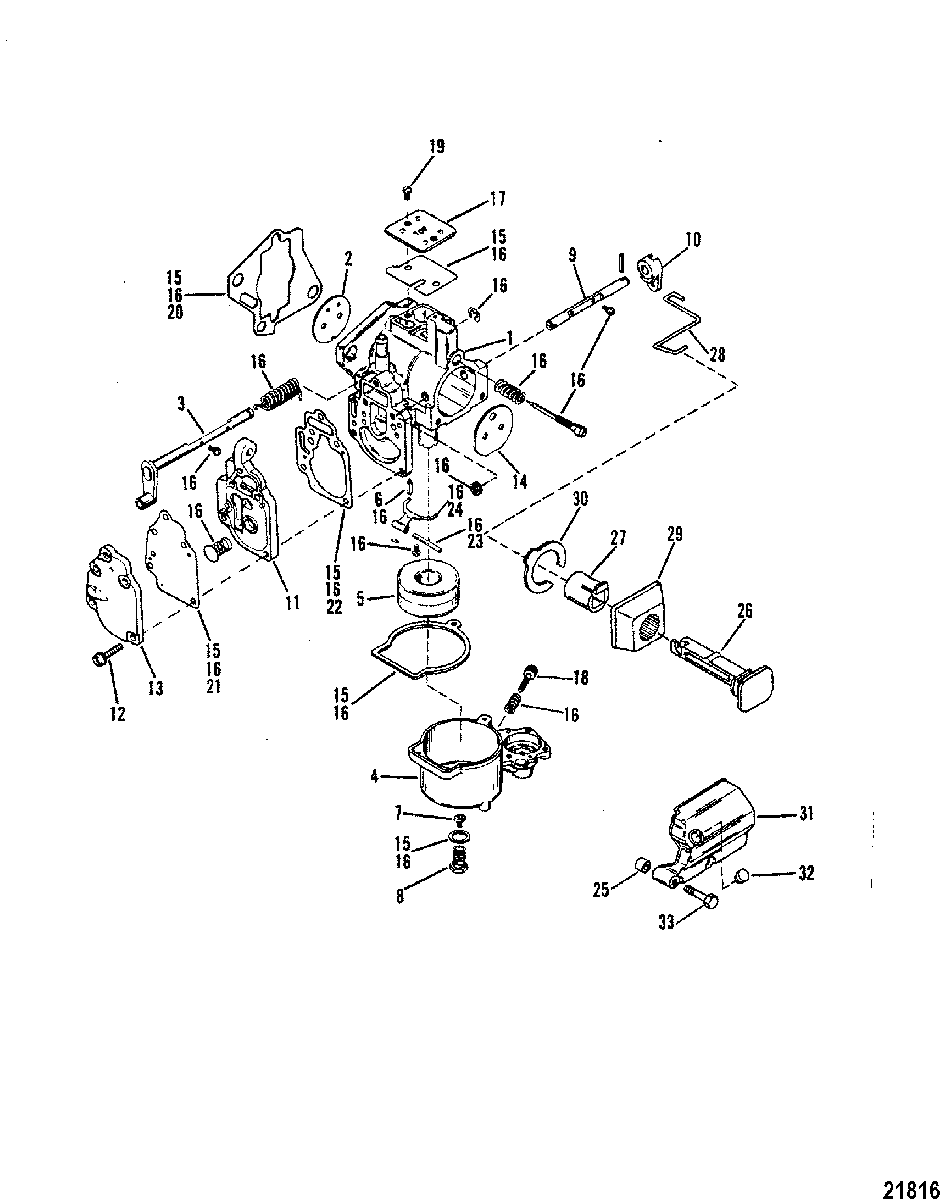

Carburetor(SeaPro/Marathon 25/ Super15) для Mercury - 20 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
11390-817405T6 CARBURETOR (WMC-35A)CARBURETOR (WMC-35A)
-
11390-817405T6 CARBURETOR (WMC-35B)CARBURETOR (WMC-35B)
-
11390-817405T6 CARBURETOR (WMC-43)CARBURETOR (WMC-43)
-
21395-9646 VALVE, ThrottleVALVE, Throttle
-
31395-9695 SHAFT, ThrottleSHAFT, Throttle
-
41395-811353 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE, INLET NEEDLEVALVE, INLET NEEDLE
-
71395-6201 JET, (.080), MAIN FUELJET, (.080), MAIN FUEL
-
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
91395-8113541 SHAFT, Choke (WMC-35/35A)SHAFT, Choke (WMC-35/35A)
-
91395-8113541 SHAFT, Choke (WMC-35B/43)SHAFT, Choke (WMC-35B/43)
-
101395-811805 LEVER, Choke (WMC-35)LEVER, Choke (WMC-35)
-
101395-811805 LEVER, Choke (WMC-35A/35B/43)LEVER, Choke (WMC-35A/35B/43)
-
111395-9702 BODY, FUEL PUMPBODY, FUEL PUMP
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
141395-811806 VALVE, Choke (WMC-35)VALVE, Choke (WMC-35)
-
141395-811806 VALVE, Choke (WMC-35A/35B/43)VALVE, Choke (WMC-35A/35B/43)
-
151395-97611 GASKET SET, CarburetorGASKET SET, Carburetor
-
161395-8237072 REPAIR KIT (VMC 35/35A)REPAIR KIT (VMC 35/35A)
-
161395-8237072 REPAIR KIT (WMC 35B)REPAIR KIT (WMC 35B)
-
161395-8237072 REPAIR KIT (WMC-43)REPAIR KIT (WMC-43)
-
171395-9699 PLATE, COVERPLATE, COVER
-
181395-811360 SCREW, Bowl DrainSCREW, Bowl Drain
-
191395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
2027-192061 GASKET, CARBURETORGASKET, CARBURETOR
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-9633 GASKETGASKET
-
23F10064 SHAFTSHAFT
-
241395-824401 LEVER, FloatLEVER, Float
-
2541750T INSERTINSERT
-
26817424 KNOB, ChokeKNOB, Choke
-
27817426 INSERT, Choke BezelINSERT, Choke Bezel
-
28817425 LINK, ChokeLINK, Choke
-
29172291 BEZEL, ChokeBEZEL, Choke
-
3053-11278 CLIP, RetainingCLIP, Retaining
-
3117442 COVER, CARBURETORCOVER, CARBURETOR
-
3219-47579 PLUG, CARBURETOR COVEPLUG, CARBURETOR COVE
-
3310-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
-422501 RESTRICTOR PLATE
(Super 15)RESTRICTOR PLATE
(Super 15) -
-27-757911 GASKET
(Super 15)GASKET
(Super 15) -
-27-41499A88 GASKET SETGASKET SET
-
-879732T89 POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955 -
-879732T89 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
