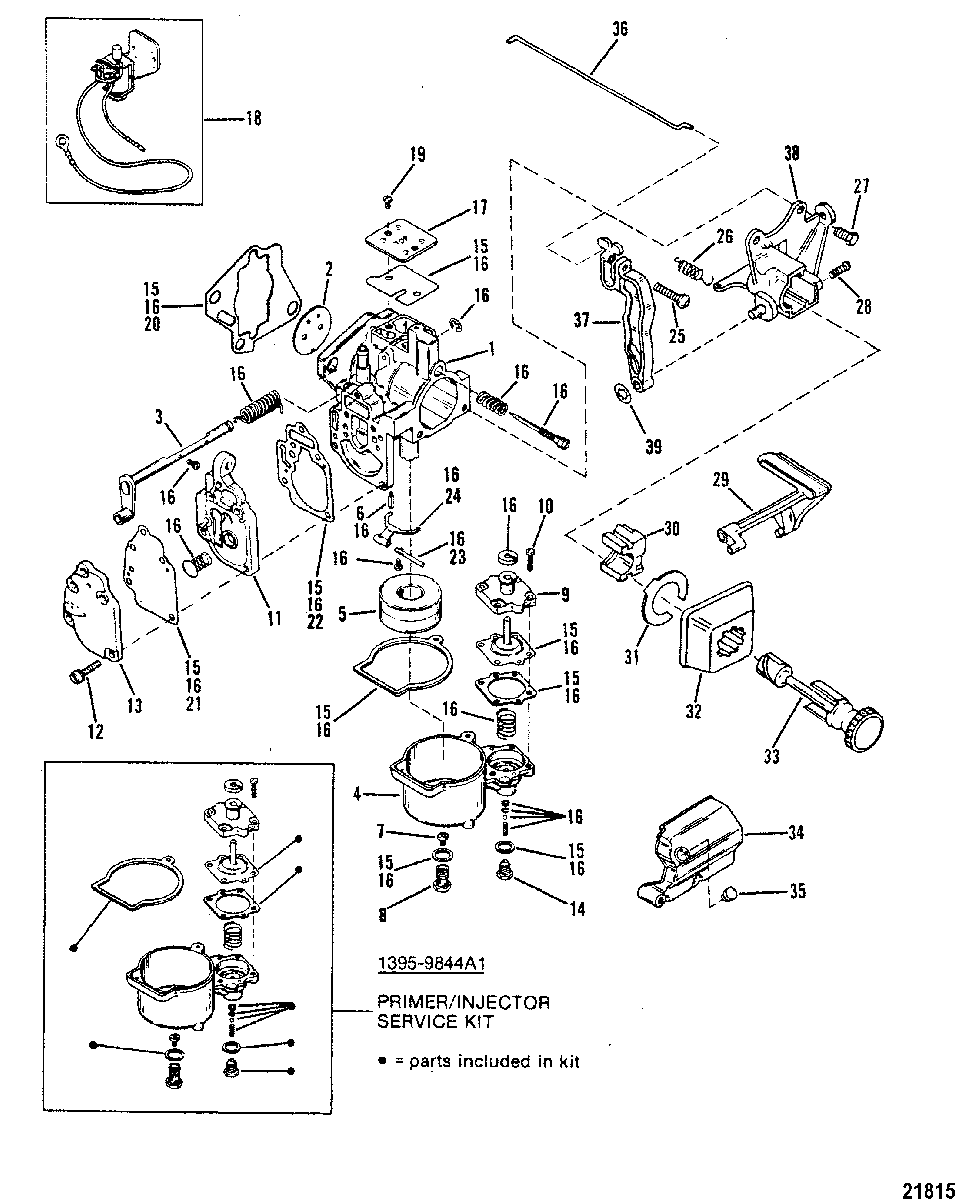

Carburetor(20) для Mercury - 20 (2 CYL.) 0A730007 & Up
-
№АртикулНазвание
-
11390-8888T18 CARBURETOR (MANUAL) - WMC-29CARBURETOR (MANUAL) - WMC-29
-
11390-8888T18 CARBURETOR (MANUAL) - WMC-36CARBURETOR (MANUAL) - WMC-36
-
11390-8888T18 CARBURETOR (ELECTRIC) - WMC-30CARBURETOR (ELECTRIC) - WMC-30
-
11390-8888T18 CARBURETOR (ELECTRIC) - WMC-37CARBURETOR (ELECTRIC) - WMC-37
-
21395-9640 VALVE, ThrottleVALVE, Throttle
-
31395-9695 SHAFT, ThrottleSHAFT, Throttle
-
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE, INLET NEEDLEVALVE, INLET NEEDLE
-
71399-5317 JET, (.046), MAIN FUEL (WMC 29/30)JET, (.046), MAIN FUEL (WMC 29/30)
-
71395-7394 JET, (.044), MAIN FUEL (WMC 36/37)JET, (.044), MAIN FUEL (WMC 36/37)
-
81395-9171 PLUG, JET RETAINERPLUG, JET RETAINER
-
9813618 COVER, DIAPHRAGM (WMC 29/30)COVER, DIAPHRAGM (WMC 29/30)
-
101395-9697 SCREW, DIAPHRAGM COVERSCREW, DIAPHRAGM COVER
-
111395-9702 BODY, FUEL PUMPBODY, FUEL PUMP
-
121395-9643 SCREW, FUEL PUMP COVERSCREW, FUEL PUMP COVER
-
131395-9637 COVER, FUEL PUMPCOVER, FUEL PUMP
-
141395-9762 PLUGPLUG
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-8237072 REPAIR KIT (WMC 29/30)REPAIR KIT (WMC 29/30)
-
161395-8237072 REPAIR KIT (WMC 36/37)REPAIR KIT (WMC 36/37)
-
171395-9699 PLATE, COVER (MANUAL)PLATE, COVER (MANUAL)
-
181395-823433 CHOKE, Electric (ELECTRIC)CHOKE, Electric (ELECTRIC)
-
191395-9696 SCREW, COVER PLATESCREW, COVER PLATE
-
2027-192061 GASKET, CARBURETORGASKET, CARBURETOR
-
211395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
221395-9633 GASKETGASKET
-
23F10064 SHAFTSHAFT
-
241395-824401 LEVER, FloatLEVER, Float
-
2510-12110 SCREW, (#6-32 x .750), FAST IDLE LEVERSCREW, (#6-32 x .750), FAST IDLE LEVER
-
2624-11277 SPRING, TensionSPRING, Tension
-
2710-40056110 SCREW, (M5 x 30), PRIMER BRACKETSCREW, (M5 x 30), PRIMER BRACKET
-
2710-400018 SCREW, (M5 x 12), PRIMER BRACKET (M5 X 8 X 12 MM)SCREW, (M5 x 12), PRIMER BRACKET (M5 X 8 X 12 MM)
-
2810-79965 SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKETSCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET
-
29112731 LEVER, PrimerLEVER, Primer
-
3011280 CAM BLOCKCAM BLOCK
-
3153-11278 CLIP, RetainingCLIP, Retaining
-
32172291 BEZEL, ChokeBEZEL, Choke
-
33128022 KNOB, PRIMERKNOB, PRIMER
-
3417442 COVER, CARBURETORCOVER, CARBURETOR
-
3519-47579 PLUG, CARBURETOR COVERPLUG, CARBURETOR COVER
-
36127332 IDLE WIREIDLE WIRE
-
37128053 LEVER, Fast Idle, FAST IDLELEVER, Fast Idle, FAST IDLE
-
3812803 BRACKET, Primer, PRIMERBRACKET, Primer, PRIMER
-
3911-821979 PUSH NUT, FAST IDLE LEVERPUSH NUT, FAST IDLE LEVER
-
-1395-9844A1 SERVICE KIT, Primer/Injector
PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION.SERVICE KIT, Primer/Injector
PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION. -
-27-41499A88 GASKET SETGASKET SET
-
-879732T89 POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955 -
-879732T89 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
