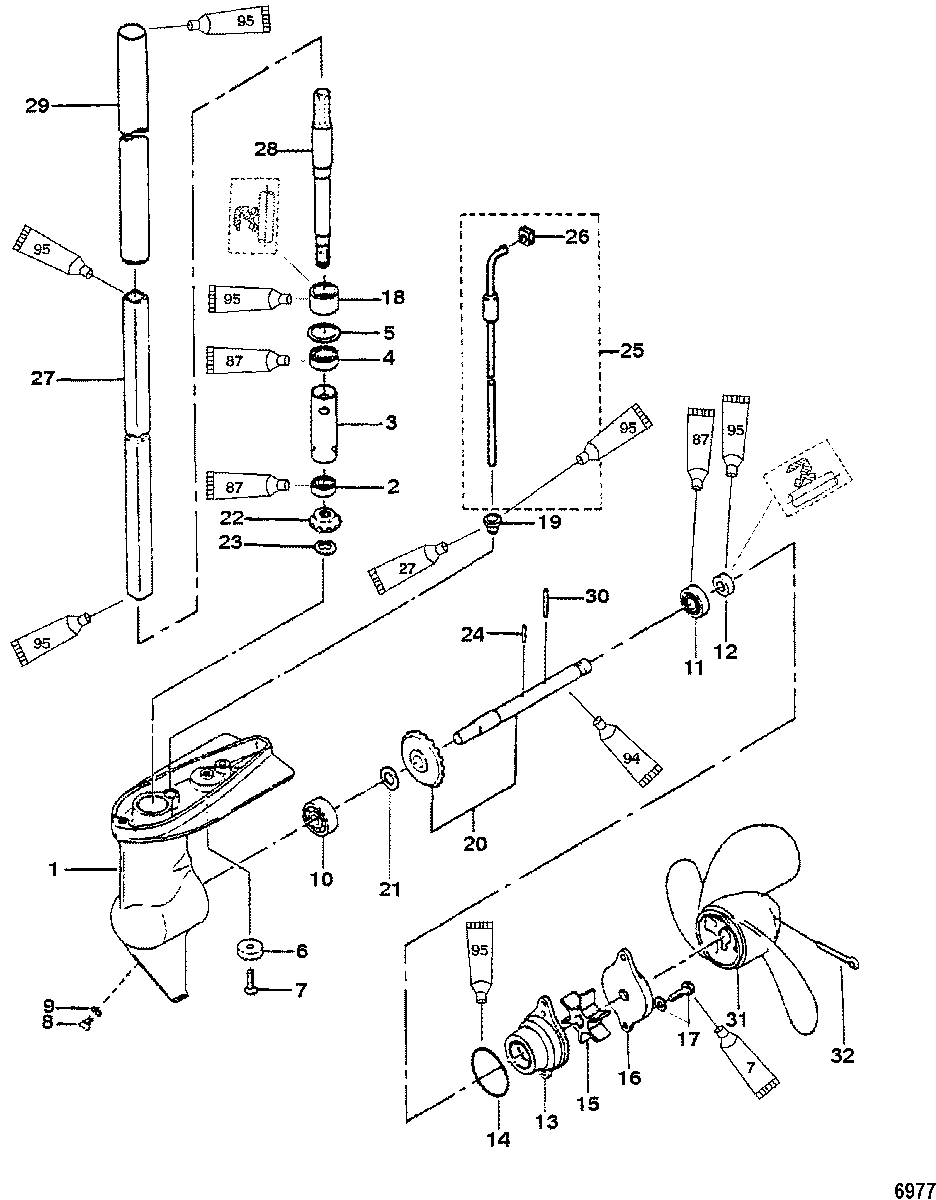

Gear Housing Assembly(2/2.5 HP) для Mercury - 2 0T884302 THRU 0T894576
-
№АртикулНазвание
-
-1668-825122A2 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11668-825122T1 GEAR HOUSING, BasicGEAR HOUSING, Basic
-
230-95342 BALL BEARING, LowerBALL BEARING, Lower
-
323-95343 SPACERSPACER
-
430-95344 BALL BEARING, UpperBALL BEARING, Upper
-
553-95345 SNAP RINGSNAP RING
-
697-823913Q ANODEANODE
-
710-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
822-953683 OIL PLUGOIL PLUG
-
98M0082880 GASKETGASKET
-
1030-95347 BEARINGBEARING
-
1130-95344 BALL BEARINGBALL BEARING
-
1226-95348 OIL SEALOIL SEAL
-
1346-952871 WATER PUMPWATER PUMP
-
1425-95288 O-RINGO-RING
-
1547-952892 IMPELLERIMPELLER
-
16825114 COVERCOVER
-
1710-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1826-95350 OIL SEALOIL SEAL
-
1923-95361 BUSHING, LowerBUSHING, Lower
-
2044-95291A1 PROPELLER SHAFT (With Bevel Gear)PROPELLER SHAFT (With Bevel Gear)
-
2115-811647A1 SHIMSHIM
-
2243-95293 PINION GEARPINION GEAR
-
2353-815066 SNAP RINGSNAP RING
-
2428-95371 KEYKEY
-
2532-95359 WATER TUBE ASSEMBLY
(Short)WATER TUBE ASSEMBLY
(Short) -
2532-953593 WATER TUBE ASSEMBLY
(Long)WATER TUBE ASSEMBLY
(Long) -
2625-953601 GROMMET, UpperGROMMET, Upper
-
2745-95290 DRIVESHAFT (Upper)
(Short)DRIVESHAFT (Upper)
(Short) -
2745-952903 DRIVESHAFT (Upper)
(Long)DRIVESHAFT (Upper)
(Long) -
2845-95369 DRIVESHAFT, LowerDRIVESHAFT, Lower
-
2995277 PIPE
(Short)PIPE
(Short) -
29952772 PIPE
(Long)PIPE
(Long) -
3017-815111Q02 SHEAR PIN
(Aluminum Propeller)SHEAR PIN
(Aluminum Propeller) -
3017-815111Q02 PIN
(Plastic Propeller)PIN
(Plastic Propeller) -
3148-815083A01 PROPELLER
(Plastic - 6)PROPELLER
(Plastic - 6) -
3148-815084A01 PROPELLER
(Aluminun- 6)PROPELLER
(Aluminun- 6) -
3148-815084A02 PROPELLER
(Aluminum - With Rubber Hub)PROPELLER
(Aluminum - With Rubber Hub) -
3148-815083A02 PROPELLER
(Plastic - 7)PROPELLER
(Plastic - 7) -
3218-95295 COTTER PINCOTTER PIN
-
-27-8M0082878 GASKET SET, Lower UnitGASKET SET, Lower Unit
