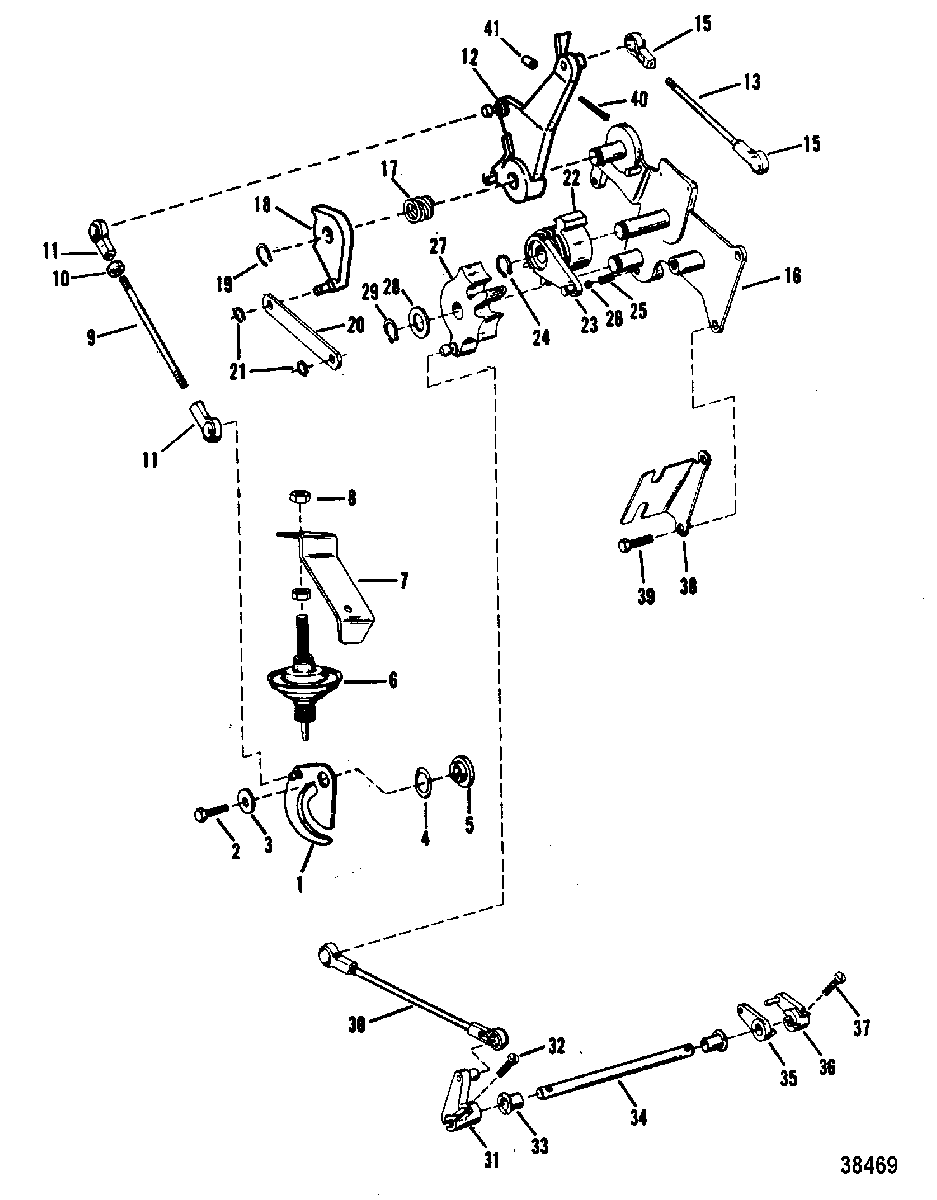

THROTTLE AND SHIFT LINKAGE(MERCURY)(MANUAL) для Mercury - 18XD 6443973 THRU 0B238463
-
№АртикулНазвание
-
117764A2 CAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowCAM, Throttle
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
117764A2 CAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpCAM, Throttle
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
210-400035 SCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & BelowSCREW, (M5 x 16)
SN# US-0B114230/Aus-9467987/Can-0A719660 & Below -
210-4000117 SCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & UpSCREW, (M5 x 20)
SN# US-0B114231/Aus-9467988/Can-0A719661 & Up -
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, (.312-24), SADHPOT TERMINALNUT, (.312-24), SADHPOT TERMINAL
-
998463A2 ROD ASSEMBLY, ThrottleROD ASSEMBLY, Throttle
-
1011-68219 NUT, (#10-32) Stainless Steel, LOCK-THROTTLE RODNUT, (#10-32) Stainless Steel, LOCK-THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
12433601 LEVER, CONTROLLEVER, CONTROL
-
13817429 TIMING RODTIMING ROD
-
158M0084742 SOCKET, TIMING RODSOCKET, TIMING ROD
-
1612863A1 PLATFORM, CONTROLPLATFORM, CONTROL
-
1724-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
1892362A1 LEVER, ACTUATINLEVER, ACTUATIN
-
1953-46250 RING, Retaining, ACTUATING AND CONTROL LEVERRING, Retaining, ACTUATING AND CONTROL LEVER
-
2092362A1 LINK, THROTTLE/ADVANCELINK, THROTTLE/ADVANCE
-
2153-86731 RETANINING RING, THROTTLE/ADVANCE LINKRETANINING RING, THROTTLE/ADVANCE LINK
-
2294085A1 GEARGEAR
-
2392362A1 LEVER, PRIMARYLEVER, PRIMARY
-
2453-46250 RING, Retaining, PRIMARY LEVER AND GEARRING, Retaining, PRIMARY LEVER AND GEAR
-
2424-930061 SPRING, DETENT BALLSPRING, DETENT BALL
-
2630-93008 BALL, DETENTBALL, DETENT
-
2794085A1 GEAR, SHIRTGEAR, SHIRT
-
2812-49339 WASHER, (.8125), SHIFT GEARWASHER, (.8125), SHIFT GEAR
-
2953-46250 RING, Retaining, SHIFT GEARRING, Retaining, SHIFT GEAR
-
30193852 SHIFT RODSHIFT ROD
-
3194084 LEVER, SHIFT RODLEVER, SHIFT ROD
-
3210-4001589 LEVER, Shift RodLEVER, Shift Rod
-
3323-60762 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
3487794 SHIFT SHAFT, HORIZONITALSHIFT SHAFT, HORIZONITAL
-
3593744 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3693928 LEVER, ROD ENDLEVER, ROD END
-
3710-4001588 SCREW, (M4 x 20), ROD END LEVERSCREW, (M4 x 20), ROD END LEVER
-
3894186 BRACKET, THROTTLE CABLE (EARLY MODELS)BRACKET, THROTTLE CABLE (EARLY MODELS)
-
3910-4000171 SCREW, (M6 x 16), BRACKET TO CYLINDER BLOCKSCREW, (M6 x 16), BRACKET TO CYLINDER BLOCK
-
4010-118591 SCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVERSCREW, (.190-32 x 1.75), IDLE STOP - CONTROL LEVER
-
4148039 CAP, CONTROL LEVER SCREWCAP, CONTROL LEVER SCREW
