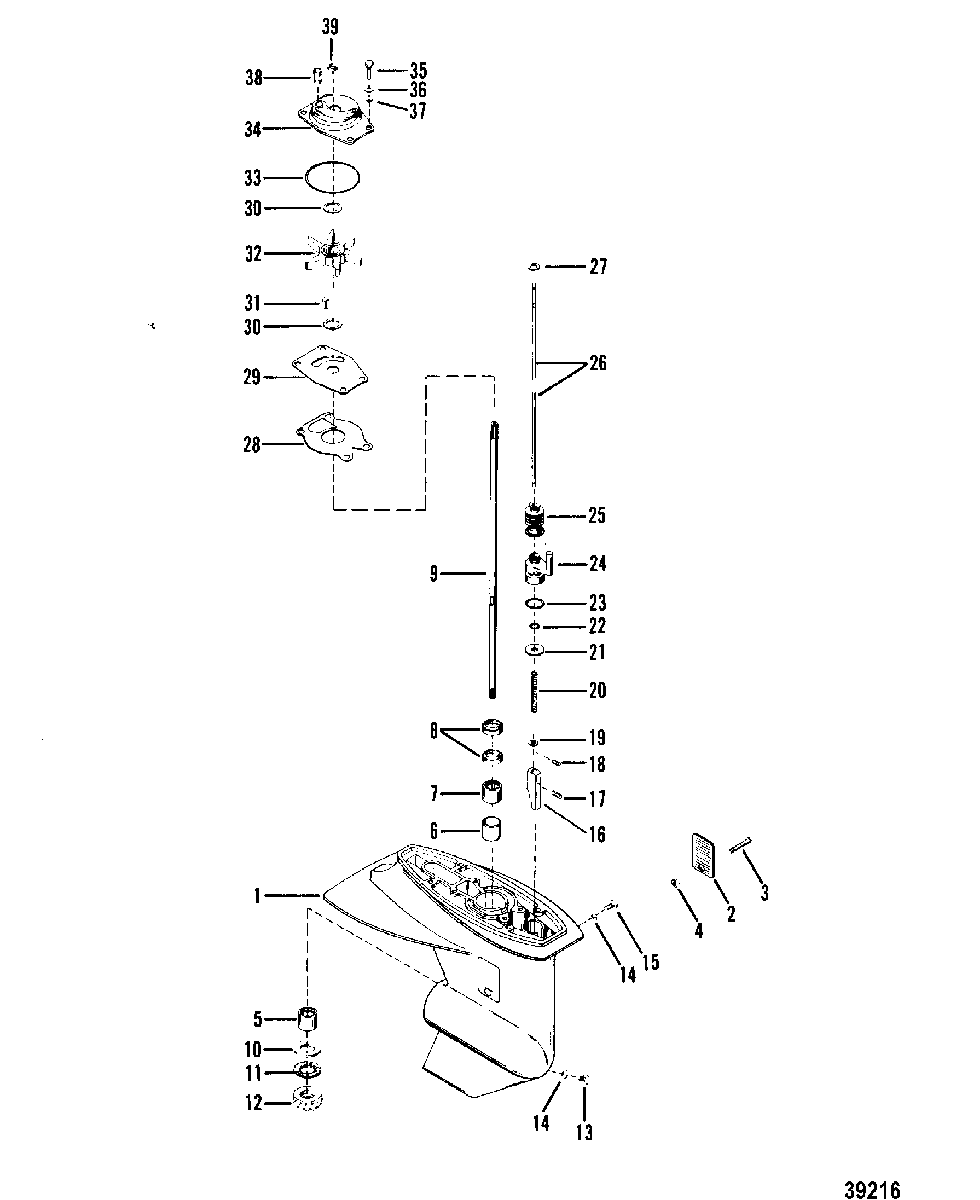

GEAR HOUSING(DRIVESHAFT) для Mercury - 18 9308306 THRU 9378115
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(SHORT SHAFT) -
-1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT)GEAR HOUSING ASSEMBLY, COMPLETE
(LONG SHAFT) -
11653-8157A6 GEAR HOUSING ASSEMBLY, BASICGEAR HOUSING ASSEMBLY, BASIC
-
235-98488 SCREEN, WATER INLET
STARBOARDSCREEN, WATER INLET
STARBOARD -
235-98487 SCREEN, WATER INLET
PORTSCREEN, WATER INLET
PORT -
310-40031112 SCREW, (M5 x 40), SCREEN TO GEAR HOUSINGSCREW, (M5 x 40), SCREEN TO GEAR HOUSING
-
411-400263 NUT, (M5), SCREEN SCREWNUT, (M5), SCREEN SCREW
-
531-85559 BEARING, Roller, LOWER (SEE NOTE)BEARING, Roller, LOWER (SEE NOTE)
-
623-85092 SLEEVE, UPPER ROLLING BEARINGSLEEVE, UPPER ROLLING BEARING
-
731-85558 BEARING, Roller, UPPERBEARING, Roller, UPPER
-
826-897154 SEAL, Oil, GEAR HOUSINGSEAL, Oil, GEAR HOUSING
-
945-98084 DRIVESHAFT
SHORT SHAFTDRIVESHAFT
SHORT SHAFT -
945-98085 DRIVESHAFT
LONG SHAFTDRIVESHAFT
LONG SHAFT -
1012-94056 WASHER, THRUST - DRIVESHAFT
(.080 THICK)WASHER, THRUST - DRIVESHAFT
(.080 THICK) -
1098861A1 WASHER, THRUST - DRIVESHAFT - SEE NOTE
(.234 THICK)WASHER, THRUST - DRIVESHAFT - SEE NOTE
(.234 THICK) -
1131-85560 BEARING, Thrust, DRIVESHAFT (SEE NOTE)BEARING, Thrust, DRIVESHAFT (SEE NOTE)
-
1243-85132 GEAR, PinionGEAR, Pinion
-
1322-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
1412-191833 WASHER, DRAIN AND FILLER SCREWWASHER, DRAIN AND FILLER SCREW
-
1510-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
1685562A1 CAM ASSEMBLY, SHIFTCAM ASSEMBLY, SHIFT
-
1717-85096 PIN, Drive, SHIFT CAMPIN, Drive, SHIFT CAM
-
1817-85593 PIN, (.078 x .437), SHIFT SHAFTPIN, (.078 x .437), SHIFT SHAFT
-
1912-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFTWASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT
-
2024-93007 SPRING, SHIFT SHAFTSPRING, SHIFT SHAFT
-
2112-85091 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2225-85594 O-RING, (.239 x .174), SHIFT SHAFTO-RING, (.239 x .174), SHIFT SHAFT
-
2325-35276 O-RING, SHIFT SHAFT RETAINERO-RING, SHIFT SHAFT RETAINER
-
2493878 RETAINER, SHIFT SHAFTRETAINER, SHIFT SHAFT
-
2585552001 BOOT, SHIFT SHAFTBOOT, SHIFT SHAFT
-
2685126 SHIFT SHAFT
SHORT SHAFTSHIFT SHAFT
SHORT SHAFT -
2686293 SHIFT SHAFT
LONG SHAFTSHIFT SHAFT
LONG SHAFT -
2712-29245 WASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT - UPPERWASHER, (.281 x .500 x .060) Stainless Steel, SHIFT SHAFT - UPPER
-
2827-993261 GASKET, WATER PUMPGASKET, WATER PUMP
-
2985083 FACE PLATEFACE PLATE
-
3012-8M0027721 WASHER, IMPELLERWASHER, IMPELLER
-
3128-8M0032838 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3247-8508910 IMPELLERIMPELLER
-
3325-69202 O-RING, WATER PUMPO-RING, WATER PUMP
-
3446-99157T2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
3510-400035 SCREW, (M5 x 16), WATER PUMP TO GEAR HOUSINGSCREW, (M5 x 16), WATER PUMP TO GEAR HOUSING
-
3612-89302 WASHER, (.203 x .406 x .040), WATER PUMP SCREWWASHER, (.203 x .406 x .040), WATER PUMP SCREW
-
3723-85095 BUSHING, WATER PUMP SCREWBUSHING, WATER PUMP SCREW
-
3826-85090001 SEAL, WATER TUBESEAL, WATER TUBE
-
3925-86203 O-RING, DRIVE SHAFT - RUBBERO-RING, DRIVE SHAFT - RUBBER
-
-27-85168A80 GASKET SETGASKET SET
-
-46-99157T2 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-85090A1 SEAL KIT, Water PumpSEAL KIT, Water Pump
