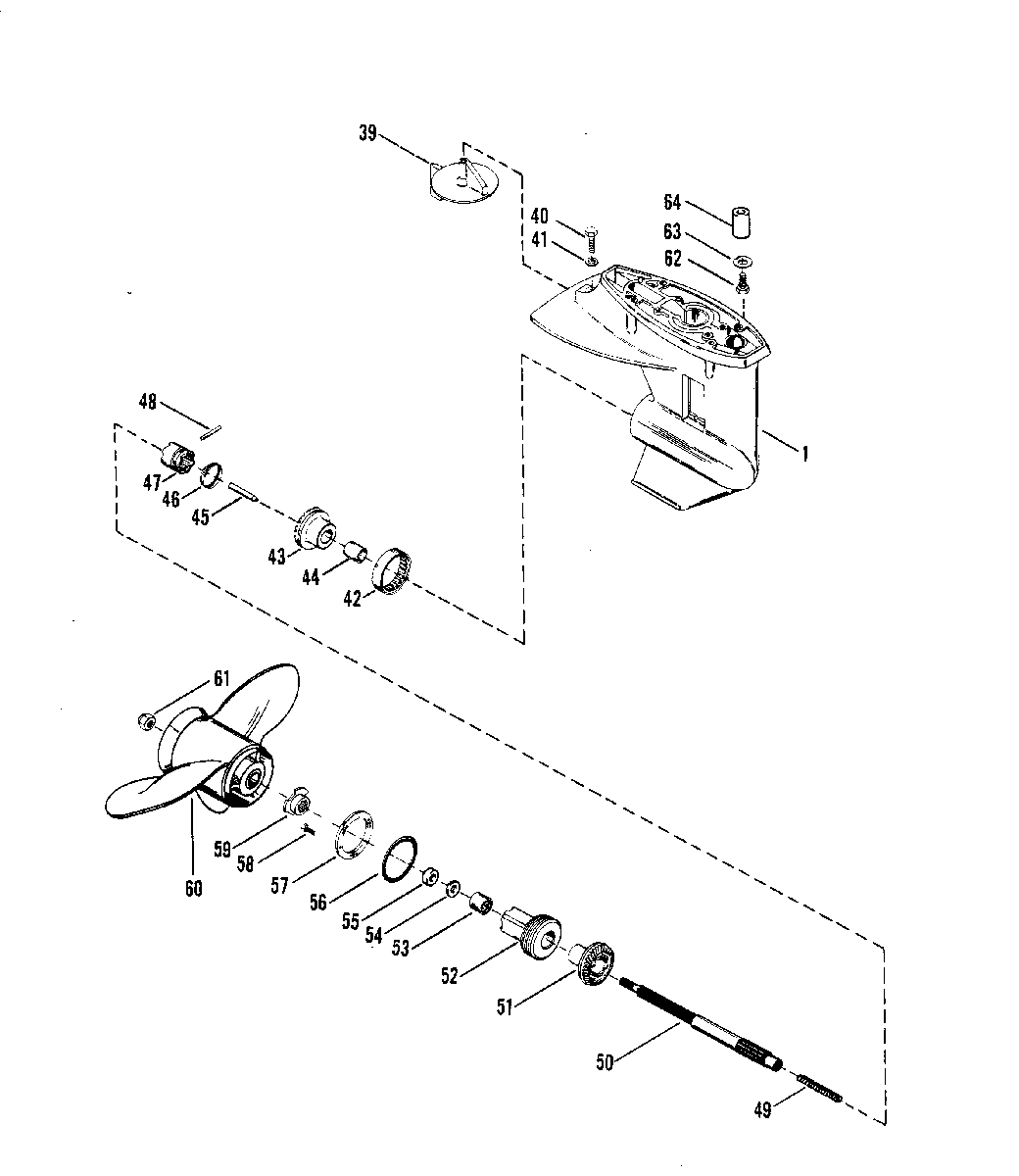

GEAR HOUSING (Prop Shaft) (Screw Inserted from Top) для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFTGEAR HOUSING ASSEMBLY, COMPLETE
SHORT SHAFT -
-1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFTGEAR HOUSING ASSEMBLY, COMPLETE
LONG SHAFT -
11600-8M0083538 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
3997-98432Q6 TRIM TABTRIM TAB
-
4010-4000355 SCREW, TRIM TAB (35MM)SCREW, TRIM TAB (35MM)
-
4112-8M0042642 WASHER, TRIM TAB SCREWWASHER, TRIM TAB SCREW
-
4231-8M0103470 ROLLER BEARING ASSEMBLY, TAPEREDROLLER BEARING ASSEMBLY, TAPERED
-
4343-44213T1 FORWARD GEARFORWARD GEAR
-
4423-85557 BUSHING, FORWARD GEARBUSHING, FORWARD GEAR
-
4585094 CAM FOLLOWERCAM FOLLOWER
-
4624-38114 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
4752-41040T CLUTCH, SLIDINGCLUTCH, SLIDING
-
4817-8M0020999 CROSS PPIN, CLUTCH TO PROPELLER SHAFTCROSS PPIN, CLUTCH TO PROPELLER SHAFT
-
4924-88680 SPRING, COMPRESSION - PROPELLER SHAFTSPRING, COMPRESSION - PROPELLER SHAFT
-
5044-8166231 PROPELLER SHAFTPROPELLER SHAFT
-
5143-99542T REVERSE GEARREVERSE GEAR
-
5299906T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
5331-21739 ROLLER BEARINGROLLER BEARING
-
5426-41132 OIL SEAL, BEARING CARRIER (INNER)OIL SEAL, BEARING CARRIER (INNER)
-
5526-41131 OIL SEAL, BEARING CARRIER (OUTER)OIL SEAL, BEARING CARRIER (OUTER)
-
5625-85549 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
5787293 PLATE, GEAR HOUSINGPLATE, GEAR HOUSING
-
5810-90883 SCREW, COVER TO GEAR HOUSING (16MM)SCREW, COVER TO GEAR HOUSING (16MM)
-
59858498 THRUST HUB ASSEMBLY, PROPELLERTHRUST HUB ASSEMBLY, PROPELLER
-
6048-19640A40 PROPELLER ASSEMBLYPROPELLER ASSEMBLY
-
6111-88228 PROPELLER NUTPROPELLER NUT
-
6210-4000378 SCREW, GEAR HOUSING (25MM)SCREW, GEAR HOUSING (25MM)
-
6312-43328 WASHER, GEAR HOUSING SCREWWASHER, GEAR HOUSING SCREW
-
6423-41589 SPACER, GEAR HOUSING SCREWSPACER, GEAR HOUSING SCREW
-
--26-85090A1 SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12.SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12. -
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
