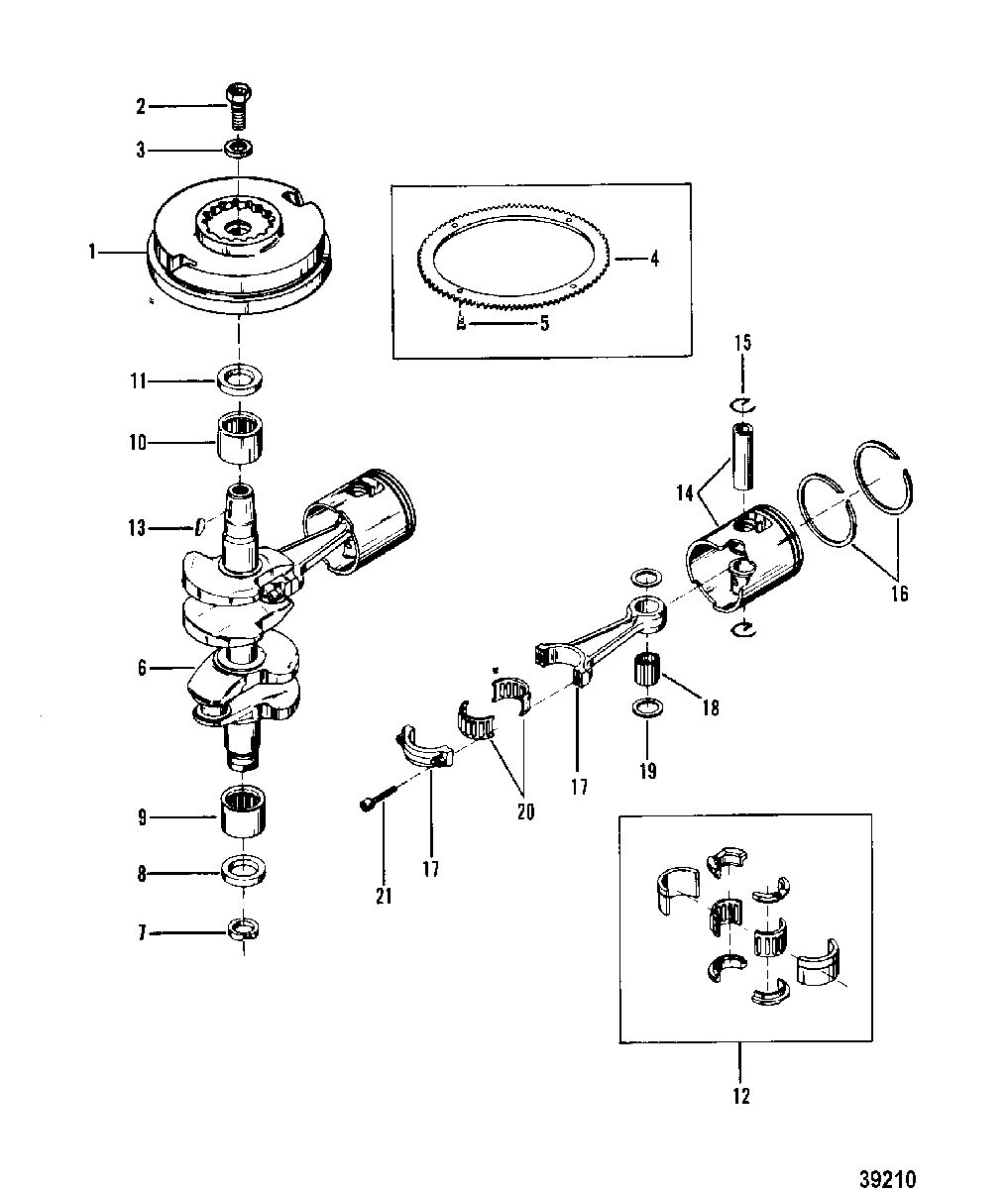

CRANKSHAFT, PISTONS AND FLYWHEEL для Mercury - 18 5837437 THRU 6416712
-
№АртикулНазвание
-
1258-859232T15 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
210-97359A1 SCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFTSCREW ASSEMBLY, FLYWHEEL TO CRANKSHAFT
-
312-86496 WASHER, FLYWHEEL SCREWWASHER, FLYWHEEL SCREW
-
443-99301 RING GEAR, FLYWHEEL
Electric SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowRING GEAR, FLYWHEEL
Electric SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
443-99301 RING GEAR, FLYWHEEL
Electric SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpRING GEAR, FLYWHEEL
Electric SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
510-88190313 SCREW, (M5 x 13), RING GEAR TO FLYWHEEL
ElectricSCREW, (M5 x 13), RING GEAR TO FLYWHEEL
Electric -
6464-8978T2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
785981 SEAL, CrankshaftSEAL, Crankshaft
-
826-85107 SEAL, OilSEAL, Oil
-
931-85113T BEARING, Roller, CRANKSHAFT - LOWERBEARING, Roller, CRANKSHAFT - LOWER
-
1031-85114T BEARING, Roller - Upper, CRANKSHAFTBEARING, Roller - Upper, CRANKSHAFT
-
1126-859741 SEAL, Oil, CRANKSHAFT - UPPERSEAL, Oil, CRANKSHAFT - UPPER
-
128M0113968 BEARING ASSEMBLY, CENTER MAINBEARING ASSEMBLY, CENTER MAIN
-
1328-20094 KEY, Woodruff, FLYWHEEL DRIVEKEY, Woodruff, FLYWHEEL DRIVE
-
14872-9533T38 PISTON ASSEMBLYPISTON ASSEMBLY
-
1540-828119 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1639-8M0096518 RING SET, PistonRING SET, Piston
-
17630-8329A2 CONNECTING ROD ASSEMBLY
SN# USA-6239752/Belgium-9378115/Canada-7200762 & BelowCONNECTING ROD ASSEMBLY
SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below -
17630-8835A4 CONNECTING ROD ASSEMBLY
SN# USA-6239753/Belgium-9378116/Canada-7200763 & UpCONNECTING ROD ASSEMBLY
SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up -
1829-20063 BEARING, Needle, PISTON END
SN# USA-6239752/Belgium-9378115/Canada-7200762 & BelowBEARING, Needle, PISTON END
SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below -
1829-98295 BEARING, Needle, PISTON END
SN# USA-6239753/Belgium-9378116/Canada-7200763 & UpBEARING, Needle, PISTON END
SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up -
1912-85175 WASHER, LOCATING - NEEDLE BEARING
SN# USA-6239752/Belgium-9378115/Canada-7200762 & BelowWASHER, LOCATING - NEEDLE BEARING
SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below -
1912-8M0012294 WASHER, LOCATING - NEEDLE BEARING
SN# USA-6239753/Belgium-9378116/Canada-7200763 & UpWASHER, LOCATING - NEEDLE BEARING
SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up -
2031-879877A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2110-4008225 SCREW, CONNECTING ROD (25MM)
SN# USA-6239752/Belgium-9378115/Canada-7200762 & BelowSCREW, CONNECTING ROD (25MM)
SN# USA-6239752/Belgium-9378115/Canada-7200762 & Below -
2110-4008225 SCREW, (M6 x 25), CONNECTING ROD
SN# USA-6239753/Belgium-9378116/Canada-7200763 & UpSCREW, (M6 x 25), CONNECTING ROD
SN# USA-6239753/Belgium-9378116/Canada-7200763 & Up -
2227-85168A80 GASKET SETGASKET SET
-
-879732T89 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
