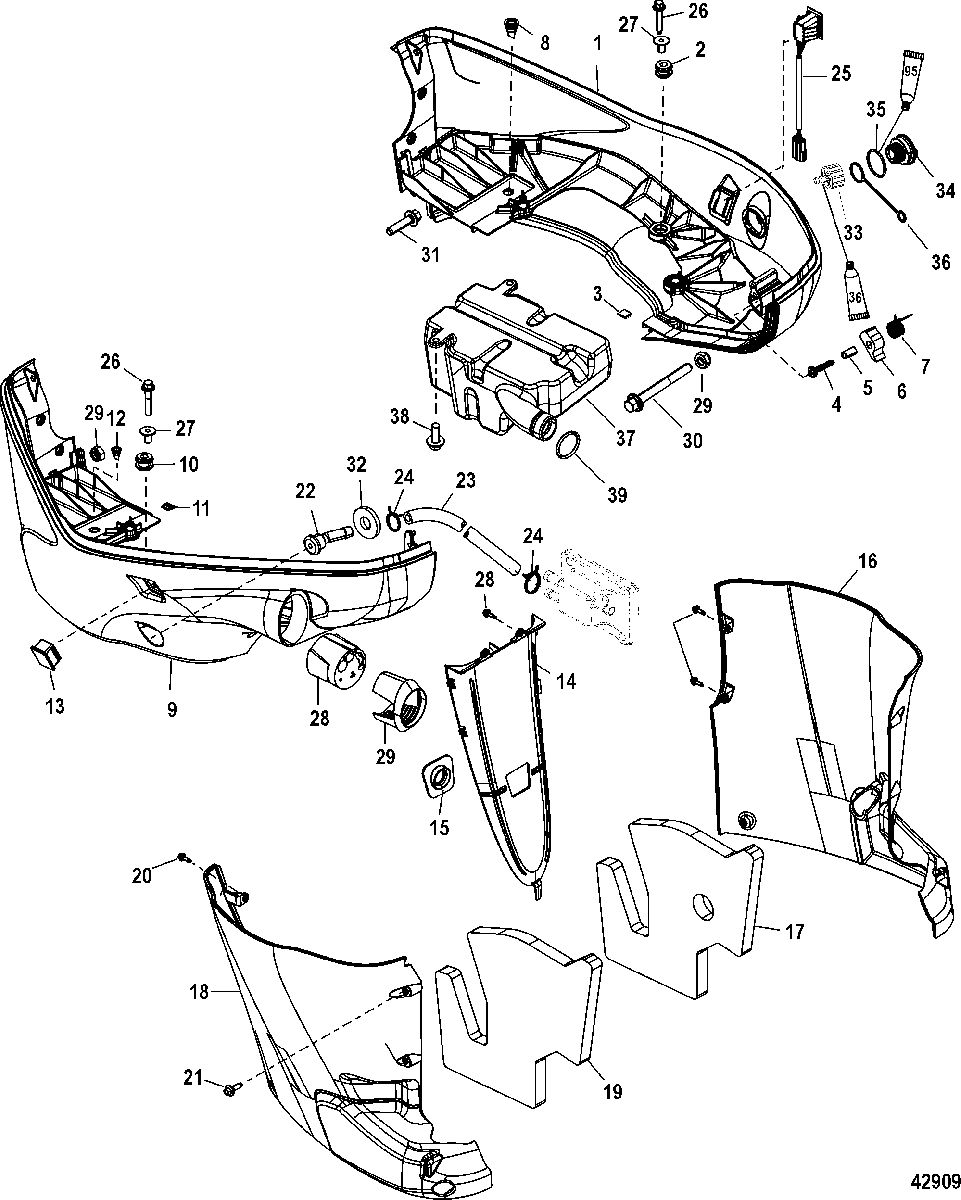

Rear Cowl для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 1B381712 THRU 1B517158

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Pan Assembly-Complete
    NOT SOLD SEPARATE, Pan Assembly-Complete
  • 1
    895846A08 PAN ASSEMBLY, Port
    SN# 1B422905 & Below
    PAN ASSEMBLY, Port
    SN# 1B422905 & Below
  • 1
    895846A08 PAN ASSEMBLY, Port
    SN# 1B422906 & Up
    PAN ASSEMBLY, Port
    SN# 1B422906 & Up
  • 2
    25-896671 GROMMET
    GROMMET
  • 3
    896865 SEAL, Front
    Note: Installed on Starboard Pan - Serial #1B422906 and Up
    SEAL, Front
    Note: Installed on Starboard Pan - Serial #1B422906 and Up
  • 4
    10-888950020 SCREW, (M4 x 20 mm)
    SCREW, (M4 x 20 mm)
  • 5
    23-898408 SPACER
    SPACER
  • 6
    898354 PAWL
    PAWL
  • 7
    24-898353 SPRING
    SPRING
  • 8
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 9
    895846A08 PAN ASSEMBLY, Starboard
    SN# USA-1B422905 & Below
    PAN ASSEMBLY, Starboard
    SN# USA-1B422905 & Below
  • 9
    895846A08 PAN ASSEMBLY, Starboard
    SN# USA-1B422906 & Up
    PAN ASSEMBLY, Starboard
    SN# USA-1B422906 & Up
  • 10
    25-896671 GROMMET
    GROMMET
  • 11
    896974 SEAL, Back
    SEAL, Back
  • 12
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 13
    19-897203 PLUG
    PLUG
  • 14
    896618A02 COVER ASSEMBLY, Rear
    COVER ASSEMBLY, Rear
  • 15
    896924 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • 16
    897593T02 CHAP ASSEMBLY, Port
    CHAP ASSEMBLY, Port
  • 17
    897204 SOUND BLANKET, Starboard
    SOUND BLANKET, Starboard
  • 18
    897593T02 CHAP ASSEMBLY, Starboard
    CHAP ASSEMBLY, Starboard
  • 19
    897205 SOUND BLANKET, Port
    SOUND BLANKET, Port
  • 20
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 21
    8M0005773 SCREW, (M6)
    SCREW, (M6)
  • 22
    22-895797001 FITTING
    FITTING
  • 23
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)
  • 24
    54-895851 CLAMP, (8.00 Inches)
    CLAMP, (8.00 Inches)
  • 25
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 26
    10-897964 SCREW, (M6)
    SCREW, (M6)
  • 27
    23-8M8023048 BUSHING
    BUSHING
  • 28
    25-897169 GROMMET
    GROMMET
  • 29
    8M0043519 ADAPTOR
    ADAPTOR
  • 30
    10-897657055 SCREW, (M6 x 55)
    SCREW, (M6 x 55)
  • 31
    10-897657025 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 32
    23-892427 SPACER
    SPACER
  • 33
    22-885361A01 FITTING ASSEMBLY, Flush
    FITTING ASSEMBLY, Flush
  • 34
    22-888958001 PLUG
    PLUG
  • 35
    25-888957 O-RING
    O-RING
  • 36
    889823001 TETHER
    TETHER
  • 37
    896925A01 PLENUM KIT, Exhaust
    PLENUM KIT, Exhaust
  • 38
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 39
    25-889828 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
