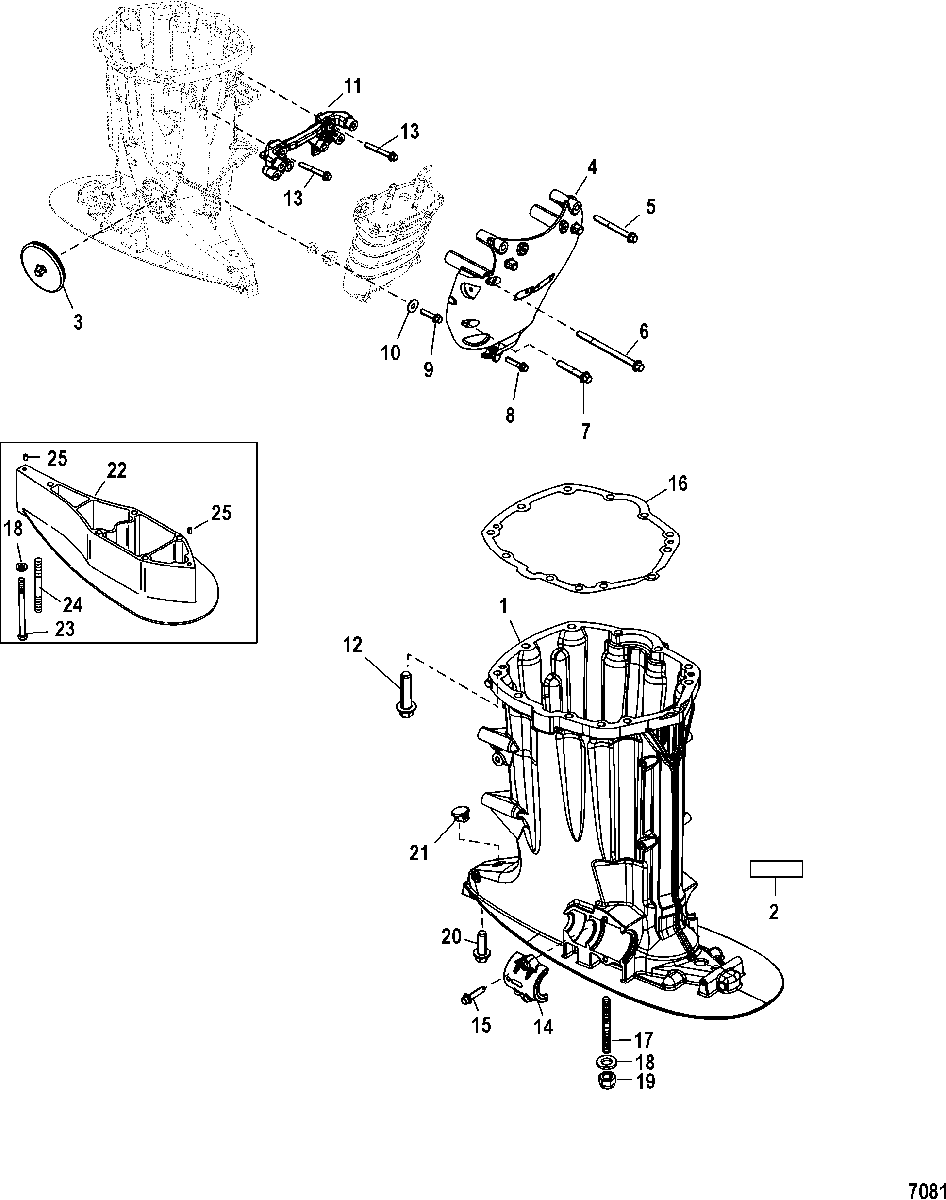

Driveshaft Housing для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711

  • №
    Артикул
    Название
  • 1
    1500-895305T01 HOUSING, Driveshaft
    HOUSING, Driveshaft
  • 2
    NSS NOT SOLD SEPARATE, Decal-Oil Drain
    NOT SOLD SEPARATE, Decal-Oil Drain
  • 3
    25-889568001 GROMMET
    GROMMET
  • 4
    889656T01 SHROUD
    SHROUD
  • 5
    10-8M0103818 SCREW, (M8 x 75)
    SCREW, (M8 x 75)
  • 6
    10-8M0103812 SCREW, (M8 x 120)
    SCREW, (M8 x 120)
  • 7
    10-8M0103816 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 8
    10-8M0103815 SCREW, (M8 x 40)
    SCREW, (M8 x 40)
  • 9
    10-8M0103814 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 10
    12-817274 WASHER, (.344 x 1.00 x .063) Stainless Steel
    WASHER, (.344 x 1.00 x .063) Stainless Steel
  • 11
    896210T BRACKET
    BRACKET
  • 12
    10-8M0103822 SCREW, (M10 x 40)
    SCREW, (M10 x 40)
  • 13
    10-8M0103816 SCREW, (M8 x 50)
    SCREW, (M8 x 50)
  • 14
    896095C01 CLAMP, Lower Mount
    CLAMP, Lower Mount
  • 15
    10-8M0103814 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 16
    27-895827 GASKET
    GASKET
  • 17
    16-8M0070951 STUD, (M12 x 52)
    Long
    STUD, (M12 x 52)
    Long
  • 18
    12-856982 WASHER, (.500 x .810 x .090) Stainless Steel
    WASHER, (.500 x .810 x .090) Stainless Steel
  • 19
    11-896895 NUT, (M12)
    NUT, (M12)
  • 20
    10-8M0102995 SCREW, (M12 x 35)
    Long
    SCREW, (M12 x 35)
    Long
  • 21
    19-824928001 PLUG, Rubber, Use where Applicable
    PLUG, Rubber, Use where Applicable
  • 22
    8M0105088 SPACER
    X-Long - No Engraving
    SPACER
    X-Long - No Engraving
  • 22
    880647T03 SPACER
    X-Long - Engraved - Do not Remove Spacer
    SPACER
    X-Long - Engraved - Do not Remove Spacer
  • 23
    10-857137 SCREW, (M12 x 160)
    X-Long
    SCREW, (M12 x 160)
    X-Long
  • 24
    16-8M0008047 STUD, (M12 x 179)
    X-Long
    STUD, (M12 x 179)
    X-Long
  • 25
    17-43044 PIN, Dowel - Without Hole (.375 x .625)
    X-Long
    PIN, Dowel - Without Hole (.375 x .625)
    X-Long
  • -
    61-8M0055433 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
