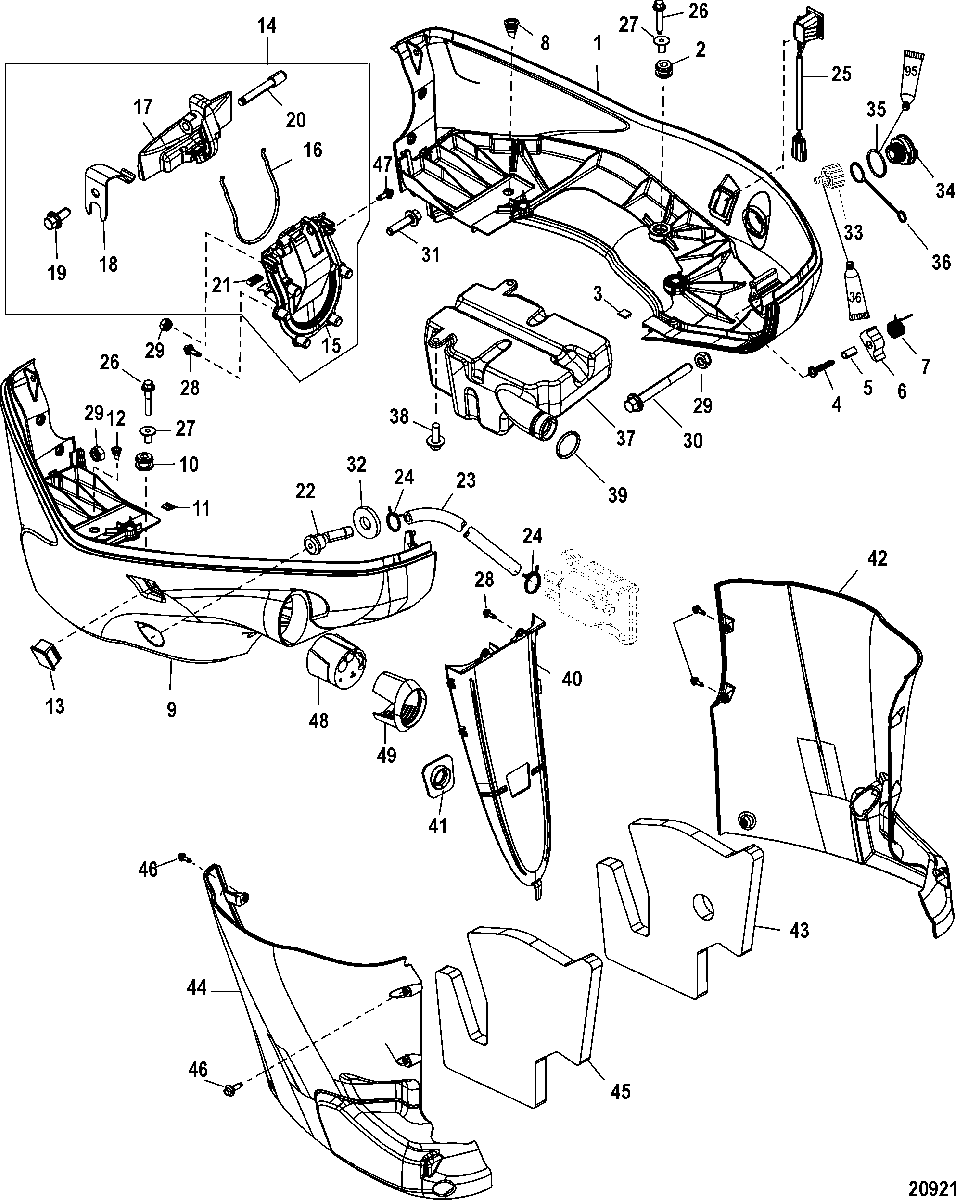

Rear Cowl для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 0P419487 THRU 0P464487

  • №
    Артикул
    Название
  • -
    NSS NOT SOLD SEPARATE, Pan Assembly-Complete
    NOT SOLD SEPARATE, Pan Assembly-Complete
  • 1
    895846A08 PAN ASSEMBLY, Port
    PAN ASSEMBLY, Port
  • 2
    25-896671 GROMMET
    GROMMET
  • 3
    896865 SEAL, Front
    SEAL, Front
  • 4
    10-888950020 SCREW, (M4 x 20 mm)
    SCREW, (M4 x 20 mm)
  • 5
    23-898408 SPACER
    SPACER
  • 6
    898354 PAWL
    PAWL
  • 7
    24-898353 SPRING
    SPRING
  • 8
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 9
    895846A08 PAN ASSEMBLY, Starboard
    PAN ASSEMBLY, Starboard
  • 10
    25-896671 GROMMET
    GROMMET
  • 11
    896974 SEAL, Back
    SEAL, Back
  • 12
    888819002 DRAIN, Cowl
    DRAIN, Cowl
  • 13
    19-897203 PLUG
    PLUG
  • 14
    NSS NOT SOLD SEPARATE, Latch Assembly-Complete
    NOT SOLD SEPARATE, Latch Assembly-Complete
  • 15
    8M0113897 PANEL ASSEMBLY, Access
    PANEL ASSEMBLY, Access
  • 16
    896927 SEAL
    SEAL
  • 17
    896928A01 LEVER ASSEMBLY, Rail Latch
    LEVER ASSEMBLY, Rail Latch
  • 18
    24-896933 SPRING, Leaf
    SPRING, Leaf
  • 19
    10-88552514 SCREW, (M6 x 14) Stainless Steel
    SCREW, (M6 x 14) Stainless Steel
  • 20
    17-896932 PIN, Lever
    PIN, Lever
  • 21
    898476 BUTTON, Latch
    BUTTON, Latch
  • 22
    22-895797001 FITTING
    FITTING
  • 23
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 21 Inches)
  • 24
    54-895851 CLAMP, (8.00 Inches)
    CLAMP, (8.00 Inches)
  • 25
    87-8M0042300 SWITCH, Trim
    SWITCH, Trim
  • 26
    10-897964 SCREW, (M6)
    SCREW, (M6)
  • 27
    23-8M8023048 BUSHING
    BUSHING
  • 28
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 29
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 30
    10-897657055 SCREW, (M6 x 55)
    SCREW, (M6 x 55)
  • 31
    10-897657025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 32
    23-892427 SPACER
    SPACER
  • 33
    22-885361A01 FITTING ASSEMBLY, Flush
    FITTING ASSEMBLY, Flush
  • 34
    22-888958001 PLUG
    PLUG
  • 35
    25-888957 O-RING
    O-RING
  • 36
    889823001 TETHER
    TETHER
  • 37
    896925A01 PLENUM, Exhaust
    (Mounting tabs have 15mm outside diameter)
    PLENUM, Exhaust
    (Mounting tabs have 15mm outside diameter)
  • 37
    896925A01 PLENUM KIT, Exhaust
    (Mounting tabs have 18mm outside diameter)
    PLENUM KIT, Exhaust
    (Mounting tabs have 18mm outside diameter)
  • 38
    10-892073002 SHOULDER SCREW, (M6)
    (Use with exhaust plenum that has mounting tabs of 18mm outside diameter)
    SHOULDER SCREW, (M6)
    (Use with exhaust plenum that has mounting tabs of 18mm outside diameter)
  • 38
    10-4010620 SCREW, (M6 x 20) Stainless Steel
    (Use with exhaust plenum that has mounting tabs of 15mm outside diameter)
    SCREW, (M6 x 20) Stainless Steel
    (Use with exhaust plenum that has mounting tabs of 15mm outside diameter)
  • 39
    25-889828 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 40
    896618A02 COVER ASSEMBLY, Rear
    COVER ASSEMBLY, Rear
  • 41
    896924 BOOT, Idle Exhaust
    BOOT, Idle Exhaust
  • -
    NSS NOT SOLD SEPARATE, Chap Assembly (Starboard and Port)
    NOT SOLD SEPARATE, Chap Assembly (Starboard and Port)
  • 42
    897593T02 CHAP ASSEMBLY, Port
    CHAP ASSEMBLY, Port
  • 43
    897204 SOUND BLANKET, Starboard
    SOUND BLANKET, Starboard
  • 44
    897593T02 CHAP ASSEMBLY, Starboard
    CHAP ASSEMBLY, Starboard
  • 45
    897205 SOUND BLANKET, Port
    SOUND BLANKET, Port
  • 46
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 47
    8M0005773 SCREW, (M6)
    SCREW, (M6)
  • 48
    25-897169 GROMMET
    GROMMET
  • 49
    8M0043519 ADAPTOR
    ADAPTOR
