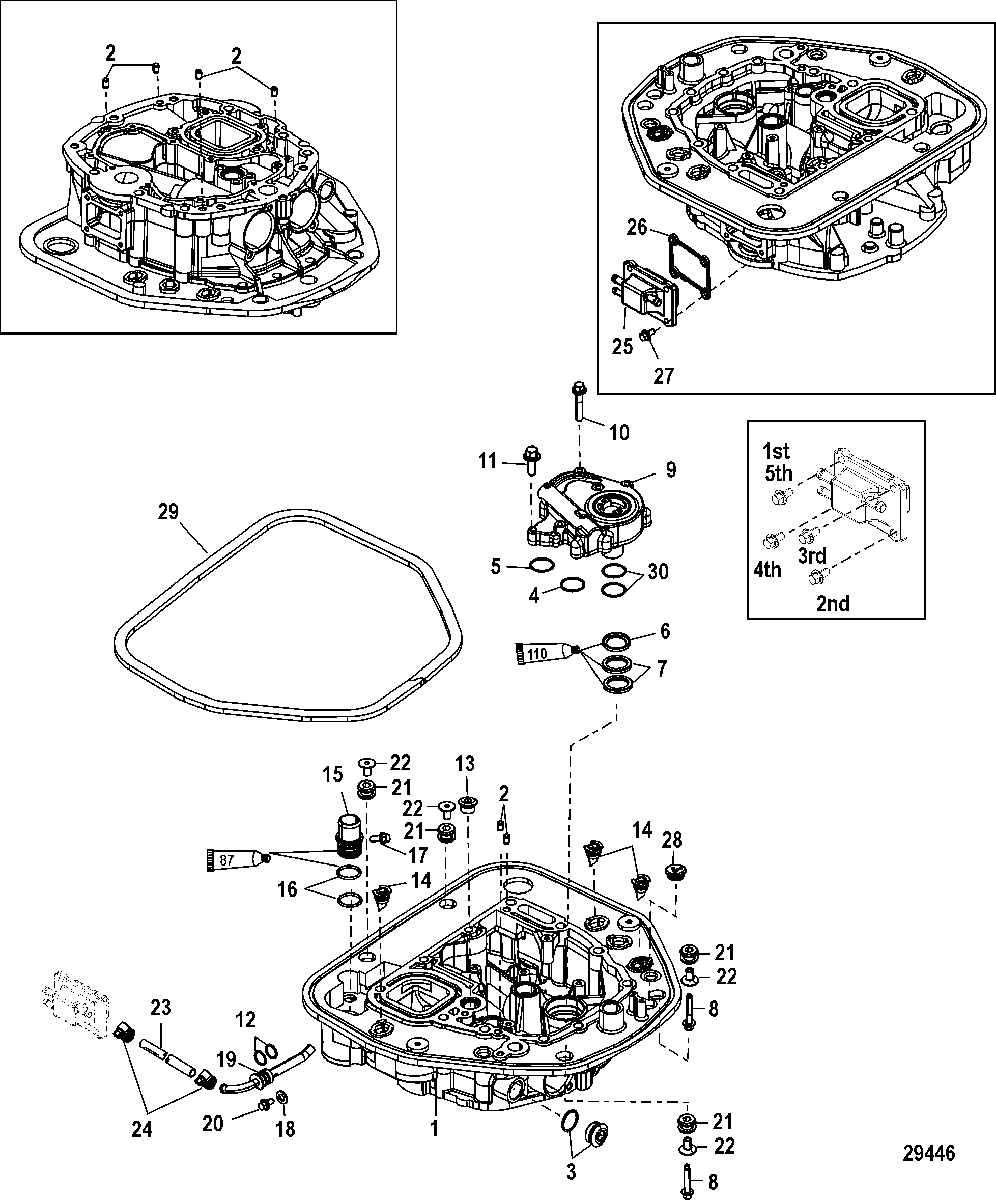

Oil Pump/Adaptor Plate-Upper для Mercury - 150 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up
-
№АртикулНазвание
-
1896689A02 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-892228 PIN, DowelPIN, Dowel
-
319-896951 PLUG, (24 mm)PLUG, (24 mm)
-
425-897134 O-RING, (1.051 x 1.070) (Inlet)O-RING, (1.051 x 1.070) (Inlet)
-
525-897135 O-RING, (.864 x .070) (Outlet)O-RING, (.864 x .070) (Outlet)
-
626-8M0033928 SEAL, OilSEAL, Oil
-
726-884462 SEAL, WaterSEAL, Water
-
810-897964 SCREW, (M6)SCREW, (M6)
-
9892894T05 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
1010-8M0103810 SCREW, (M6 x 45 MM) Stainless SteelSCREW, (M6 x 45 MM) Stainless Steel
-
1110-88552535 SCREW, (M6 x 35 MM) Stainless SteelSCREW, (M6 x 35 MM) Stainless Steel
-
1225-892446 O-RING, (14 X 1.78 MM)O-RING, (14 X 1.78 MM)
-
1319-8M0027347 PLUG, (M18 x 1.5)PLUG, (M18 x 1.5)
-
14888819002 DRAIN, CowlDRAIN, Cowl
-
1522-896934A02 FITTING ASSEMBLY, DumpFITTING ASSEMBLY, Dump
-
1625-26317 O-RINGO-RING
-
1710-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
1812-4002316 WASHERWASHER
-
1922-896547001 FITTINGFITTING
-
2010-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
2125-896671 GROMMETGROMMET
-
2223-8M8023048 BUSHINGBUSHING
-
2332-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 21 Inches)TUBING, (.312) (70.00 Inches Bulk) (Cut to 21 Inches)
-
2454-815504104 CLAMP, Worm GearCLAMP, Worm Gear
-
25892562T01 HOUSING, ManifoldHOUSING, Manifold
-
26892117 SEALSEAL
-
2710-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
2825-897433001 GROMMETGROMMET
-
29896864001 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
3025-8M0034912 O-RING, M3.78 X 21.32O-RING, M3.78 X 21.32
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
