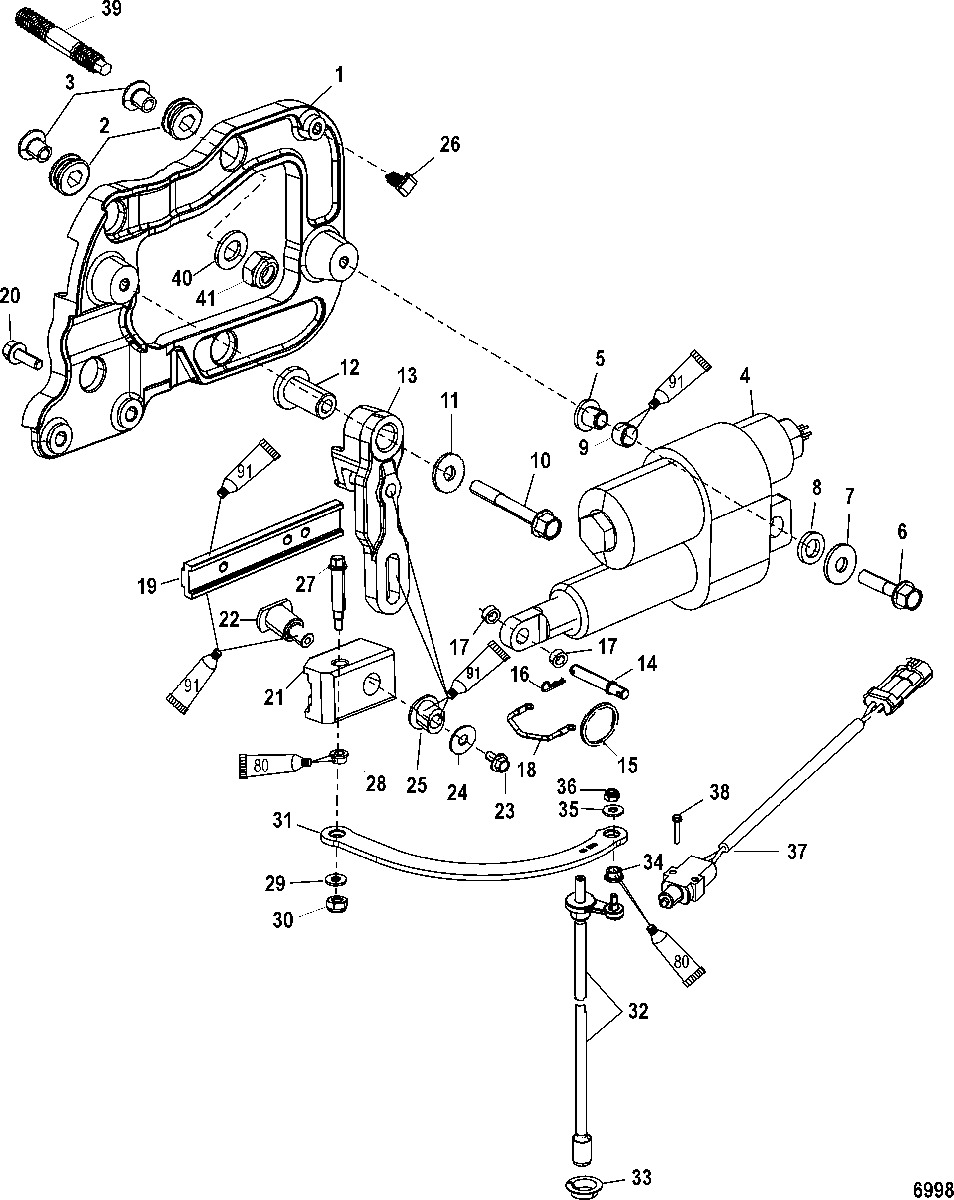

Shift Components(Serial Number 1B290522 and Below) для Mercury - 150 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Acurator Plate Assembly-CompleteNOT SOLD SEPARATE, Acurator Plate Assembly-Complete
-
1895739T BRACKET, ShiftBRACKET, Shift
-
225-855362001 GROMMETGROMMET
-
323-855364 BUSHINGBUSHING
-
48M0124413 SHIFT ACTUATORSHIFT ACTUATOR
-
523-884532001 BUSHINGBUSHING
-
610-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
712-898097 WASHERWASHER
-
812-889661 WASHER, RubberWASHER, Rubber
-
923-888589 WEAR SLEEVEWEAR SLEEVE
-
1010-8M0103817 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
1112-898097 WASHERWASHER
-
1223-884554 BUSHINGBUSHING
-
13895737 BELL CRANKBELL CRANK
-
1417-895736 PINPIN
-
15885569 SPLIT RINGSPLIT RING
-
16NSS NOT SOLD SEPARATE, Cotter Pin (See Service Bulletin 2003-10)NOT SOLD SEPARATE, Cotter Pin (See Service Bulletin 2003-10)
-
17884599 SPACERSPACER
-
1884-88807A6 CABLE ASSEMBLY, (3.50 Inches) BlackCABLE ASSEMBLY, (3.50 Inches) Black
-
19896212 RAIL SHIFT SLIDERAIL SHIFT SLIDE
-
2010-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
21895738 SHIFT SLIDERSHIFT SLIDER
-
2223-884555 BUSHINGBUSHING
-
2310-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
2412-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
25887901 BUSHINGBUSHING
-
2654-828991T CLIPCLIP
-
2716-896544 STUDSTUD
-
2823-896551 BUSHINGBUSHING
-
2912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
31895742 SHIFT LINKSHIFT LINK
-
328M0091613 LEVER, Shift Shaft
(Long)LEVER, Shift Shaft
(Long) -
328M0091614 LEVER, Shift Shaft
(X-Long)LEVER, Shift Shaft
(X-Long) -
3323-74647 NYLINERNYLINER
-
3423-896551 BUSHINGBUSHING
-
3512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3787-8M0052939 SWITCHSWITCH
-
3810-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
3916-8M0022167 STUD, (M8 x 50)STUD, (M8 x 50)
-
4012-4002318 WASHERWASHER
-
4111-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
