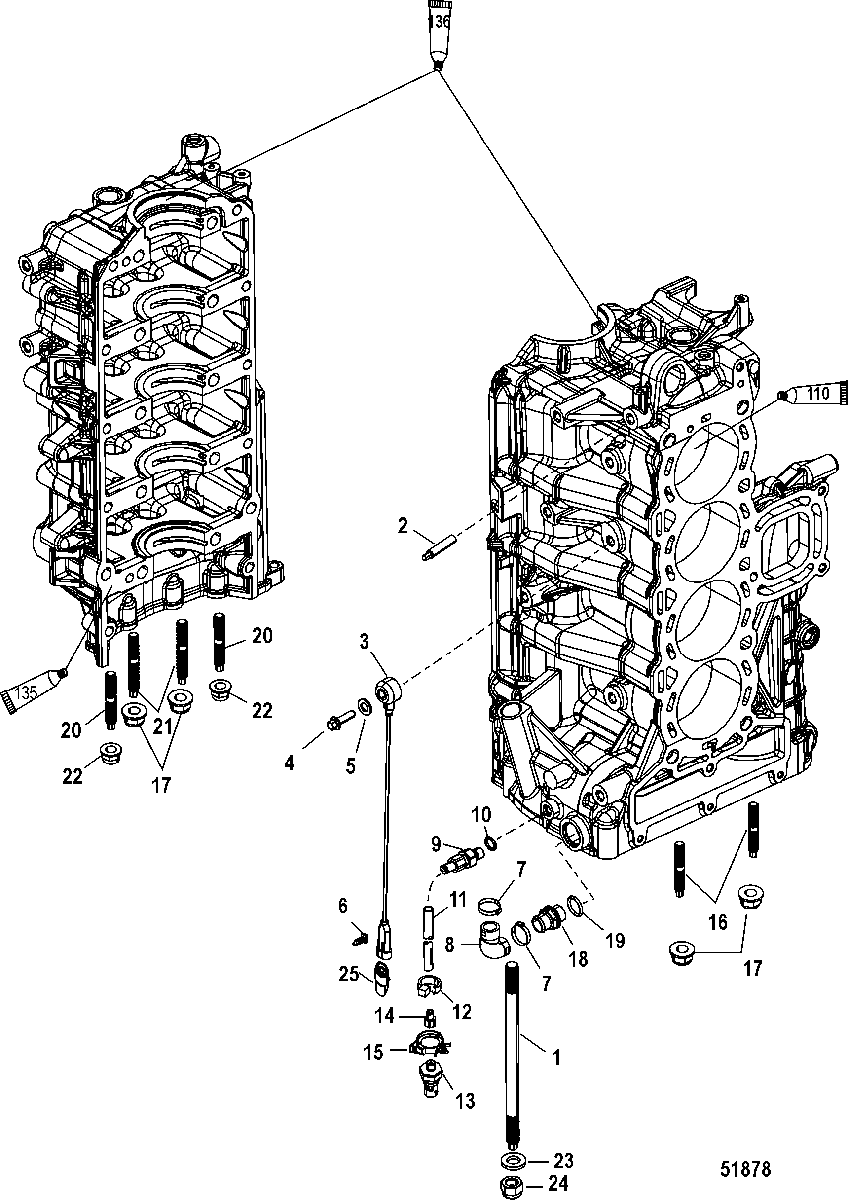

Port Cylinder Block Components для Mercury - 150 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up
-
№АртикулНазвание
-
116-8M0022165 STUD, (M10 x 175)STUD, (M10 x 175)
-
216-8M0022162 STUDSTUD
-
38M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
410-8M0103830 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
512-4002319 WASHERWASHER
-
654-828991T CLIPCLIP
-
754-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
832-885544002 HOSE
SN# 1B842419 & Below, 1B870105 THRU 1B870852HOSE
SN# 1B842419 & Below, 1B870105 THRU 1B870852 -
832-8M0043736 HOSE
SN# 1B842420 thru 1B870104, 1B870853 & UpHOSE
SN# 1B842420 thru 1B870104, 1B870853 & Up -
922-896094A01 FITTING ASSEMBLYFITTING ASSEMBLY
-
1025-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1132-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 21.5 Inches)TUBING, (52.00 Inches Bulk), To Water Pressure Sensor (Cut to 21.5 Inches)
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
13881879T26 SENSOR ASSEMBLY, Pressure, WaterSENSOR ASSEMBLY, Pressure, Water
-
1422-892403 FITTINGFITTING
-
1554-883066 CLIP, (.865)CLIP, (.865)
-
1616-8M0000274 STUD, (M8 x 49)STUD, (M8 x 49)
-
1711-826365 NUT, (M8)NUT, (M8)
-
1822-885517A05 FITTING ASSEMBLYFITTING ASSEMBLY
-
1925-892077 O-RINGO-RING
-
2016-8M0022166 STUD, (M10 x 54)STUD, (M10 x 54)
-
2116-8M0000275 STUD, (M8 x 55)STUD, (M8 x 55)
-
2211-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2312-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2411-884412 NUTNUT
-
25893388A02 CAP, Resitor - 2 Pin, 20K OhmCAP, Resitor - 2 Pin, 20K Ohm
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-896499A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
