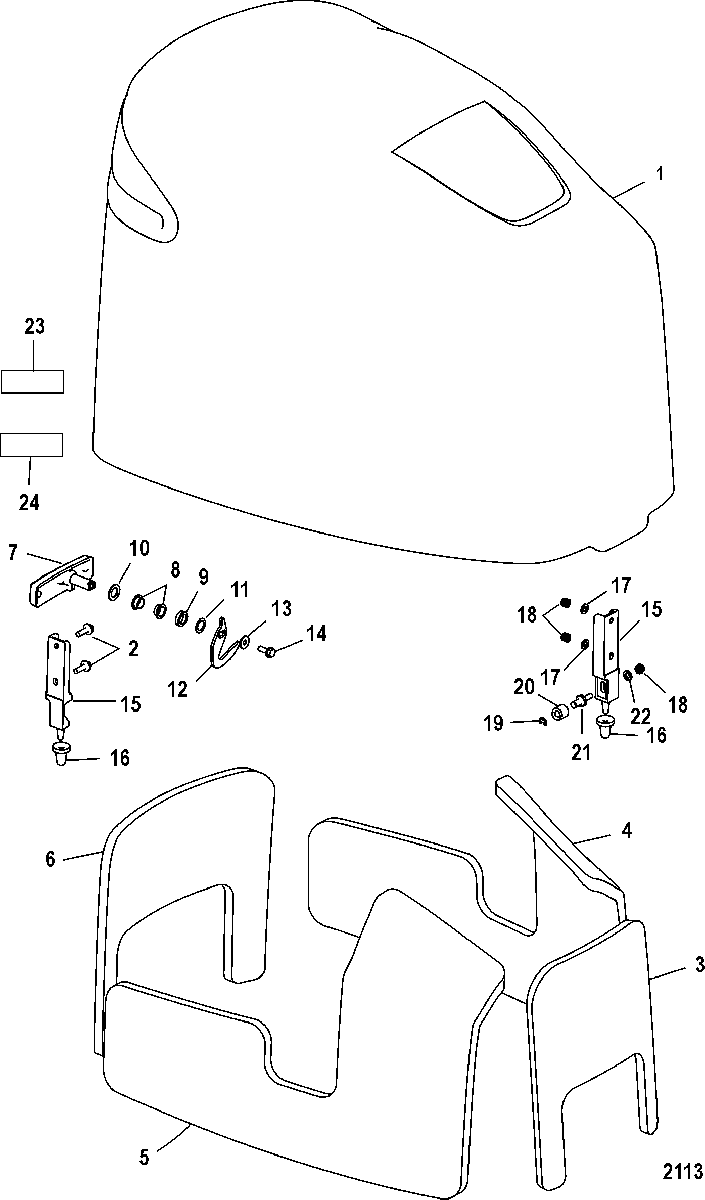

Top Cowl для Mercury - 150 Pro XS (2.5L) 1B690542 & Up
-
№АртикулНазвание
-
1100-8M0075376 TOP COWL ASSEMBLY, Includes all Decals except Horsepower
SN# 1B934545 & BelowTOP COWL ASSEMBLY, Includes all Decals except Horsepower
SN# 1B934545 & Below -
1100-8M0083588 TOP COWL ASSEMBLY, Includes all Decals except Horsepower
SN# 1B934546 & UpTOP COWL ASSEMBLY, Includes all Decals except Horsepower
SN# 1B934546 & Up -
1100-8M0075373 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
1100-8M0075375 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
-888167 BLOCK, FillerBLOCK, Filler
-
210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
3883019A02 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
5NSS NOT SOLD SEPARATE, Sound Blanket-StarboardNOT SOLD SEPARATE, Sound Blanket-Starboard
-
6NSS NOT SOLD SEPARATE, Sound Blanket-RearNOT SOLD SEPARATE, Sound Blanket-Rear
-
7831207A16 HANDLE KIT, Cowl LatchHANDLE KIT, Cowl Latch
-
823-812707 BUSHINGBUSHING
-
923-8312141 SPACERSPACER
-
1012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
1113-12134 WASHER, WaveWASHER, Wave
-
128M0001081 CAMCAM
-
1312-4002316 WASHERWASHER
-
1410-8M0009253 SCREW, (M6 x 16), Included with Handle KitSCREW, (M6 x 16), Included with Handle Kit
-
158M0036792 BRACKET, FrontBRACKET, Front
-
16815477 BUMPER, LatchBUMPER, Latch
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
218155381 PIN, RollPIN, Roll
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
24NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
-37-897136A07 DECAL SET, ProXS, HP decal not included
SN# 1B934545 & BelowDECAL SET, ProXS, HP decal not included
SN# 1B934545 & Below -
-37-8M0083587 DECAL SET, ProXS, HP Decal not included
SN# 1B934546 & UpDECAL SET, ProXS, HP Decal not included
SN# 1B934546 & Up -
-37-8M0043699 M-ICON, Red, 66mmM-ICON, Red, 66mm
-
-37-8M0043700 M-ICON, Red, 39mm
SN# 1B934546 & UpM-ICON, Red, 39mm
SN# 1B934546 & Up -
-37-8M0115001 DECAL, Horsepower (150)
SN# 1B934545 & BelowDECAL, Horsepower (150)
SN# 1B934545 & Below -
-37-8M0065744 DECAL, Horsepower (150)
SN# 1B934546 & UpDECAL, Horsepower (150)
SN# 1B934546 & Up
