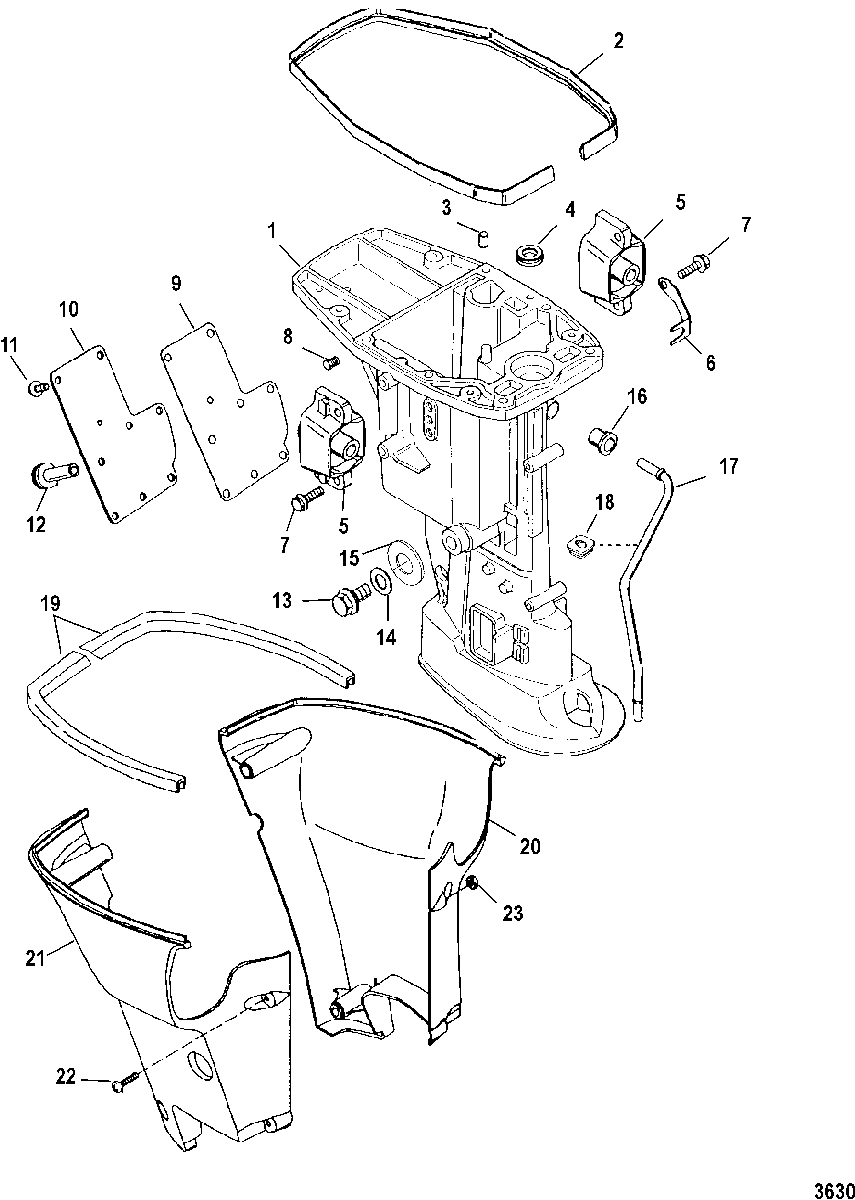

Driveshaft Housing для Mercury - 15 SEAPRO (4-STROKE) 0R123565 & Up

  • №
    Артикул
    Название
  • 1
    1599-8M0102959 HOUSING, Driveshaft - Short
    HOUSING, Driveshaft - Short
  • 1
    1599-8M0102958 HOUSING, Driveshaft - Long
    HOUSING, Driveshaft - Long
  • 2
    852432004 SEAL, Rubber
    SEAL, Rubber
  • 3
    17-16119 PIN, Dowel
    PIN, Dowel
  • 4
    26-8036675 SEAL, Oil
    SEAL, Oil
  • 5
    853771006 RUBBER MOUNT
    RUBBER MOUNT
  • 6
    853772004 LOCK PLATE
    LOCK PLATE
  • 7
    10-879194273 BOLT
    BOLT
  • 8
    19-803593 PLUG
    PLUG
  • 9
    27-854617002 GASKET
    GASKET
  • 10
    853577002 COVER, Idle Port
    COVER, Idle Port
  • 11
    10-810755013 BOLT
    BOLT
  • 12
    25-851850009 GROMMET
    GROMMET
  • 13
    8M0111615 BOLT
    BOLT
  • 14
    12-895146 WASHER
    WASHER
  • 15
    25-804899003 GROMMET
    GROMMET
  • 16
    26-16168003 SEAL, Rubber
    SEAL, Rubber
  • 17
    32-803755008 TUBE, Water
    (Short)
    TUBE, Water
    (Short)
  • 17
    32-803755009 TUBE, Water
    (Long)
    TUBE, Water
    (Long)
  • 18
    803758001 GUIDE, Rubber
    GUIDE, Rubber
  • 19
    852432003 SEAL, Rubber
    SEAL, Rubber
  • 20
    100-8M0134086 COVER, Port, Design-I
    Use With Nut and Bolt Fasteners
    COVER, Port, Design-I
    Use With Nut and Bolt Fasteners
  • 20
    850862T02 COVER, Driveshaft Housing-Port, Design-II
    Use With Self Tap Fasteners
    COVER, Driveshaft Housing-Port, Design-II
    Use With Self Tap Fasteners
  • 21
    100-8M0134086 COVER, Starboard, Design-I
    Use With Nut and Bolt Fasteners
    COVER, Starboard, Design-I
    Use With Nut and Bolt Fasteners
  • 21
    100-8M0134086 COVER, Driveshaft Housing-Starboard, Design-II
    Use With Self Tap Fasteners
    COVER, Driveshaft Housing-Starboard, Design-II
    Use With Self Tap Fasteners
  • 22
    10-16257005 SCREW, Design-I
    Use With Design-I Covers
    SCREW, Design-I
    Use With Design-I Covers
  • 22
    10-16257004 SCREW, Tapping, Design-II
    Use With Design-II Covers
    SCREW, Tapping, Design-II
    Use With Design-II Covers
  • 23
    11-853722022 NUT, Design-I
    Use With Design-I Covers
    NUT, Design-I
    Use With Design-I Covers
  • -
    27-850836A05 GASKET SET, Powerhead
    GASKET SET, Powerhead
