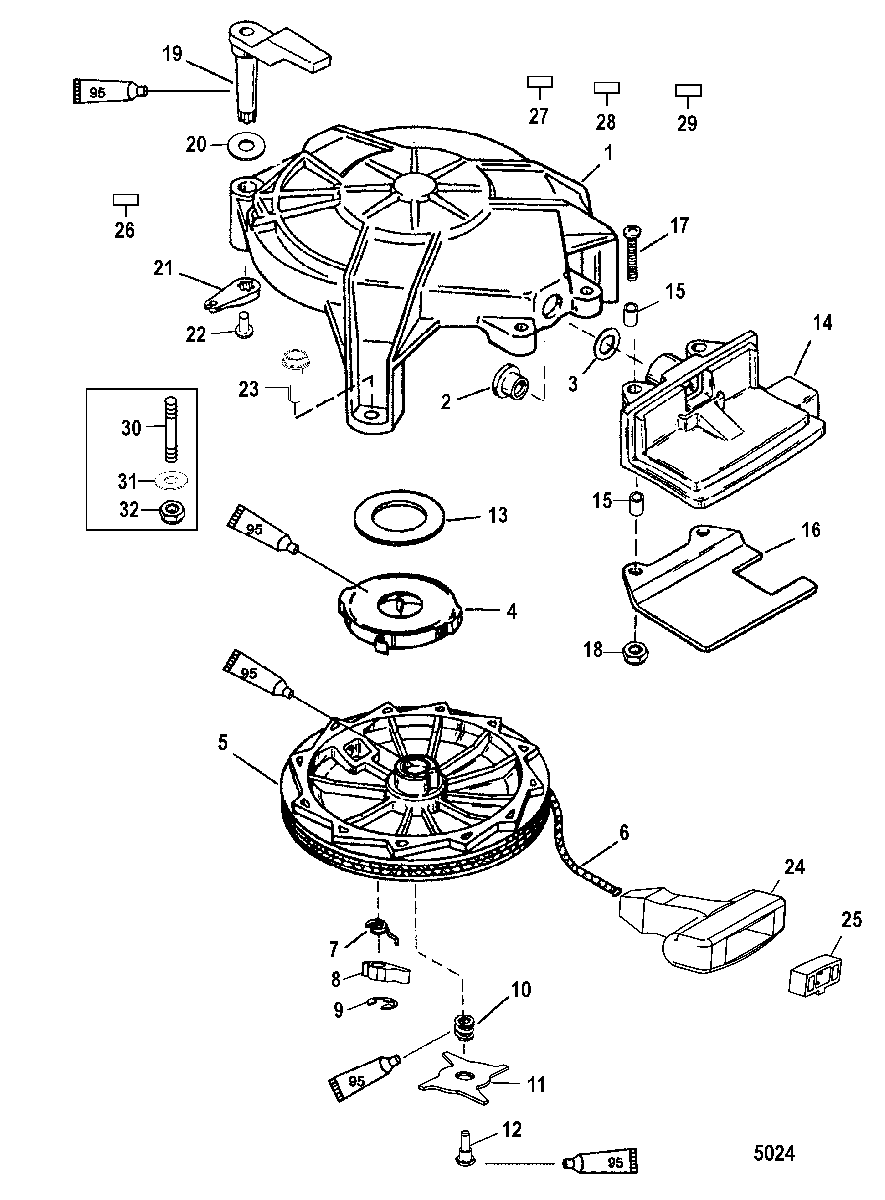

Manual Starter для Mercury - 15 SEA PRO 0G760300 THRU 0T979999

  • №
    Артикул
    Название
  • -
    42207A7 STARTER ASSEMBLY, Recoil
    STARTER ASSEMBLY, Recoil
  • 1
    8M0070659 HOUSING ASSEMLBY, Manual Starter
    HOUSING ASSEMLBY, Manual Starter
  • 1
    8M0070659 HOUSING, Starter
    HOUSING, Starter
  • 2
    42690 BUSHING
    BUSHING
  • 3
    53-818853 RING, Retaining
    RING, Retaining
  • 4
    24-86857T01 SPRING
    SPRING
  • 5
    42034T04 PULLEY ASSEMBLY, Starter
    PULLEY ASSEMBLY, Starter
  • 6
    50-8M0110703 ROPE, Starter
    ROPE, Starter
  • 7
    24-86851T02 SPRING
    SPRING
  • 8
    868501 CAM
    CAM
  • 9
    53-86849T01 RING, Retaining
    RING, Retaining
  • 10
    24-868523 SPRING
    SPRING
  • 11
    86853T01 CAM
    CAM
  • 12
    10-826253 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 13
    833161T FELT PAD
    FELT PAD
  • 14
    19018T REST
    REST
  • 15
    23-309772 SPACER
    SPACER
  • 16
    12674 SUPPORT
    SUPPORT
  • 17
    10-40019111 SCREW, (M5 x 35)
    SCREW, (M5 x 35)
  • 18
    11-401385 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 19
    42171T LEVER (Upper)
    LEVER (Upper)
  • 20
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 21
    42173T LEVER (Lower)
    LEVER (Lower)
  • 22
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 23
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 24
    85174A1 HANDLE ASSEMBLY
    HANDLE ASSEMBLY
  • 25
    NSS NOT SOLD SEPARATE (Retainer)
    NOT SOLD SEPARATE (Retainer)
  • 26
    NSS NOT SOLD SEPARATE (Decal-Servicing Referral)
    NOT SOLD SEPARATE (Decal-Servicing Referral)
  • 27
    37-8272822 DECAL, Warning, High Voltage
    DECAL, Warning, High Voltage
  • 28
    NSS NOT SOLD SEPARATE (Decal-Emergency Starting Procedure)
    NOT SOLD SEPARATE (Decal-Emergency Starting Procedure)
  • 29
    NSS NOT SOLD SEPARATE, Decal-Caution-Start in Gear
    (RC Models)
    NOT SOLD SEPARATE, Decal-Caution-Start in Gear
    (RC Models)
  • 30
    16-8161945 STUD, (M6 x 32)
    (Seapro/Marathon)
    STUD, (M6 x 32)
    (Seapro/Marathon)
  • 31
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    (Seapro/Marathon)
    WASHER, (.255 x .620 x .030) Stainless Steel
    (Seapro/Marathon)
  • 32
    11-401386 NUT, (M6) Stainless Steel
    (Seapro/Marthon)
    NUT, (M6) Stainless Steel
    (Seapro/Marthon)
