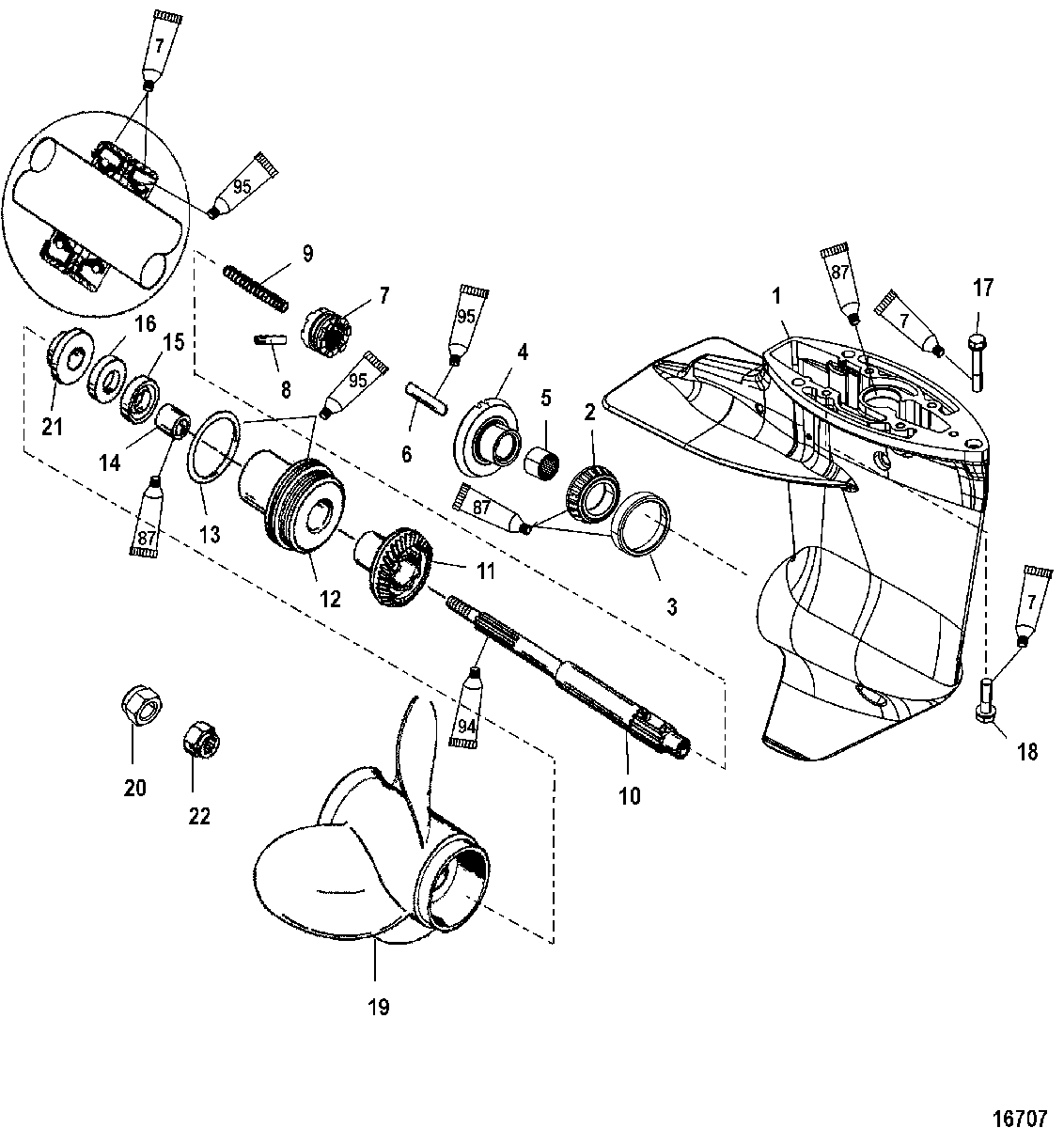

Gear Housing, Propeller Shaft- 2.00:1 Gear Ratio-Non-Bigfoot для Mercury - 15 (4-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
01666-8833T33 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Short)GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Short) -
01666-8833T35 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Long)GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
(Long) -
11600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-BlackGEAR HOUSING ASSEMBLY, Basic-Black
-
231-821321A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
3NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
443-821924A1 GEAR ASSEMBLY, Forward (13-26)GEAR ASSEMBLY, Forward (13-26)
-
523-41367 BUSHINGBUSHING
-
6813139 FOLLOWER, CamFOLLOWER, Cam
-
752-821930A1 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
817-823951 PIN, CrossPIN, Cross
-
924-42204 SPRINGSPRING
-
1044-821929 PROPELLER SHAFTPROPELLER SHAFT
-
1143-821926T1 GEAR, Reverse - 13/26GEAR, Reverse - 13/26
-
1242144T3 CARRIER, BearingCARRIER, Bearing
-
1325-33145 O-RING, (1.984 x .139)O-RING, (1.984 x .139)
-
1423-821927 BUSHINGBUSHING
-
1526-99325 SEALSEAL
-
1626-821928 SEAL, OilSEAL, Oil
-
1710-82407110 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1810-8240717 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1948-828156A12 PROPELLER, (9.00 x 9.00)PROPELLER, (9.00 x 9.00)
-
2011-40140 NUT, (M10)NUT, (M10)
-
218219321 THRUST HUBTHRUST HUB
-
2223-420911 SPACERSPACER
-
-26-41365A3 SEAL KITSEAL KIT
