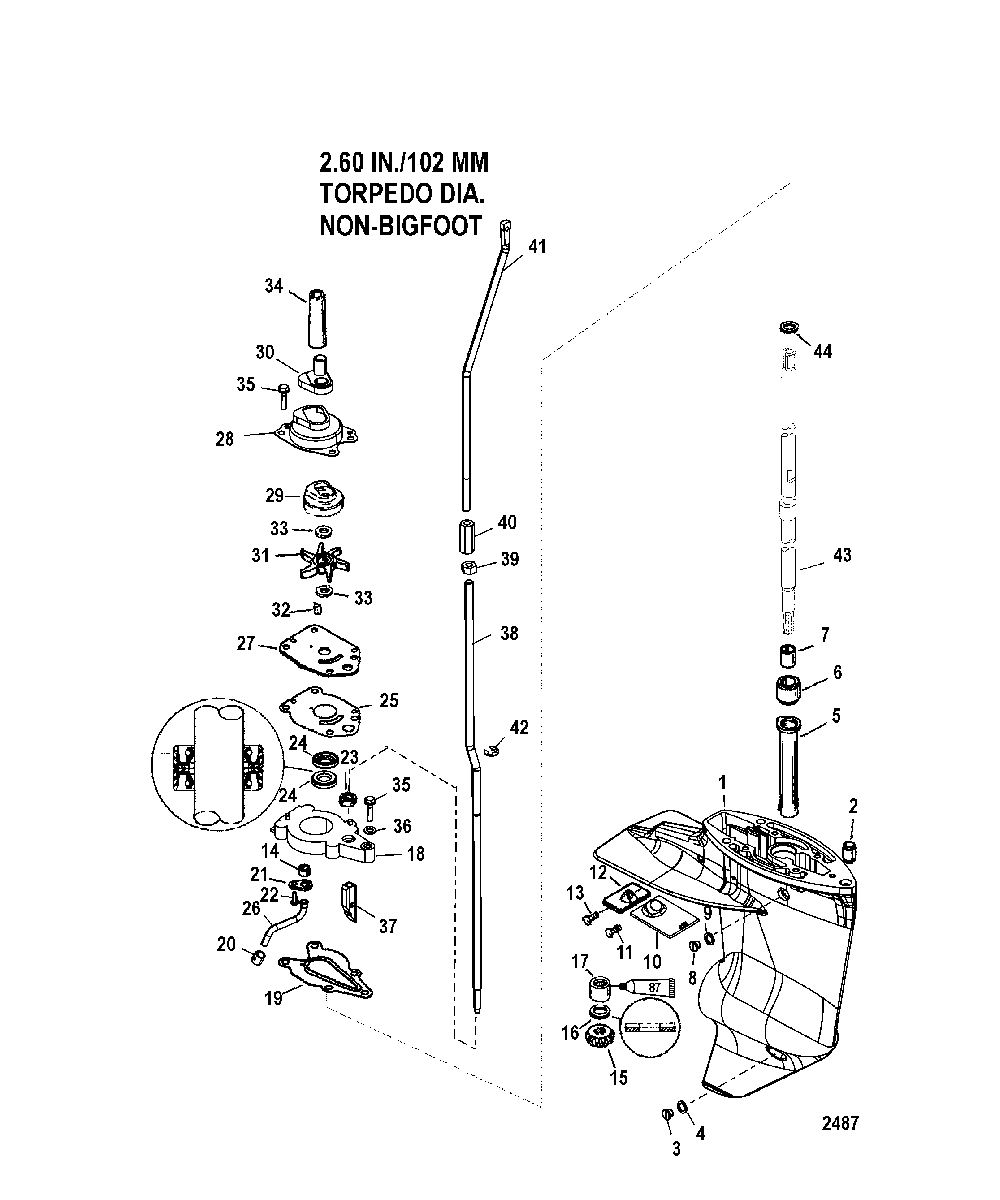

Gear Housing(Driveshaft)(2.00:1 Gear Ratio) для Mercury - 15 (4-STROKE) 0G760300 THRU 1B226999

  • №
    Артикул
    Название
  • -
    1666-8833T33 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Short - Black)
    GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Short - Black)
  • -
    1666-8833T35 GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Long - Black)
    GEAR HOUSING ASSEMBLY, Complete (2.60 Inch/102 mm Torpedo Diameter)
    (Long - Black)
  • 1
    1600-8M0083312 GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic - Black)
    GEAR HOUSING ASSEMBLY, Basic-Black
    (Basic - Black)
  • 2
    23-12009 BUSHING, (.31 x .45 x .50)
    BUSHING, (.31 x .45 x .50)
  • 3
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 3
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    SN# USA-0T979999/BEL-0P325499 & Below
    FITTING KIT, Magnetic, Plug Fill/Drain
    SN# USA-0T979999/BEL-0P325499 & Below
  • 3
    22-8M0058389 PLUG KIT, Drain (Magnetic)
    SN# USA-0T980000/BEL-0P325500 & Up
    PLUG KIT, Drain (Magnetic)
    SN# USA-0T980000/BEL-0P325500 & Up
  • 4
    12-191833 SEAL
    SEAL
  • 5
    822244A1 SLEEVE ASSEMBLY
    SLEEVE ASSEMBLY
  • 6
    23-823944 SLEEVE
    SLEEVE
  • 7
    23-823943 BUSHING
    BUSHING
  • 8
    10-79953Q04 SCREW KIT, (.375-16 x .250) Drain
    SCREW KIT, (.375-16 x .250) Drain
  • 9
    12-191833 SEAL
    SEAL
  • 10
    35-421991 SCREEN
    SCREEN
  • 11
    10-13954 SCREW, (.250-14 x .88)
    SCREW, (.250-14 x .88)
  • 12
    97-42121Q02 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 13
    10-13954 SCREW, (.250-14 x .88)
    SCREW, (.250-14 x .88)
  • 14
    26-42133 SEAL
    SEAL
  • 15
    43-8219251 GEAR, Pinion - 13-26
    GEAR, Pinion - 13-26
  • 16
    12-41369 WASHER, Thrust
    WASHER, Thrust
  • 17
    31-22756 BEARING, Roller
    BEARING, Roller
  • 18
    46-42040T5 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 19
    27-192043 GASKET
    GASKET
  • 20
    26-33613 SEAL
    SEAL
  • 21
    42375 RETAINER
    RETAINER
  • 22
    10-48408 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 23
    25-822236 QUAD RING
    QUAD RING
  • 24
    26-413651 SEAL, Oil
    SEAL, Oil
  • 25
    27-19202001 GASKET, Water Pump Plate
    SN# USA-0T979999/BEL-0P325499 & Below
    GASKET, Water Pump Plate
    SN# USA-0T979999/BEL-0P325499 & Below
  • 25
    27-19202001 GASKET
    SN# USA-0T980000/BEL-0P325500 & Up
    GASKET
    SN# USA-0T980000/BEL-0P325500 & Up
  • 26
    32-42185A1 TUBE ASSEMBLY, Water
    TUBE ASSEMBLY, Water
  • 27
    42200 FACE PLATE
    FACE PLATE
  • 28
    46-42089A2 COVER ASSEMBLY
    COVER ASSEMBLY
  • 29
    NSS NOT SOLD SEPARATE, Insert
    NOT SOLD SEPARATE, Insert
  • 30
    26-421021 SEAL
    SEAL
  • 31
    47-42038Q02 IMPELLER
    SN# USA-0T800999/BEL-0P267999 & Below
    IMPELLER
    SN# USA-0T800999/BEL-0P267999 & Below
  • 31
    47-42038Q02 IMPELLER
    SN# USA-0T801000/BEL-0P268000 & Up
    IMPELLER
    SN# USA-0T801000/BEL-0P268000 & Up
  • 32
    28-42376A2 KEY ASSEMBLY
    KEY ASSEMBLY
  • 33
    NSS NOT SOLD SEPARATE, Washer
    NOT SOLD SEPARATE, Washer
  • 34
    444671 GUIDE
    GUIDE
  • 35
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 36
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 37
    42039 CAM
    CAM
  • 38
    855280 SHIFT SHAFT
    (Short)
    SHIFT SHAFT
    (Short)
  • 38
    855281 SHIFT SHAFT
    (Long)
    SHIFT SHAFT
    (Long)
  • 39
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 40
    822419 COUPLER
    COUPLER
  • 41
    8529941 SHIFT SHAFT (Upper)
    SHIFT SHAFT (Upper)
  • 42
    53-42389 E RING
    E RING
  • 43
    45-825537 DRIVESHAFT
    (Short)
    DRIVESHAFT
    (Short)
  • 43
    45-825843 DRIVESHAFT
    (Long)
    DRIVESHAFT
    (Long)
  • 44
    12-822248 THRUST WASHER
    THRUST WASHER
  • -
    26-41365A3 SEAL KIT
    SEAL KIT
  • -
    46-42089A5 PUMP KIT, Water
    PUMP KIT, Water
