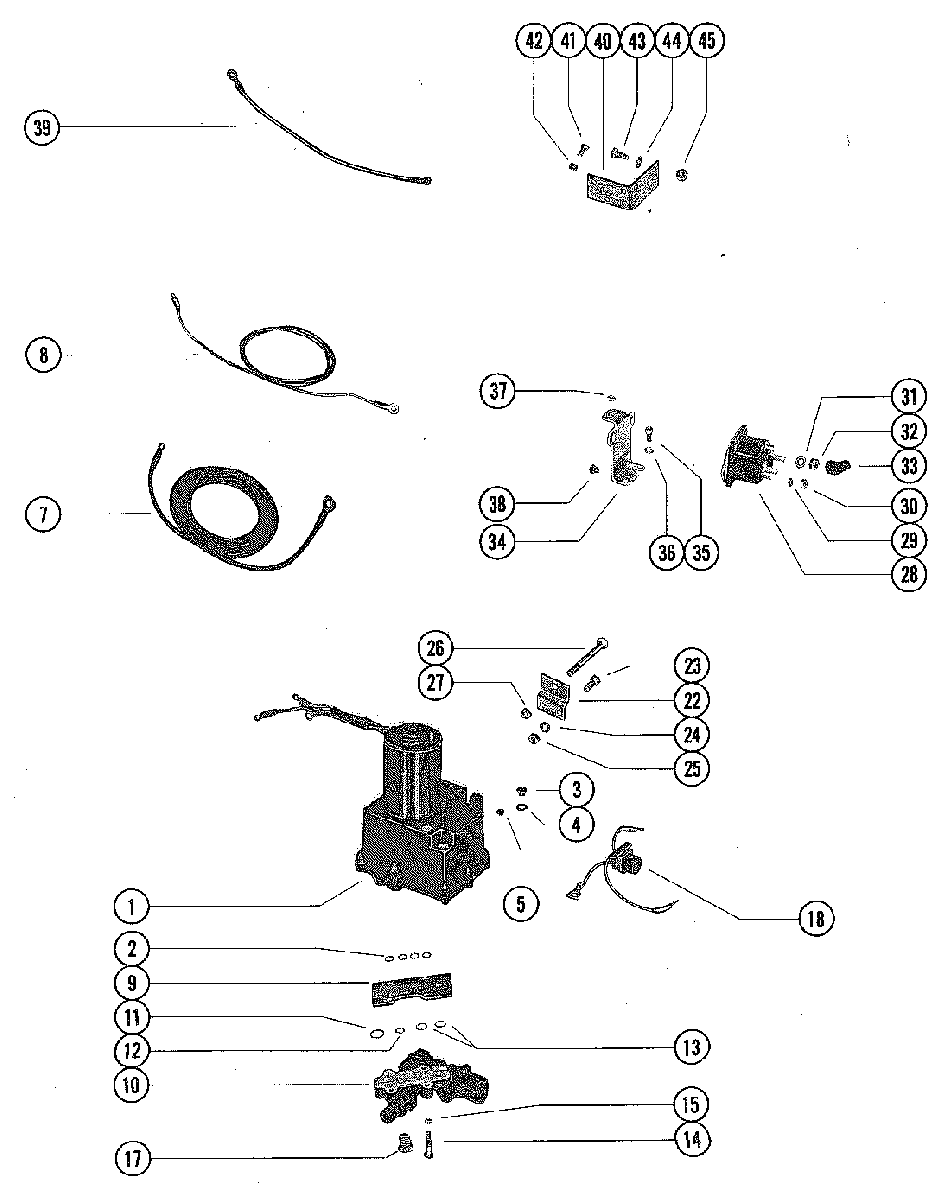

HYDRAULIC PUMP AND CONTROL VALVE для Mercury - 1400, 140 8052650 THRU 8052879
-
№АртикулНазвание
-
192975A32 HYDRAULIC PUMP ASSEMBLY
(SEE NOTE BELOW)HYDRAULIC PUMP ASSEMBLY
(SEE NOTE BELOW) -
225-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
-
310-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
412-191833 WASHER
SEALING - HYDRAULIC PUMP FILLER SCREWWASHER
SEALING - HYDRAULIC PUMP FILLER SCREW -
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
732979 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
832988 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
945336 PLATE, MANIFOLDPLATE, MANIFOLD
-
1045197A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
1025-48171 "O" RING
PUMP TO MANIFOLD PLATE (SEE REFERENCE #2)"O" RING
PUMP TO MANIFOLD PLATE (SEE REFERENCE #2) -
1125-45254 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.)"O" RING
CONTROL VALVE TO MANIFOLD PLATE (3/4" O.D.) -
1225-48171 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.)"O" RING
CONTROL VALVE TO MANIFOLD PLATE (1/2" O.D.) -
1325-45253 "O" RING
CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.)"O" RING
CONTROL VALVE TO MANIFOLD PLATE (5/8" O.D.) -
1410-56500 SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1 1/4")SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1 1/4") -
1513-26992 LOCKWASHER
CONTROL VALVE AND MANIFOLD PLATE SCREWLOCKWASHER
CONTROL VALVE AND MANIFOLD PLATE SCREW -
1722-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1884-74023A1 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
2245377T BRACKET
MOUNTING - HYDRAULIC PUMP TO BOATBRACKET
MOUNTING - HYDRAULIC PUMP TO BOAT -
2310-35386 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1")SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1") -
2413-39107 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2511-21908 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
2610-68298 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")
-
2711-82670912 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2889-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2913-26996 LOCKWASHER
STARTER SOLENOID TERMINAL (#10)LOCKWASHER
STARTER SOLENOID TERMINAL (#10) -
3011-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3113-26993 LOCKWASHER
STARTER SOLENOID TERMINAL (5/16")LOCKWASHER
STARTER SOLENOID TERMINAL (5/16") -
3211-68292 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
3346265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
3474407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3510-21140 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1/2") -
3613-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3711-24656 NUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT -
38269011 BUMPER, RUBBER - SOLENOID BRACKETBUMPER, RUBBER - SOLENOID BRACKET
-
3984-79139A2 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
3955992 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
4074406 BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
4110-69028 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (3/4")SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (3/4") -
4213-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
4310-34290 SCREW
STARTER SOLENOID TO MOUNTING BRACKET (5/8")SCREW
STARTER SOLENOID TO MOUNTING BRACKET (5/8") -
4413-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
4511-21825 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
