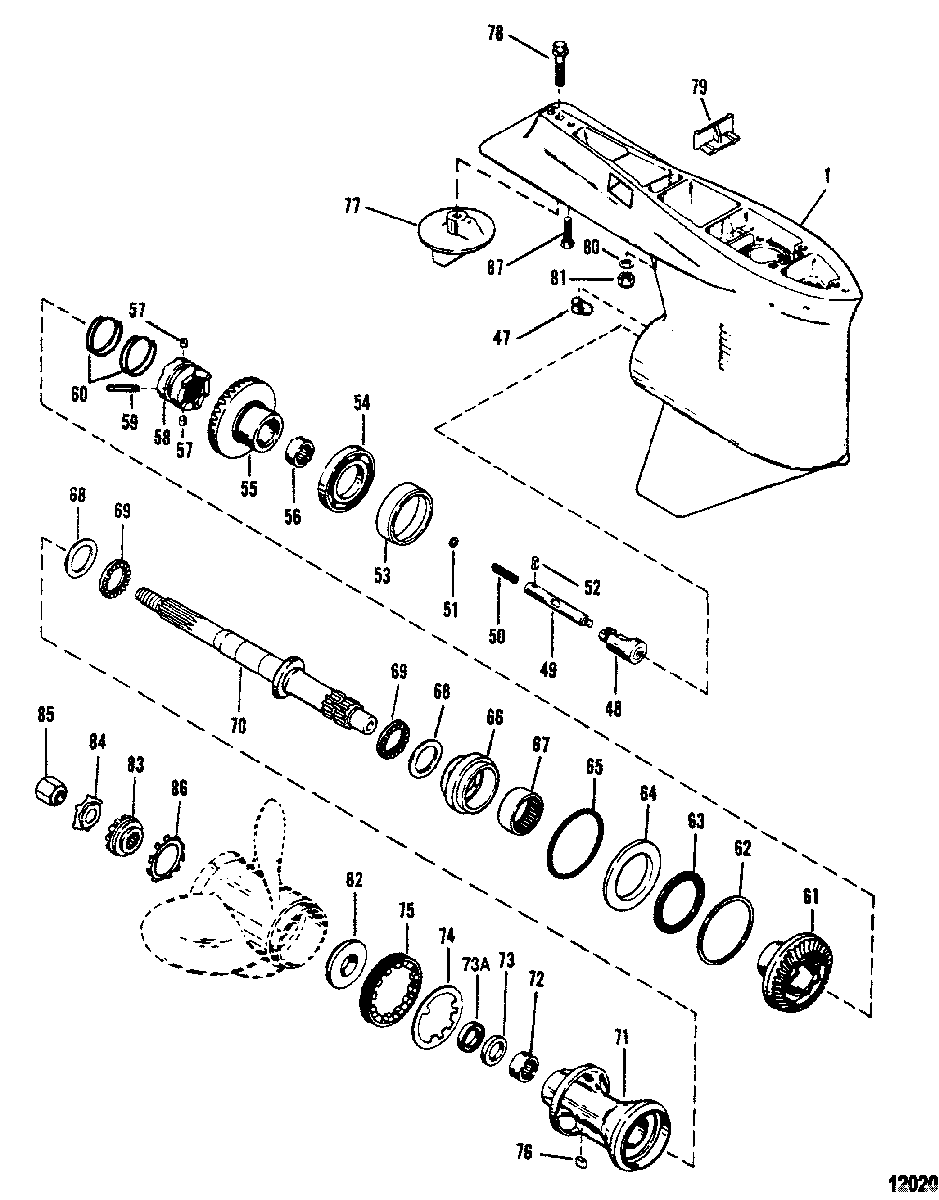

GEAR HOUSING(PROPSHAFT) - COUNTER ROTATION для Mercury - 140 JET 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (BLACK)GEAR HOUSING ASSEMBLY (BASIC) (BLACK)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC) (GRAY)GEAR HOUSING ASSEMBLY (BASIC) (GRAY)
-
47789562 SHIFT CAMSHIFT CAM
-
4889594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
4979911A1 RODROD
-
5024-79910 SPRINGSPRING
-
5112-78910 WASHERWASHER
-
5217-8M0084245 PINPIN
-
5314469T CUP, BearingCUP, Bearing
-
5430-88957T BEARING, BallBEARING, Ball
-
55N.S.S. Not Sold Separate, Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)Not Sold Separate, Reverse Gear (PART OF 43-18572A1 OR 43-18475A1)
-
5631-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
5717-78909 PIN, DetentPIN, Detent
-
5852-8M0100493 CLUTCHCLUTCH
-
5917-8M0084243 PIN, CrossPIN, Cross
-
6024-78962 SPRINGSPRING
-
6143-18572T1 GEAR ASSEMBLY, Forward (135/150)GEAR ASSEMBLY, Forward (135/150)
-
6143-18475T1 GEAR ASSEMBLY, Forward (175/200)GEAR ASSEMBLY, Forward (175/200)
-
6223-176151 SPACER SHIM, (.125)SPACER SHIM, (.125)
-
6223-176152 SPACER SHIM, (.127)SPACER SHIM, (.127)
-
6223-176153 SPACER SHIM, (.129)SPACER SHIM, (.129)
-
6223-176154 SPACER SHIM, (.131)SPACER SHIM, (.131)
-
6223-176155 SPACER SHIM, (.133)SPACER SHIM, (.133)
-
6223-176156 SPACER SHIM, (.135)SPACER SHIM, (.135)
-
6223-176157 SPACER SHIM, (.137)SPACER SHIM, (.137)
-
6223-176158 SPACER SHIM, (.139)SPACER SHIM, (.139)
-
6223-176159 SPACER SHIM, (.141)SPACER SHIM, (.141)
-
6223-1761510 SPACER SHIM, (.143)SPACER SHIM, (.143)
-
6223-1761511 SPACER SHIM, (.145)SPACER SHIM, (.145)
-
6223-1761512 SPACER SHIM, (.147)SPACER SHIM, (.147)
-
6223-1761513 SPACER SHIM, (.149)SPACER SHIM, (.149)
-
6331-15841 BEARING, RollerBEARING, Roller
-
6412-17616 THRUST RINGTHRUST RING
-
6525-31534 O-RINGO-RING
-
6618447T2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
6731-15843T BEARING, RollerBEARING, Roller
-
6812-18448 THRUST WASHERTHRUST WASHER
-
6931-15842 BEARING, ThrustBEARING, Thrust
-
7044-18446 PROPELLER SHAFTPROPELLER SHAFT
-
71818896T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
7231-30956T BEARING, NeedleBEARING, Needle
-
7326-76868 SEALSEAL
-
73A26-76868 SEALSEAL
-
7414-183231 TAB WASHERTAB WASHER
-
758M2000347 RETAINERRETAINER
-
7628-30281 KEYKEY
-
7797-31640Q4 TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)TRIM TAB (USE WITH GEAR HOUSING W/O ANODES)
-
7731640T07 TRIM TAB (USE WITH GEAR HOUSING W/ANODES)TRIM TAB (USE WITH GEAR HOUSING W/ANODES)
-
7810-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
798M0039169 FILLER BLOCKFILLER BLOCK
-
8012-45176 WASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, (.453 x .812 x .105) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8111-34933 NUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTNUT, (.437-20) Stainless Steel
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8212-835467Q01 THRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTHRUST HUB
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8312-31211Q03 WASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTWASHER, Splined
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8414-816629Q TAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTTAB WASHER
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8511-52707Q1 PROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTPROP NUT KIT, (.750-16)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8613-423511 LOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTLOCKWASHER, Toothed
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
8710-65210 SCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSCREW, (.375-16 x 1.00)
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-27-815791A92 GASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTGASKET SET, Engine
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT -
-26-89238A2 SEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENTSEAL KIT
THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH COMPLETE GEAR HOUSING REPLACEMENT
