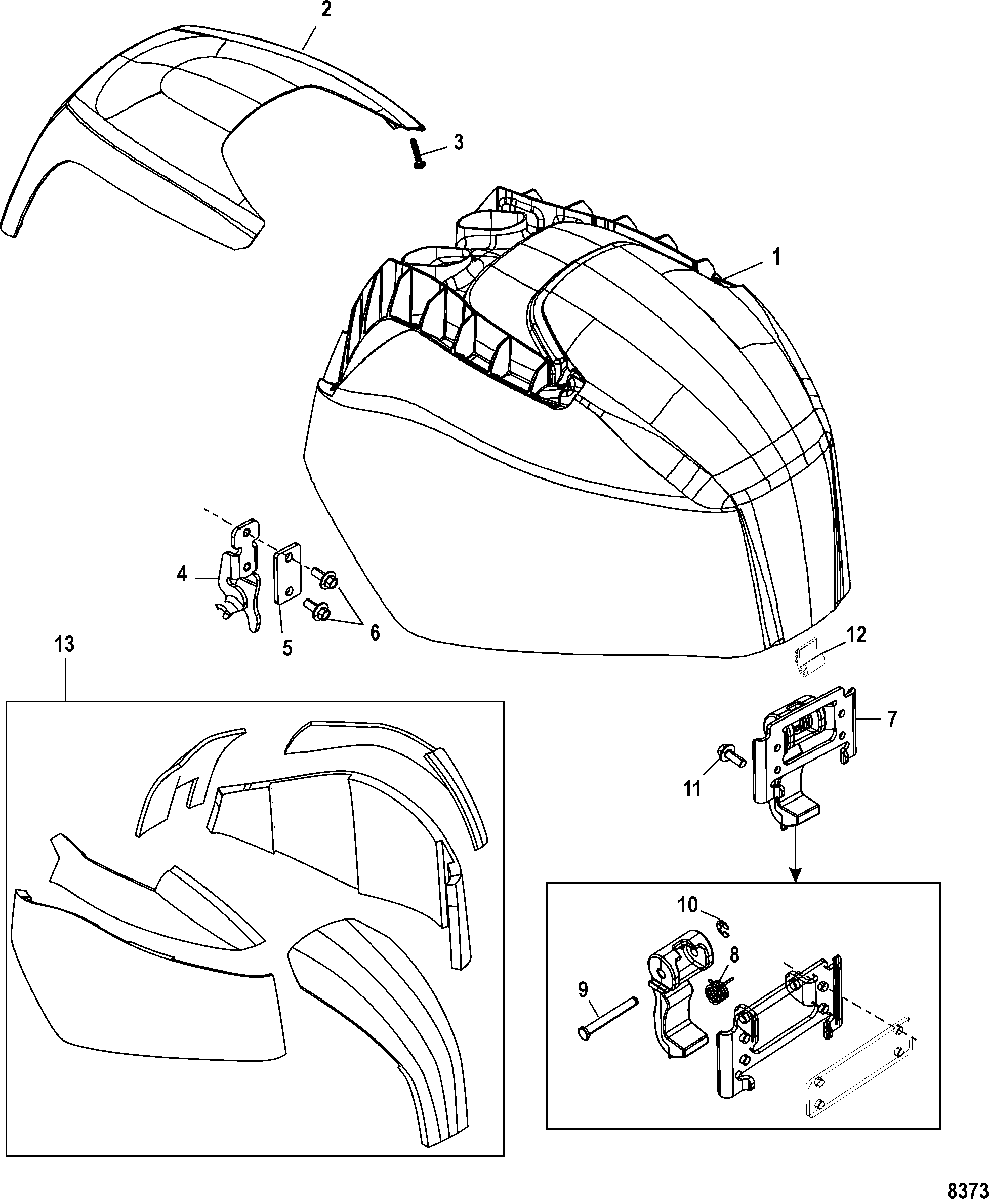

Top Cowl для Mercury - 135 VERADO (4-STROKE)(4 CYL.) 1B381712 THRU 1B517158

№

Артикул

Название
1

100-8M0113898 TOP COWL ASSEMBLY, Mercury

TOP COWL ASSEMBLY, Mercury
1

100-8M0113901 TOP COWL ASSEMBLY, Mariner

TOP COWL ASSEMBLY, Mariner
2

895845T CAP, Air Dam
(Mercury)

CAP, Air Dam
(Mercury)
2

895845T01 CAP, Air Dam
(Mariner)

CAP, Air Dam
(Mariner)
3

10-888950020 SCREW, (M4 x 20 mm)

SCREW, (M4 x 20 mm)
4

896959 HOOK

HOOK
5

897444002 BRACKET, Support

BRACKET, Support
6

10-82130014 SCREW, (M6 x 14)

SCREW, (M6 x 14)
7

897437T03 LATCH ASSEMBLY, Front

LATCH ASSEMBLY, Front
8

24-8M0109644 SPRING

SPRING
9

17-897441 PIN, Clevis

PIN, Clevis
10

53-27290 RING, Retaining

RING, Retaining
11

10-82130014 SCREW, (M6 x 14)

SCREW, (M6 x 14)
12

896997001 SEAL, (2425.75 mm)

SEAL, (2425.75 mm)
13

8M4501659 SOUND BLANKET KIT

SOUND BLANKET KIT
-

37-8M0102449 DECAL SET, (Generic)
(Mercury)

DECAL SET, (Generic)
(Mercury)
-

37-892870A06 DECAL SET, (Generic)
(Mariner)

DECAL SET, (Generic)
(Mariner)
-

37-8M0024863 DECAL SET, Port And Starboard
(Mercury)

DECAL SET, Port And Starboard
(Mercury)
-

37-892870A01 DECAL SET, Port And Starboard
(Mariner)

DECAL SET, Port And Starboard
(Mariner)
-

37-8M0061182 DECAL, Horsepower (135), Rear
(Mercury 135)

DECAL, Horsepower (135), Rear
(Mercury 135)
-

37-892870003 DECAL, Rear, Rear
(Mariner 135)

DECAL, Rear, Rear
(Mariner 135)
-

37-8M0115001 DECAL, Horsepower (150), Rear
(Mercury 150)

DECAL, Horsepower (150), Rear
(Mercury 150)
-

37-892870004 DECAL, Rear, Rear
(Mariner 150)

DECAL, Rear, Rear
(Mariner 150)
-

37-8M0115001 DECAL, Horsepower (175), Rear
(Mercury 175)

DECAL, Horsepower (175), Rear
(Mercury 175)
-

37-892870005 DECAL, Rear, Rear
(Mariner 175)

DECAL, Rear, Rear
(Mariner 175)
