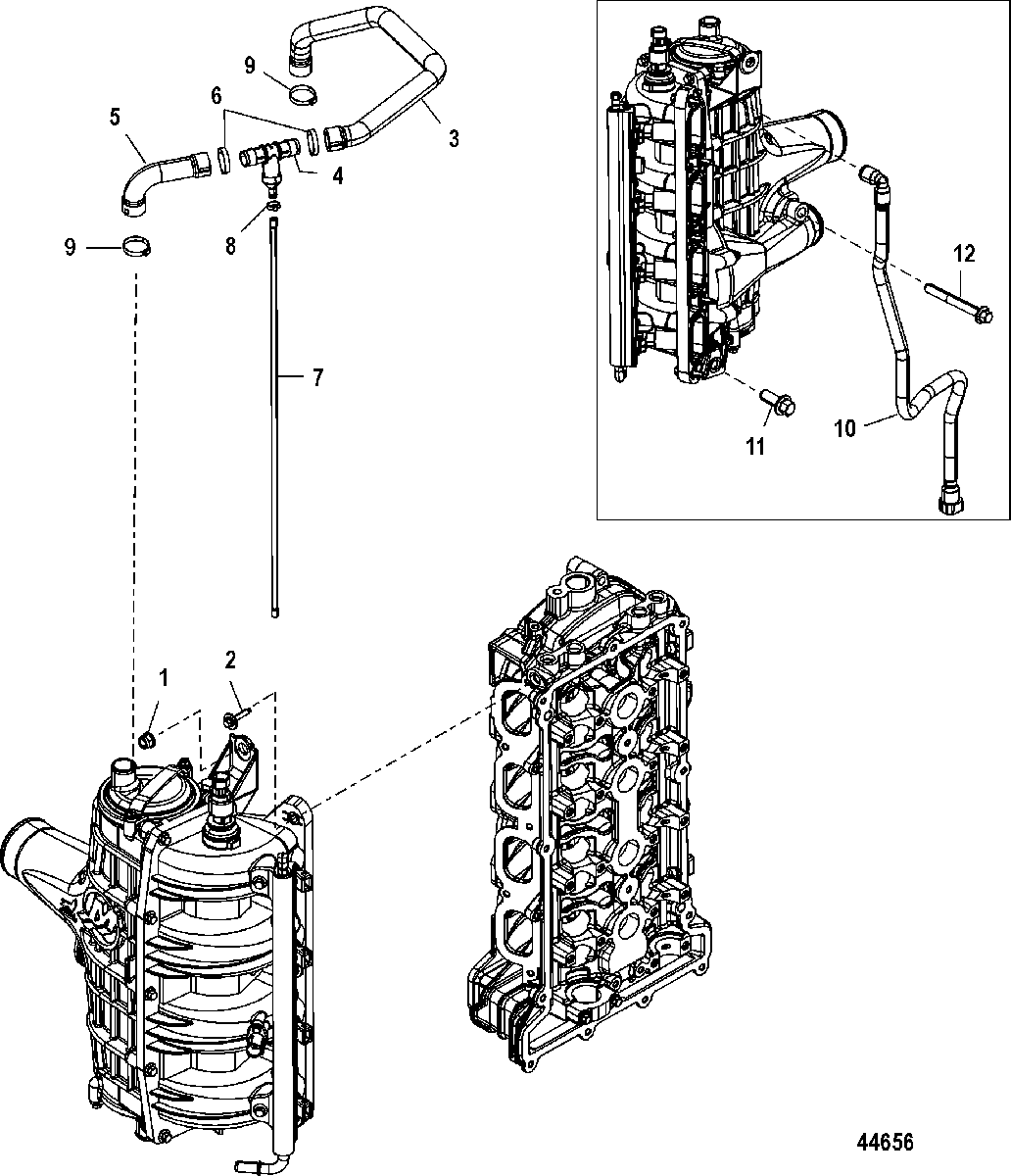

Charge Cooler/Intake Manifold Hose Routings для Mercury - 135 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up

  • №
    Артикул
    Название
  • 1
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 2
    10-8M0048051 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • -
    NSS NOT SOLD SEPARATE, Hose Assembly-Complete
    NOT SOLD SEPARATE, Hose Assembly-Complete
  • 3
    32-896255 HOSE
    HOSE
  • 4
    22-8M6003382 FITTING ASSEMBLY, Flushing
    FITTING ASSEMBLY, Flushing
  • 5
    32-889592001 HOSE
    HOSE
  • 6
    54-888988008 CLAMP, (34.6 mm)
    CLAMP, (34.6 mm)
  • 7
    32-896257 HOSE
    HOSE
  • 8
    54-850181 TIE STRAP, (11.750 Inches)
    TIE STRAP, (11.750 Inches)
  • 9
    54-888988008 CLAMP, (34.6 mm)
    CLAMP, (34.6 mm)
  • 10
    32-8M0087088 HOSE, Manifold Reference-Upper
    HOSE, Manifold Reference-Upper
  • 11
    10-8M0103821 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 12
    10-88552765 SCREW, (M10 x 65)
    SCREW, (M10 x 65)
