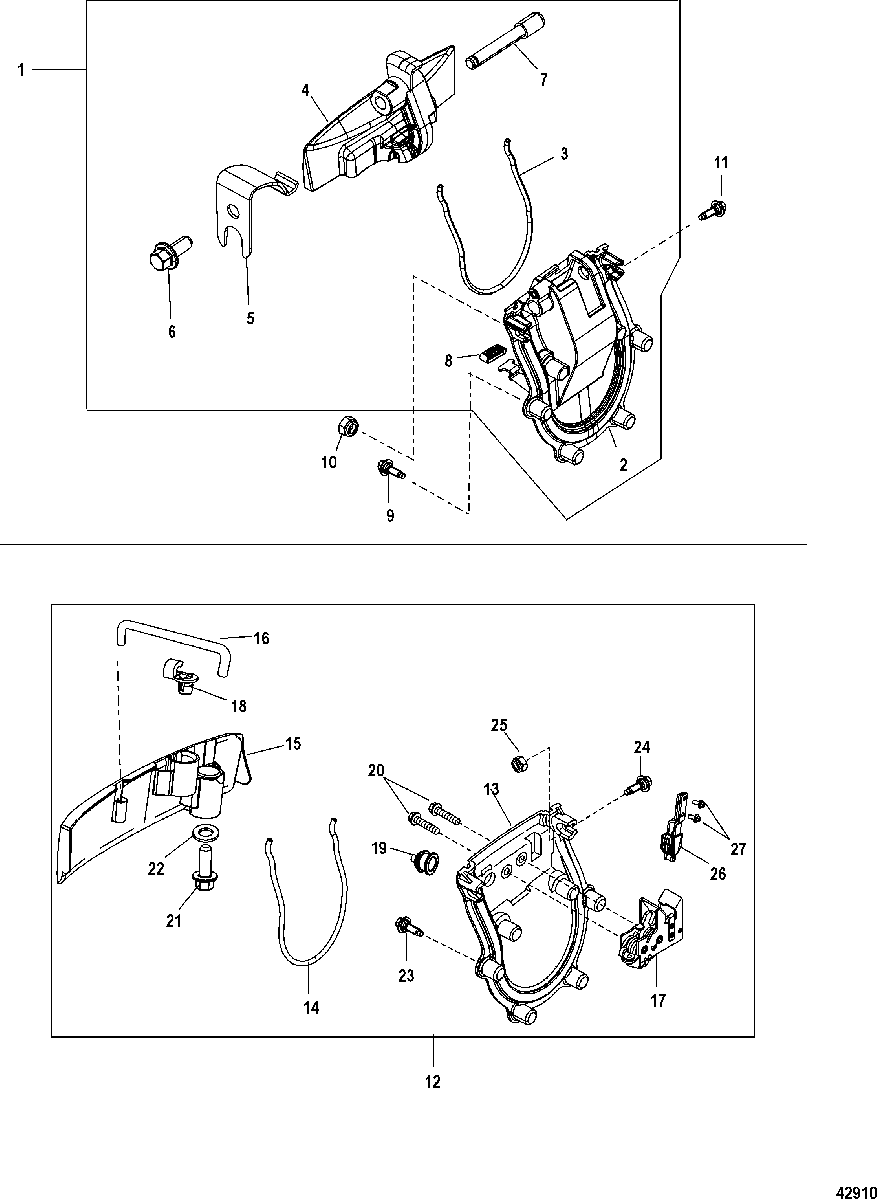

Rear Cowl, Latch Assembly для Mercury - 135 VERADO (4-STROKE)(4 CYL.) 0P464488 THRU 0P514868

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, LATCH ASSEMBLY
    Design-I
    NOT SOLD SEPARATE, LATCH ASSEMBLY
    Design-I
  • 2
    8M0113897 PANEL ASSEMBLY, Access
    PANEL ASSEMBLY, Access
  • 3
    896927 SEAL
    SEAL
  • 4
    896928A01 LEVER ASSEMBLY, Rail Latch
    LEVER ASSEMBLY, Rail Latch
  • 5
    24-896933 SPRING, Leaf
    SPRING, Leaf
  • 6
    10-88552514 SCREW, (M6 x 14 MM) Stainless Steel
    SCREW, (M6 x 14 MM) Stainless Steel
  • 7
    17-896932 PIN, Lever
    PIN, Lever
  • 8
    898476 BUTTON, Latch
    BUTTON, Latch
  • 9
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 10
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 11
    8M0005773 SCREW, (M6)
    SCREW, (M6)
  • -
    8M0113897 LATCH KIT, Rear, Design-II Up-Fit Kit
    Design-II
    LATCH KIT, Rear, Design-II Up-Fit Kit
    Design-II
  • 12
    879148T72 PANEL AND LATCH ASSEMBLY
    Design-II
    PANEL AND LATCH ASSEMBLY
    Design-II
  • 13
    8M0035175 PANEL, Access
    PANEL, Access
  • 14
    8M0026713 SEAL
    SEAL
  • 15
    8M0034940 HANDLE
    HANDLE
  • 16
    8M0020854 LINK
    LINK
  • 17
    8M0041031 LATCH ASSEMBLY, Rear
    LATCH ASSEMBLY, Rear
  • 18
    8M0006054 RETAINER
    RETAINER
  • 19
    8M0006060 SEAL
    SEAL
  • 20
    10-8M0103807 SCREW, (M6 x 25 MM) Stainless Steel
    SCREW, (M6 x 25 MM) Stainless Steel
  • 21
    10-8M0103805 SCREW, (M6 x 16 MM) Stainless Steel
    SCREW, (M6 x 16 MM) Stainless Steel
  • 22
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 23
    10-892073002 SHOULDER SCREW, (M6)
    SHOULDER SCREW, (M6)
  • 24
    8M0005773 SCREW, (M6)
    SCREW, (M6)
  • 25
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 26
    8M0020857 STRIKER ASSEMBLY
    STRIKER ASSEMBLY
  • 27
    10-82130014 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
