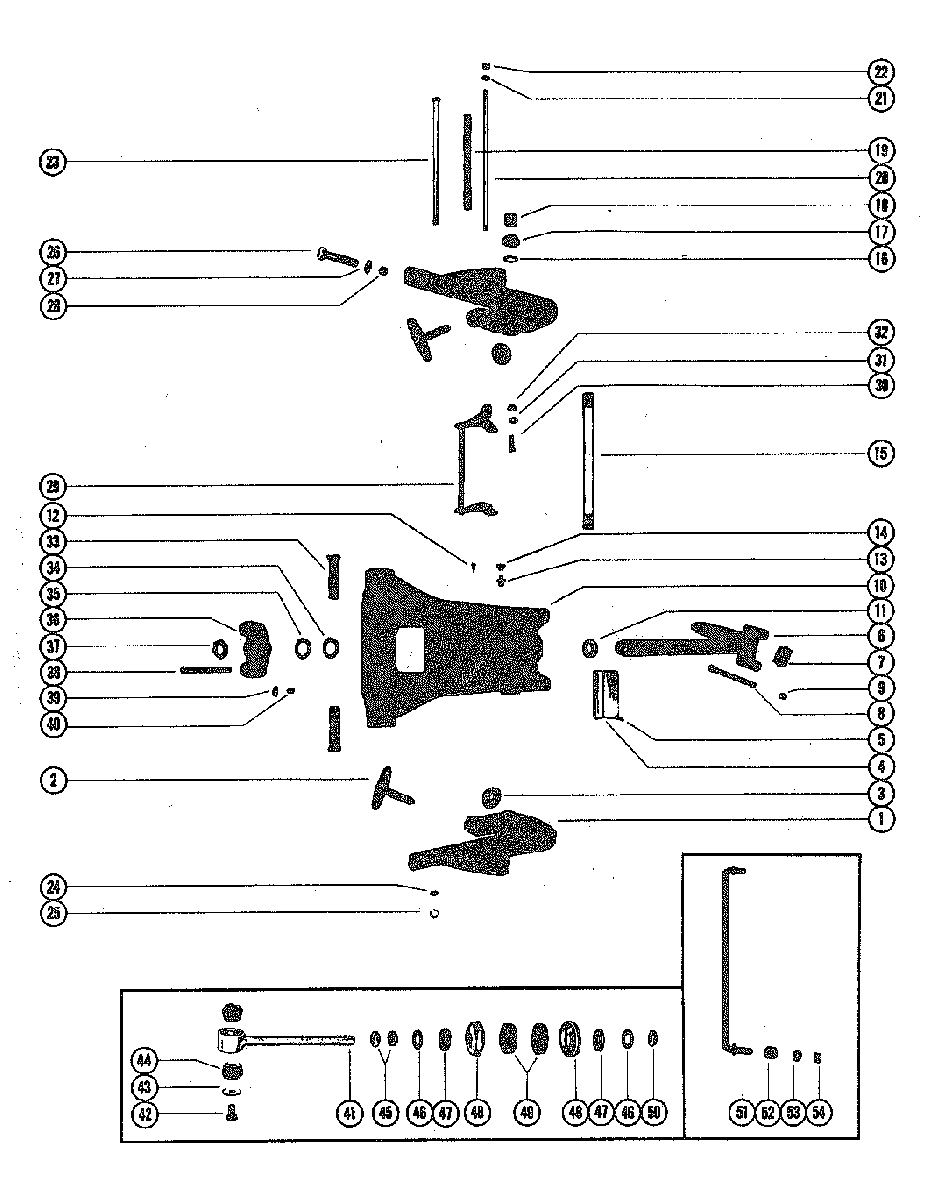

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 1250BP 2400058 THRU 2641954
-
№АртикулНазвание
-
11440-3296A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
228403A3 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
312-28404 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
438-56267 SERIAL PLATESERIAL PLATE
-
510-25612 SCREW, SERIAL PLATE TO SWIVEL BRACKETSCREW, SERIAL PLATE TO SWIVEL BRACKET
-
617-48883A1 SWIVEL PIN AND STEERING ARM ASSEMBLYSWIVEL PIN AND STEERING ARM ASSEMBLY
-
726-52924 SEAL, RUBBER - SWIVEL PINSEAL, RUBBER - SWIVEL PIN
-
810-49373 BOLT, STEERING ARM TO UPPER MOUNTBOLT, STEERING ARM TO UPPER MOUNT
-
911-34933 NUT, STEERING ARM BOLTNUT, STEERING ARM BOLT
-
101453-4673A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1126-37448 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
1210-47828 SCREW, DRIVE - SWIVEL BRACKETSCREW, DRIVE - SWIVEL BRACKET
-
1322-69059 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
1419-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
158M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
1612-52864 SHIM ASSEMBLY, CLAMP BRACKET TILT TUBESHIM ASSEMBLY, CLAMP BRACKET TILT TUBE
-
1711-858869 NUT, TILT TUBE FASTENTINGNUT, TILT TUBE FASTENTING
-
1853078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
1923-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
2016-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
2112-24812 WASHER, CLAMP BRACKET STUDWASHER, CLAMP BRACKET STUD
-
2211-862902 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
2310-49369 SCREW, TILT LOCK PIN (9-3/8")SCREW, TILT LOCK PIN (9-3/8")
-
2412-37828 WASHER, TILT LOCK PIN SCREWWASHER, TILT LOCK PIN SCREW
-
2511-82671013 NUT, TILT LOCK PIN SCREWNUT, TILT LOCK PIN SCREW
-
2610-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOMBOLT, CLAMP BRACKET TO BOAT TRANSOM
-
2712-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
2811-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
2930126A1 TILT STOP LEVER ASSEMBLYTILT STOP LEVER ASSEMBLY
-
3010-30128 SCREW, TILT STOP LEVER TO CLAMP BRACKETSCREW, TILT STOP LEVER TO CLAMP BRACKET
-
3113-31030 WASHER, WAVE - TILT STOP LEVER SCREWWASHER, WAVE - TILT STOP LEVER SCREW
-
3211-29250 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
3355-49577 PIN, LOWER EYE BOLT MOUNTINGPIN, LOWER EYE BOLT MOUNTING
-
3412-37429 WASHER, SWIVEL PINWASHER, SWIVEL PIN
-
3512-48926 WASHER, SWIVEL PINWASHER, SWIVEL PIN
-
3648884 YOKE, BOTTOMYOKE, BOTTOM
-
3711-37424 NUT, SWIVEL PIN RETAININGNUT, SWIVEL PIN RETAINING
-
3810-48924 SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3-1/2")SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3-1/2")
-
3912-24501 WASHER, YOKE SCREWWASHER, YOKE SCREW
-
4011-35000 NUT, YOKE SCREWNUT, YOKE SCREW
-
4149982A1 EYE BOLT ASSEMBLYEYE BOLT ASSEMBLY
-
4210-28450 SCREW, NYLOK - LOWER EYE BOLT MOUNTING PINSCREW, NYLOK - LOWER EYE BOLT MOUNTING PIN
-
4312-28421 WASHER, LOWER BUSHING RETAINERWASHER, LOWER BUSHING RETAINER
-
4423-28198 BUSHING, RUBBER - EYE BOLTBUSHING, RUBBER - EYE BOLT
-
4511-20739 NUT, EYE BOLTNUT, EYE BOLT
-
4612-52601 WASHER, PLAIN - EYE BOLTWASHER, PLAIN - EYE BOLT
-
4727-49985 GASKET, EYE BOLT (3/16" NEOPRENE)GASKET, EYE BOLT (3/16" NEOPRENE)
-
4812-49983 WASHER, CUPPED - EYE BOLTWASHER, CUPPED - EYE BOLT
-
4927-49984 GASKET, EYE BOLT (1/2" NEOPRENE)GASKET, EYE BOLT (1/2" NEOPRENE)
-
5011-8M2014641 NUT, EYE BOLTNUT, EYE BOLT
-
5152131 ROD, STEERINGROD, STEERING
-
5223-52169 SLEEVE, STEERING RODSLEEVE, STEERING ROD
-
5312-20086 WASHER, STEERING RODWASHER, STEERING ROD
-
5411-8M0042636 NUT, STEERING RODNUT, STEERING ROD
