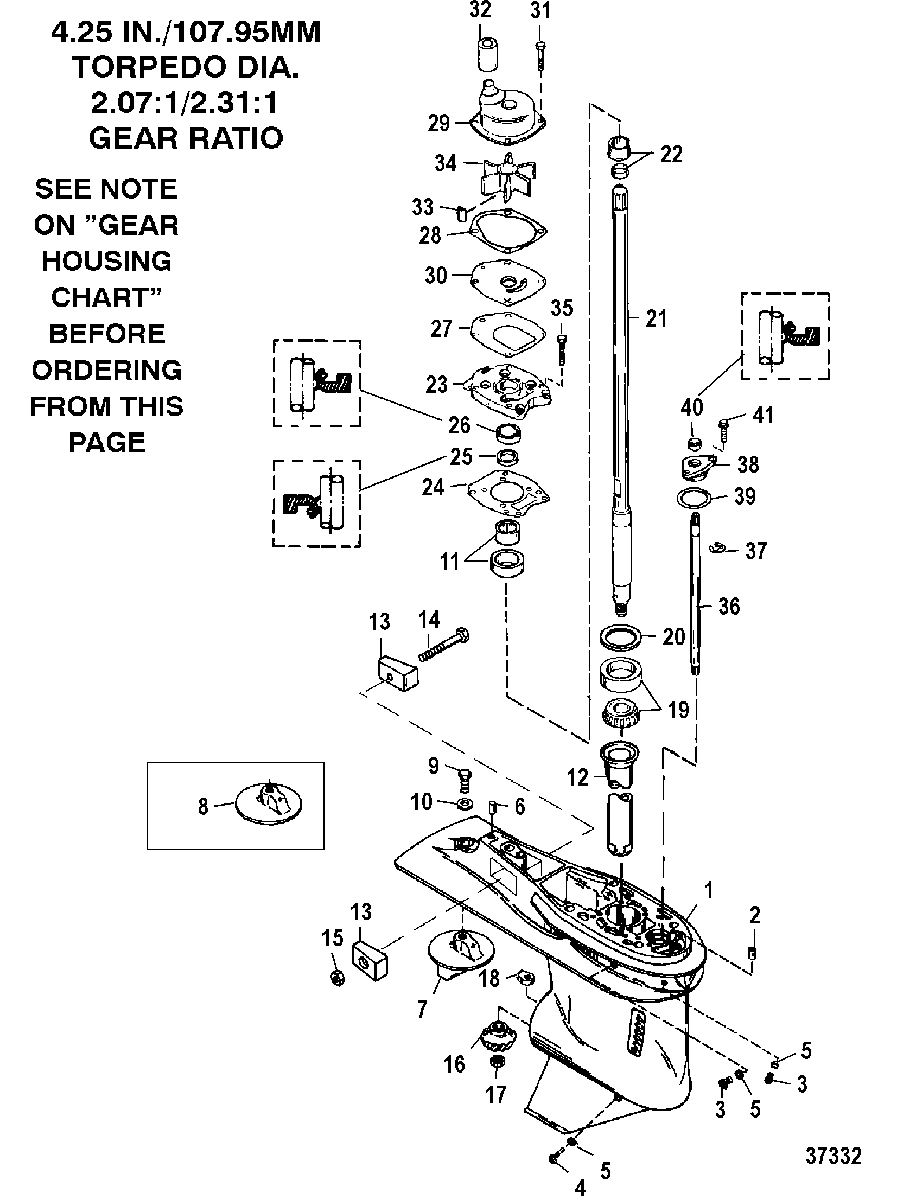

GEAR HOUSING(DRIVESHAFT)(3 JAW REVERSE CLUTCH) для Mercury - 125 (4 CYL.) 9793577 THRU 0P016999
-
№АртикулНазвание
-
11667-9011T73 GEAR HOUSING ASSEMBLY, Basic
(BLACK)GEAR HOUSING ASSEMBLY, Basic
(BLACK) -
11667-9011T73 GEAR HOUSING ASSEMBLY, Basic
(GRAY)GEAR HOUSING ASSEMBLY, Basic
(GRAY) -
11667-9011T73 GEAR HOUSING ASSEMBLY, Basic
(TRACKER-GRAPHITE GRAY)GEAR HOUSING ASSEMBLY, Basic
(TRACKER-GRAPHITE GRAY) -
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)PIN, Dowel - With Hole (.375 x .625) (FRONT) (QTY. OF 2 ON X-LONG)
-
310-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
512-191833 WASHER, FiberWASHER, Fiber
-
617-43044 PIN, Dowel - Without Hole (.375 x .625) (REAR)PIN, Dowel - Without Hole (.375 x .625) (REAR)
-
797-31640Q4 TRIM TAB
(USE W/GH W/O ANODES)TRIM TAB
(USE W/GH W/O ANODES) -
831640T07 TRIM TAB
(USE W/GH WITH ANODES)TRIM TAB
(USE W/GH WITH ANODES) -
910-825427 SCREW, (.437-14 x 1.250) Stainless SteelSCREW, (.437-14 x 1.250) Stainless Steel
-
1012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1143040T1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
1243046 TUBE, OilerTUBE, Oiler
-
1397-826134Q ANODE
DESIGN IIANODE
DESIGN II -
1410-4000333 SCREW, (M6 x 40)
DESIGN IISCREW, (M6 x 40)
DESIGN II -
1511-401386 NUT, (M6)
DESIGN IINUT, (M6)
DESIGN II -
1643-881259A1 GEAR ASSEMBLY, Pinion
(2.07:1 GEAR RATIO - 14 TEETH)GEAR ASSEMBLY, Pinion
(2.07:1 GEAR RATIO - 14 TEETH) -
1643-44484T GEAR, Pinion (13 Teeth)
(HIGH ALTITUDE) (2.31:1 GEAR RATIO - 13 TEETH)GEAR, Pinion (13 Teeth)
(HIGH ALTITUDE) (2.31:1 GEAR RATIO - 13 TEETH) -
1711-35921 NUT, (.625-18)NUT, (.625-18)
-
18760394 CAM, Shift ControlCAM, Shift Control
-
1931-42677A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2015-8M0063265 SHIM SETSHIM SET
-
2145-43031A1 DRIVESHAFT ASSEMBLY
(LONG)DRIVESHAFT ASSEMBLY
(LONG) -
2145-43032A4 DRIVESHAFT ASSEMBLY
(X-LONG)DRIVESHAFT ASSEMBLY
(X-LONG) -
2242461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
2346-8M0113262 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2427-430472 GASKETGASKET
-
2526-43036 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
2626-43035 SEAL, Oil (UPPER)SEAL, Oil (UPPER)
-
2727-430331 GASKETGASKET
-
2827-8172771 GASKETGASKET
-
29817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
308172761 FACEPLATEFACEPLATE
-
3110-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
32430232 SEALSEAL
-
3328-8M0032833 KEYKEY
-
3447-43026T2 IMPELLERIMPELLER
-
3510-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
3643048A1 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
3643049A1 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113799 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-27-13461A99 GASKET SETGASKET SET
