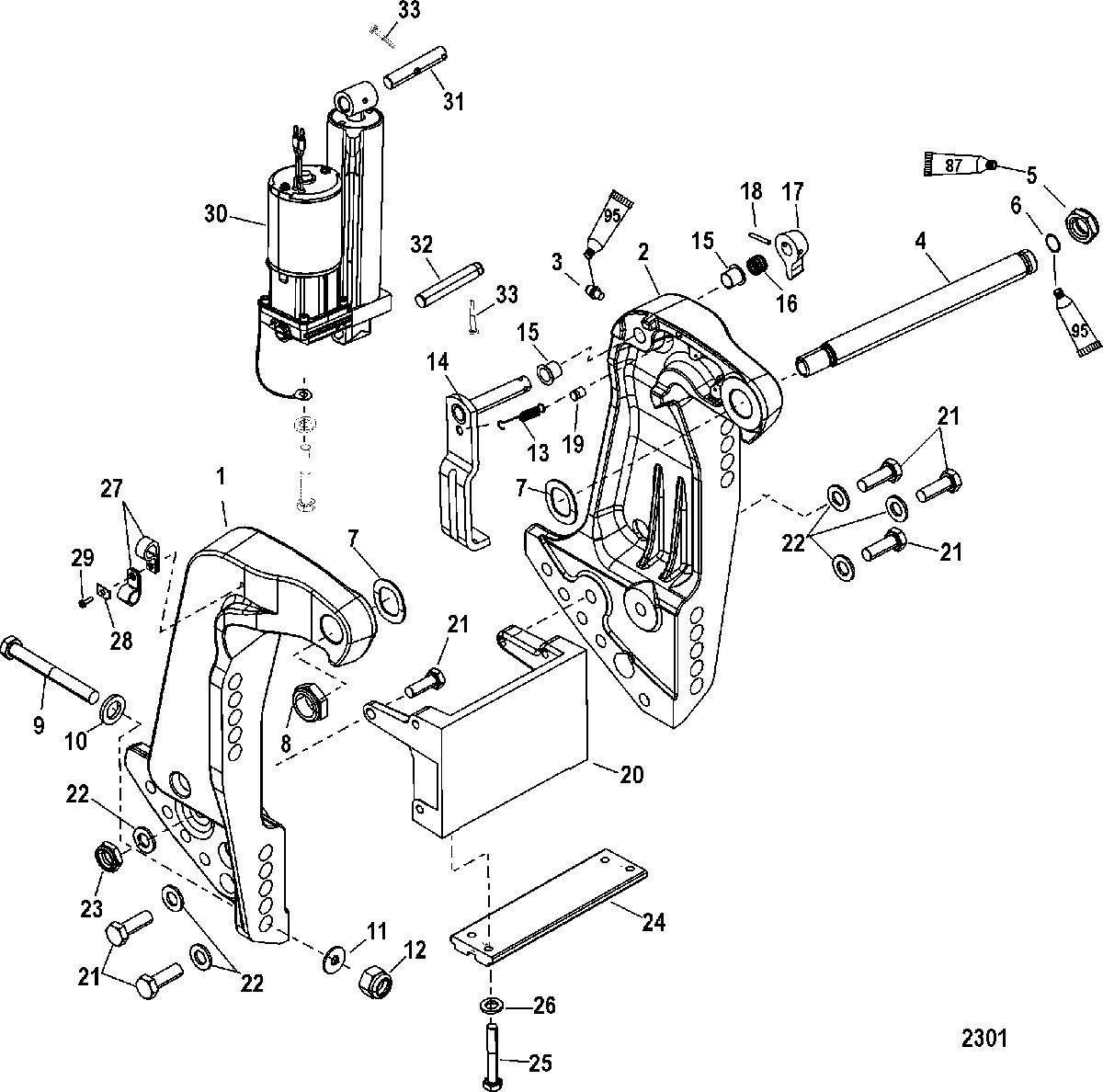

Transom Bracket для Mercury - 125 (4 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • 1
    1400-8M0045064 BRACKET, Transom (Starboard)
    BRACKET, Transom (Starboard)
  • 2
    1400-8M0045064 BRACKET ASSEMBLY, Transom (Port)
    BRACKET ASSEMBLY, Transom (Port)
  • 3
    22-98727 FITTING, Grease (Port)
    FITTING, Grease (Port)
  • 4
    826125A1 TUBE KIT, Tilt
    (Carbon Steel)
    TUBE KIT, Tilt
    (Carbon Steel)
  • 4
    826125A1 TILT TUBE (Stainless Steel)(Saltwater)
    TILT TUBE (Stainless Steel)(Saltwater)
  • 5
    11-82671327 NUT, (1.00-14)
    NUT, (1.00-14)
  • 5
    11-826135 NUT, (1.00-14) Nylon Insert (Stainless Steel)(Saltwater)
    NUT, (1.00-14) Nylon Insert (Stainless Steel)(Saltwater)
  • 6
    25-45711 O-RING, (.612 x .103)
    O-RING, (.612 x .103)
  • 7
    13-88750 WASHER
    WASHER
  • 8
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 8
    11-826164 NUT, (.875-14) (Brass)(Saltwater)
    NUT, (.875-14) (Brass)(Saltwater)
  • 9
    10-677551 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 10
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 11
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 12
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 13
    24-830899 SPRING, Tension
    SPRING, Tension
  • 14
    8M0109798 LEVER ASSEMBLY, Tilt Lock
    LEVER ASSEMBLY, Tilt Lock
  • 15
    23-65830 NYLINER
    NYLINER
  • 16
    24-830900 SPRING, Compression
    SPRING, Compression
  • 17
    99633 KNOB
    KNOB
  • 18
    17-99615 PIN, Groove
    PIN, Groove
  • 19
    17-893709 PIN
    PIN
  • 20
    8M0086406 BRACKET, Anchor
    BRACKET, Anchor
  • 21
    10-858771 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 22
    12-4002319 WASHER
    WASHER
  • 23
    11-40114 NUT, (M10 x 1.5)
    NUT, (M10 x 1.5)
  • 24
    97-818298Q1 ANODE
    ANODE
  • 25
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 26
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 27
    54-22740 CLIP
    CLIP
  • 28
    8M0084613 C WASHER
    C WASHER
  • 29
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 30
    8M0090335 PUMP ASSEMBLY, Power Trim
    (See Power Trim Components section for parts breakdown)
    PUMP ASSEMBLY, Power Trim
    (See Power Trim Components section for parts breakdown)
  • 31
    99625002 SHAFT (Upper)
    SHAFT (Upper)
  • 32
    17-818898 PIN, Anchor
    PIN, Anchor
  • 33
    17-821539 PIN, Trilobe
    PIN, Trilobe
